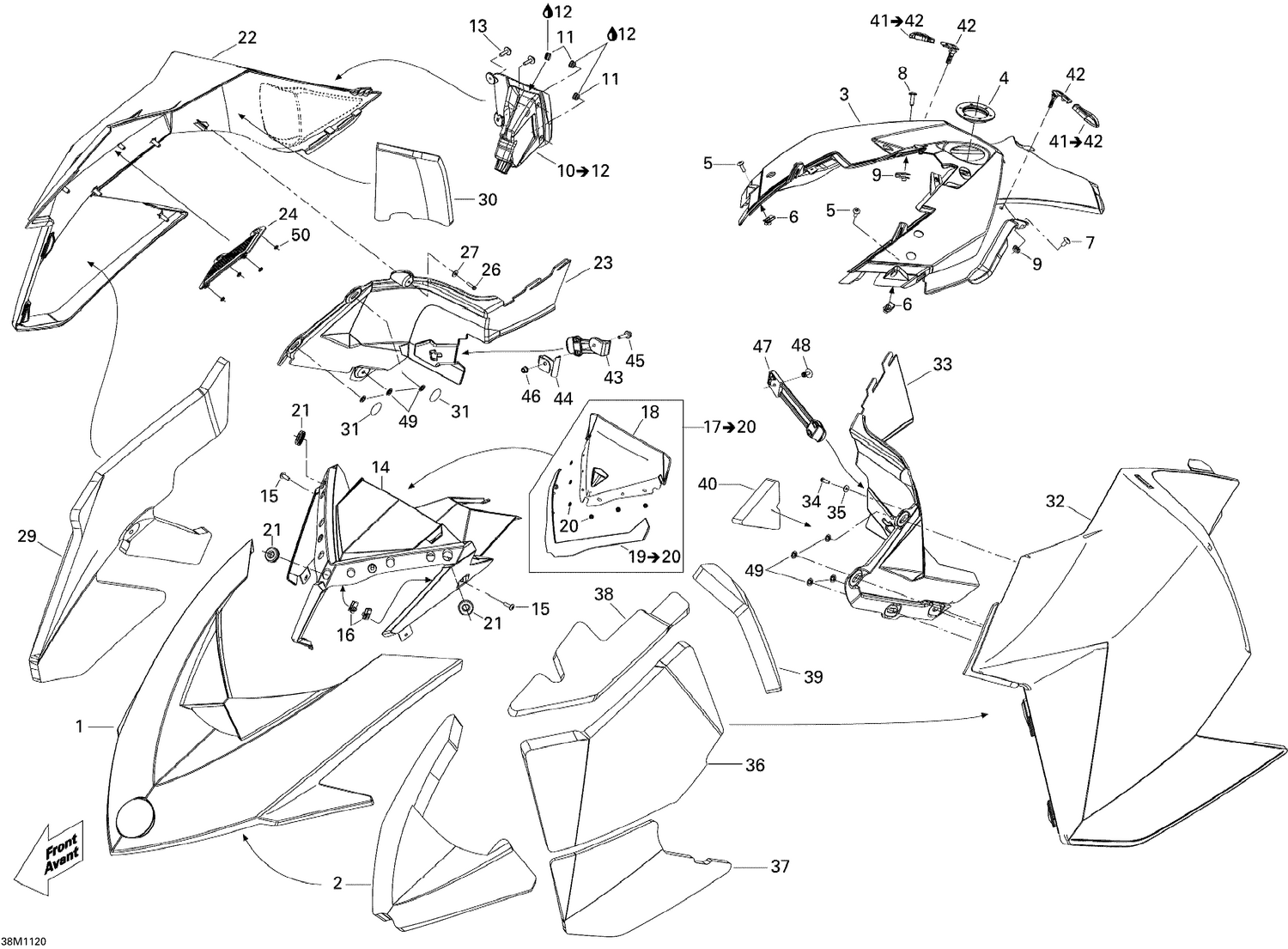

09- Hood
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304530 | Deep Black Hood |
| 2 | 517304913 | Hood Foam This part replaces 517304881. |
| 4 | 517304518 | Console Nut |
| 5 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 6 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 7 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 8 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 9 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 14 | 517304575 | Gauge Support |
| 15 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 16 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 18 | Not | Available As Spare Part - Windshield 285 |
| 20 | 732610072 | Push Nut |
| 21 | 517303756 | Grommet |
| 22 | 517304029 | Deep Black, RH Panel |
| 23 | 517303671 | Deep Black RH Moulding Panel |
| 24 | 517303622 | Grille |
| 26 | 241141660 | Hex. Flange Screw K40 X 16 |
| 27 | 234042600 | Flat Washer 4 mm, Stainless |
| 29 | 517304883 | RH Center Foam |
| 30 | 517304884 | RH Panel Rear Foam |
| 31 | 518325560 | Adhesive Patch |
| 32 | 517304030 | Deep Black, LH Panel |
| 33 | 517303673 | Deep Black, LH Moulding Panel |
| 34 | 241141660 | Hex. Flange Screw K40 X 16 |
| 35 | 234042600 | Flat Washer 4 mm, Stainless |
| 36 | 517304887 | LH Panel Center Foam |
| 37 | 517304888 | LH Panel Lower Foam |
| 38 | 517304889 | LH Panel Upper Foam |
| 39 | 517304890 | LH Panel Rear Foam |
| 40 | 517304891 | Foam |
| 42 | 517303981 | Panel Latch |
| 43 | 517303612 | RH Panel Latch |
| 44 | 517304221 | Latch Support |
| 45 | 207652044 | Hex.Flange Screw M5 X 20 |
| 46 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 47 | 517303808 | LH Panel Latch |
| 48 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 49 | 732610072 | Push Nut |
