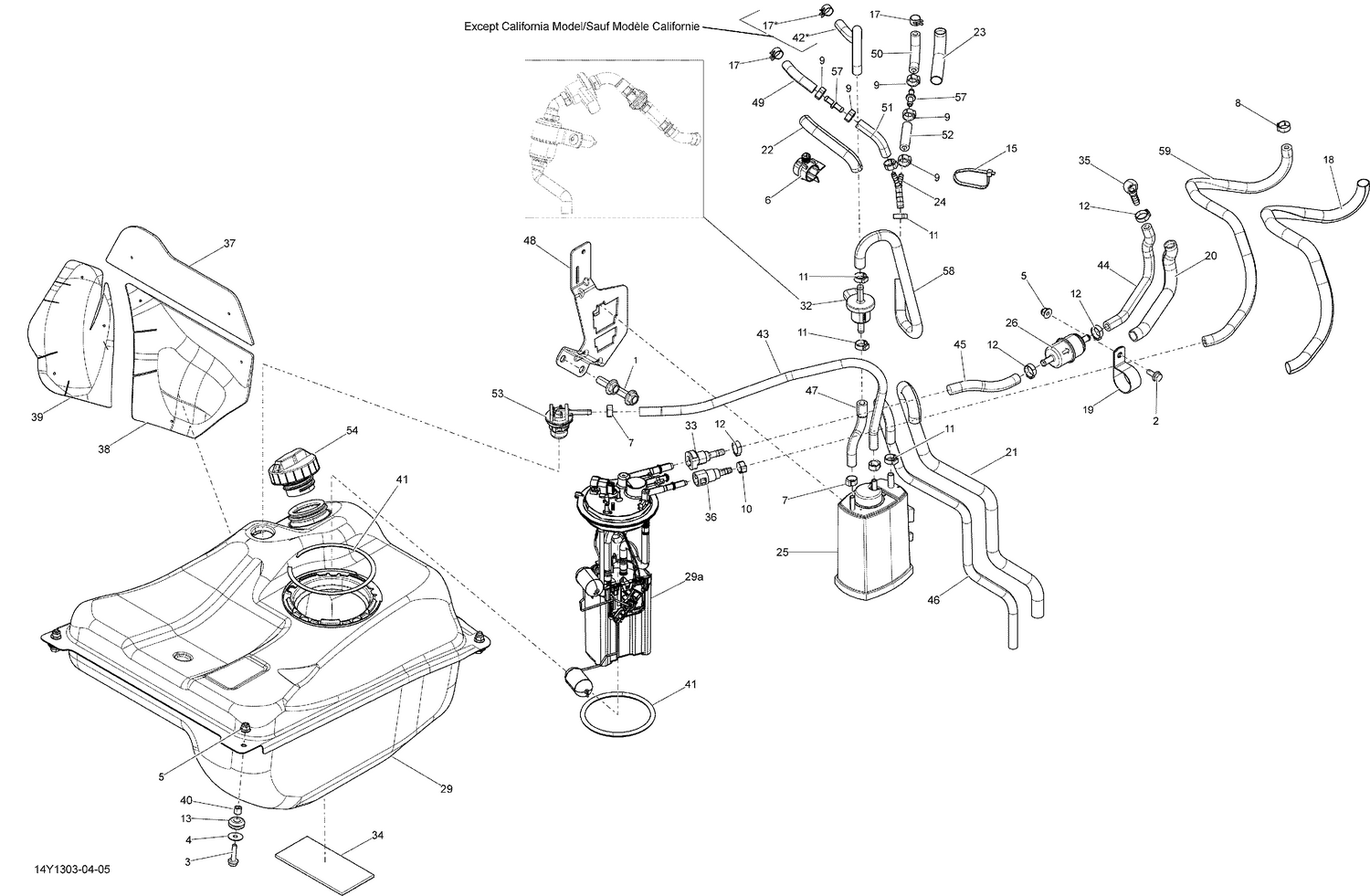

02- Fuel System
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207602544 | Hex. Flange Screw M10 X 25 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3 | 207662544 | Hex. Flange Screw M6 X 25 |
| 4 | 224060201 | Flat Washer |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 275500527 | Cable Retainer |
| 7 | 293650025 | Oetiker Gear Clamp |
| 8 | 293650025 | Oetiker Gear Clamp |
| 9 | 293650025 | Oetiker Gear Clamp |
| 10 | 293650046 | Oetiker Clamp |
| 11 | 293650047 | Crimp Clamp, 15.3-706R |
| 12 | 293650125 | Oetiker Clamp |
| 13 | 709000582 | Grommet This part replaces 293720053. |
| 15 | 293750009 | Tie-Rap 173 mm |
| 17 | 414415200 | Spring Clamp |
| 18 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 19 | 513033047 | Open Clamp |
| 20 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 21 | 513033412 | Tubing |
| 22 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 23 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 24 | 513033672 | Y Connector |
| 25 | 709000090 | Vapor Canister |
| 26 | 513034047 | Fuel Filter This part replaces 709000100. |
| 29 | 709000314 | Fuel Tank |
| 32 | 709000793 | Purge Valve ass'y |
| 33 | 709000125 | Female Quick Fitting Ass'y |
| 34 | 709000130 | Carpet |
| 35 | 709000137 | BANJO FITTING - Call your local BRP dealership |
| 36 | 293710192 | Quick Connect Pipe Fitting This part replaces 709000141. |
| 37 | 709000157 | Reflective Sheet |
| 38 | 709000158 | REFLECTIVE SHEET - Call your local BRP dealership |
| 39 | 709000159 | REFLECTIVE SHEET - Call your local BRP dealership |
| 40 | 709000162 | Bushing |
| 41 | 219800248 | Seal Kit |
| 42 | 709000253 | HOSE - Call your local BRP dealership |
| 43 | 513033565 | Hose |
| 45 | 415129501 | FUEL LINE 6.4 MM, METER - Call your local BRP dealership |
| 46 | 709000277 | Formed Hose |
| 47 | 709000652 | Hose This part replaces 709000365. |
| 48 | 709000384 | FUEL FILTER SUPPORT - Call your local BRP dealership |
| 49 | 513033565 | Hose |
| 50 | 513033565 | Hose |
| 51 | 709000253 | HOSE - Call your local BRP dealership |
| 52 | 513033565 | Hose |
| 53 | 709000413 | Rollover Valve |
| 54 | 709000660 | Fuel Cap This part replaces 709000414. |
| 57 | 709000430 | FITTING_PIPE FLOW RESTRICTOR - Call your local BRP dealership |
| 58 | 709000253 | HOSE - Call your local BRP dealership |
| 59 | 415129501 | FUEL LINE 6.4 MM, METER - Call your local BRP dealership |
