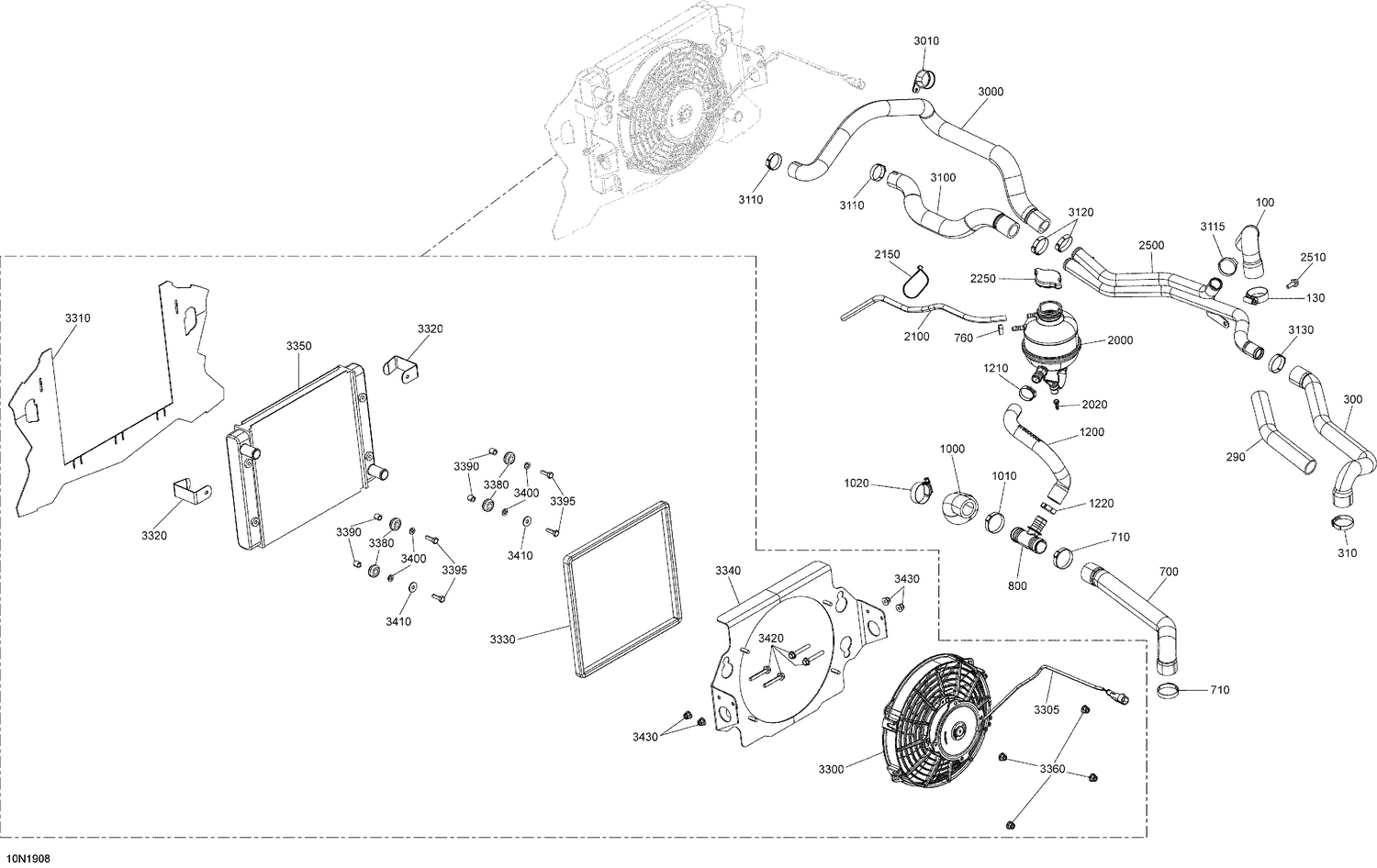

01- Cooling - 600 ACE
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 509000932 | Engine Outlet Hose |
| 130 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 290 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 300 | 509001061 | Hose |
| 310 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 700 | 509001062 | Radiator Return Hose |
| 710 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 760 | 293650025 | Oetiker Gear Clamp |
| 800 | 509000372 | T-Fitting |
| 1000 | 509001060 | Engine Inlet Hose |
| 1010 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 1020 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509001063 | Filling Hose |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 293650099 | Crimp Clamp |
| 2000 | 509000881 | Cooling Tank |
| 2020 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 2100 | 509000775 | Hose |
| 2150 | 414115200 | Tie-Rap 180 mm |
| 2250 | 509000180 | Radiator Pressure Cap |
| 2489 | 710000992 | Clip |
| 2500 | 509000800 | Water Pipe |
| 2510 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 3000 | 509001000 | Air Radiator Hose |
| 3010 | 605627008 | Clamp With Rubber D=30 |
| 3100 | 509001001 | Frint Air Radiator Hose |
| 3110 | 293650099 | Crimp Clamp |
| 3115 | 293650141 | Oetiker Clamp |
| 3120 | 509000735 | Clamp |
| 3130 | 509000735 | Clamp |
| 3300 | 509000838 | Cooling Fan |
| 3310 | 509001002 | Air Deflector |
| 3320 | 509000703 | Deflector Clip |
| 3330 | 509000718 | Insulation |
| 3340a | 250300027 | Clinch Stud M6 X 20 |
| 3350 | 509000980 | Radiator |
| 3360 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3380 | 709000582 | Grommet This part replaces 293720053. |
| 3390 | 605453745 | Bushing |
| 3395 | 250000722 | Torx Screw M6 X 20 |
| 3410 | 234062410 | Flat Washer 6 mm |
| 3420 | 207664044 | Hex. Flange Screw M6 X 40 |
