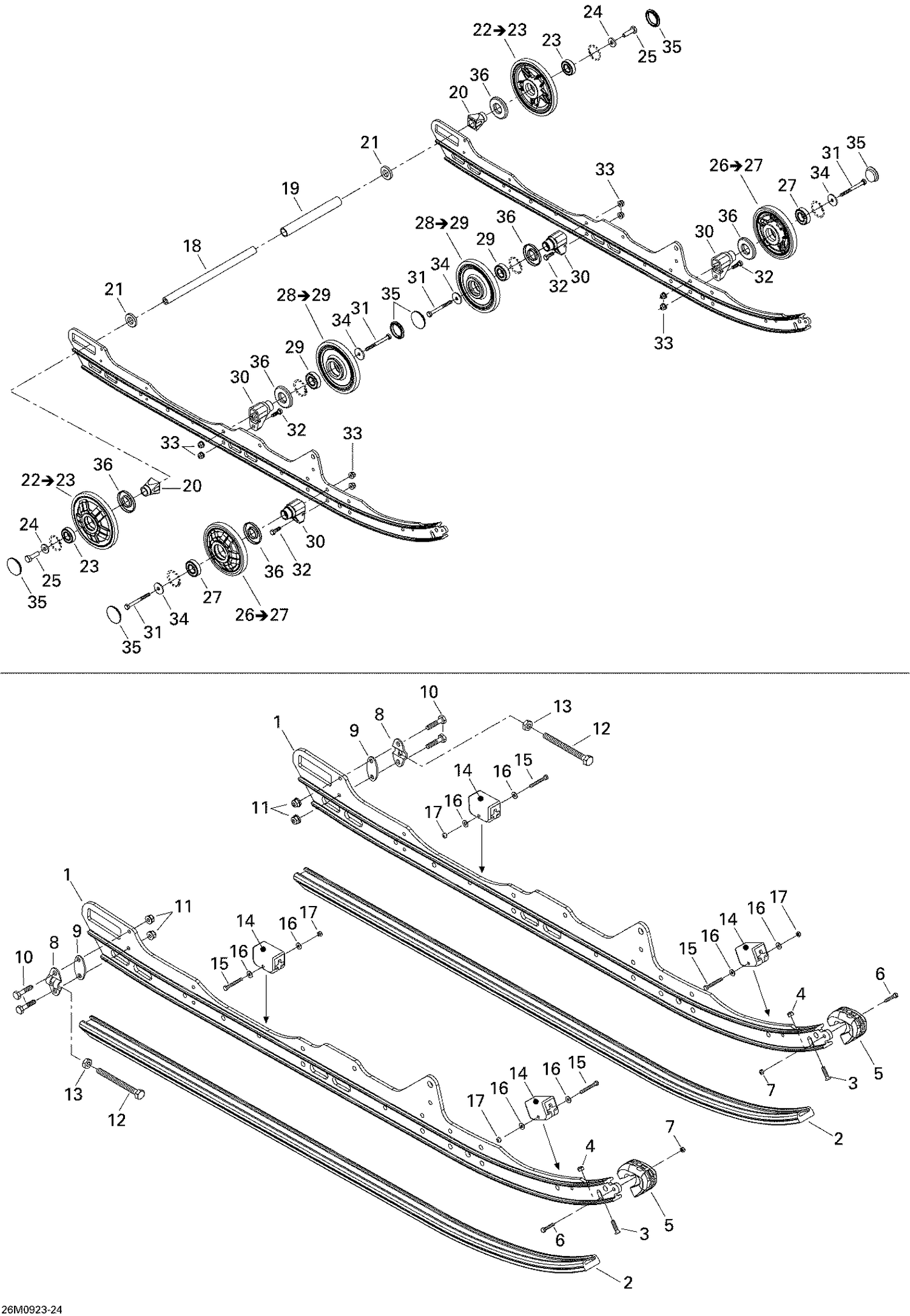

08- Rear Suspension
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503191107 | RAIL_SUSPENSION 136 MACHINED - Call your local BRP dealership |
| 2 | 605355362 | Slide Shoe This part replaces 503189639. |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 572075400 | RUNNER PROTECTOR - Call your local BRP dealership |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 8 | 503155300 | Tensioner |
| 9 | 503189160 | TENSIONER SPACER - Call your local BRP dealership |
| 10 | 207063044 | Hex. Screw M6 X 30 |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 230100044 | HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 13 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 14 | 503190905 | RUBBER STOPPER ASS'Y - Call your local BRP dealership |
| 15 | 207054044 | HEX. SCREW M5 X 40 - Call your local BRP dealership |
| 16 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 17 | 232551414 | Elastic Stop Nut M5 |
| 18 | 503190429 | Rear Axle |
| 19 | 503191108 | Spacer |
| 20 | 503190428 | Rear Wheel Spacer |
| 21 | 503190432 | Washer |
| 23 | 503190396 | Ball Bearing |
| 24 | 503190439 | Washer |
| 25 | 250000019 | Hex. Screw With Nylon |
| 27 | 503190396 | Ball Bearing |
| 29 | 503190396 | Ball Bearing |
| 30 | 503190580 | Support |
| 31 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 32 | 207182544 | Hex. Screw M8 X 25 |
| 33 | 233281414 | Hex. Flange Elastic Nut M8 |
| 34 | 211200041 | Washer |
| 35 | 570063600 | Wheel Cap |
