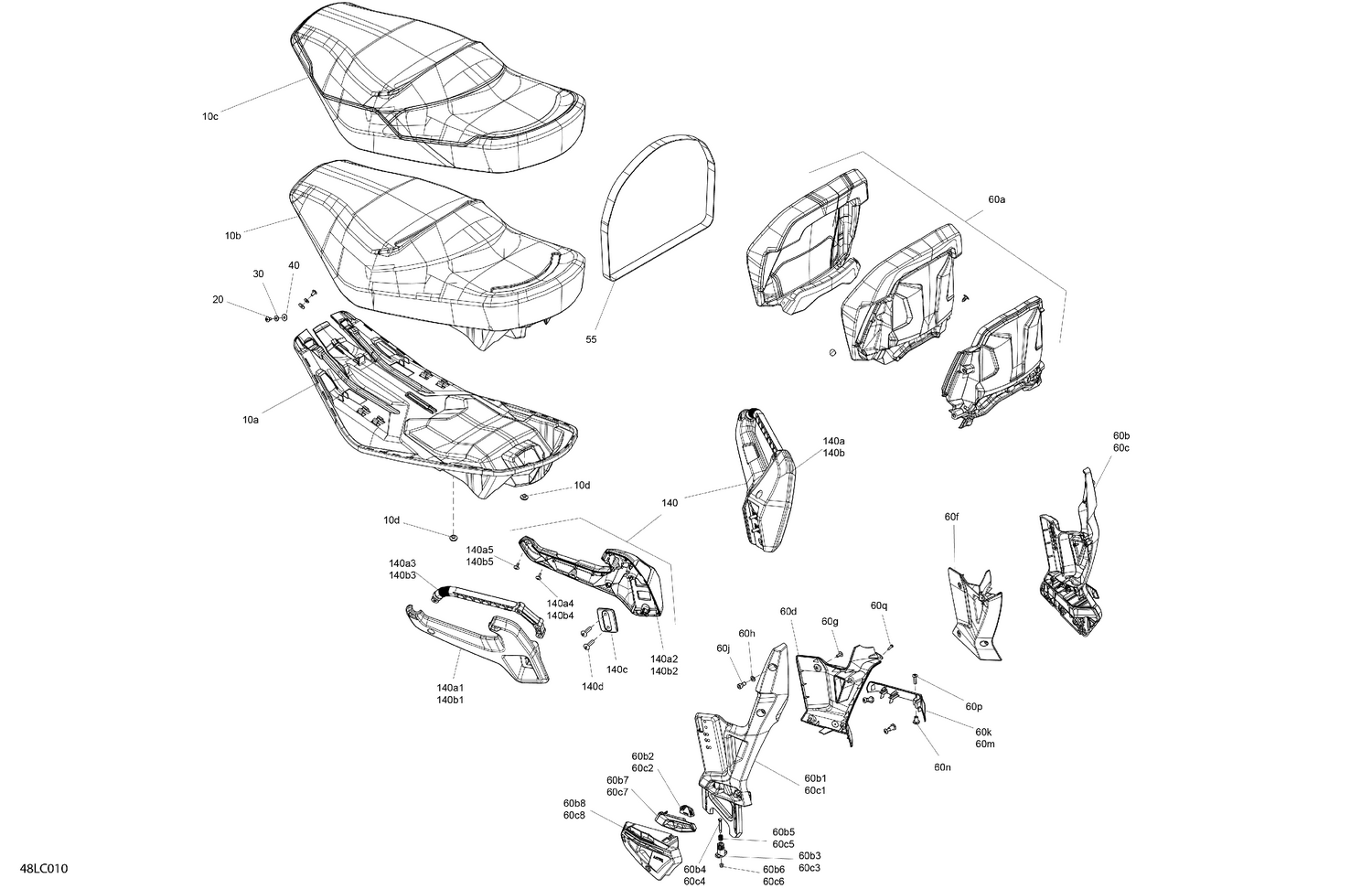

07- Body - Seat
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006558 | Seat Base |
| 10b | 510006559 | Seat Foam |
| 10c | 510006901 | Seat Cover |
| 10d | 605452114 | Plug |
| 20 | 250000767 | Torx Truss Screw M6 X 12 |
| 30 | 250200039 | Flat Washer |
| 40 | 250200200 | Flat Washer 6 MM |
| 60a | 510006904 | Foam And Upholstery Ass'y |
| 60b1 | 510007210 | LH Backrest Support |
| 60b2 | 708200373 | LH Lever |
| 60b3 | 708200266 | LH Latch |
| 60b4 | 708200152 | STEM - Call your local BRP dealership |
| 60b5 | 708200263 | Spring |
| 60b6 | 233251494 | Elastic Flanged Nut M5 |
| 60b7 | 510005617 | LH Cap |
| 60b8 | 510006939 | LH Base |
| 60c1 | 510007212 | RH Backrest Support |
| 60c2 | 708200374 | RH Lever |
| 60c3 | 708200267 | RH Latch |
| 60c4 | 708200152 | STEM - Call your local BRP dealership |
| 60c5 | 708200263 | Spring |
| 60c6 | 233251494 | Elastic Flanged Nut M5 |
| 60c7 | 510005618 | RH Cap |
| 60c8 | 510006940 | RH Base |
| 60d | 510006704 | LH Trim |
| 60f | 510006705 | RH Trim |
| 60g | 250000789 | Torx Truss M6X14 |
| 60h | 234080600 | Flat Washer M8, Stainless |
| 60j | 205081654 | Screw-Socket HD.DIN.912 |
| 60k | 510006169 | LH Base Cover |
| 60m | 510006170 | RH Base Cover |
| 60n | 511000822 | Insert |
| 60p | 250001000 | Torx-Truss M/S M6 X 25 |
| 60q | 250000068 | Hex. Tapping Screw #8 X 5/8 |
| 140a1 | 510006492 | LH Ext. Passenger Hand Hold |
| 140a2 | 510006517 | LH Int. Passenger Hand Hold |
| 140a3 | 510006551 | Overmolded Passenger Handhold |
| 140a4 | 250000889 | Screw M4 X 16 |
| 140a5 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140b1 | 510006486 | RH Ext. Passenger Hand Hold |
| 140b2 | 510006487 | RH Int. Passenger Hand Hold |
| 140b3 | 510006551 | Overmolded Passenger Handhold |
| 140b4 | 250000889 | Screw M4 X 16 |
| 140b5 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140c | 510006602 | Passenger Handle Trim |
| 140d | 250000753 | Torx Truss M/S M8 x 35 |
