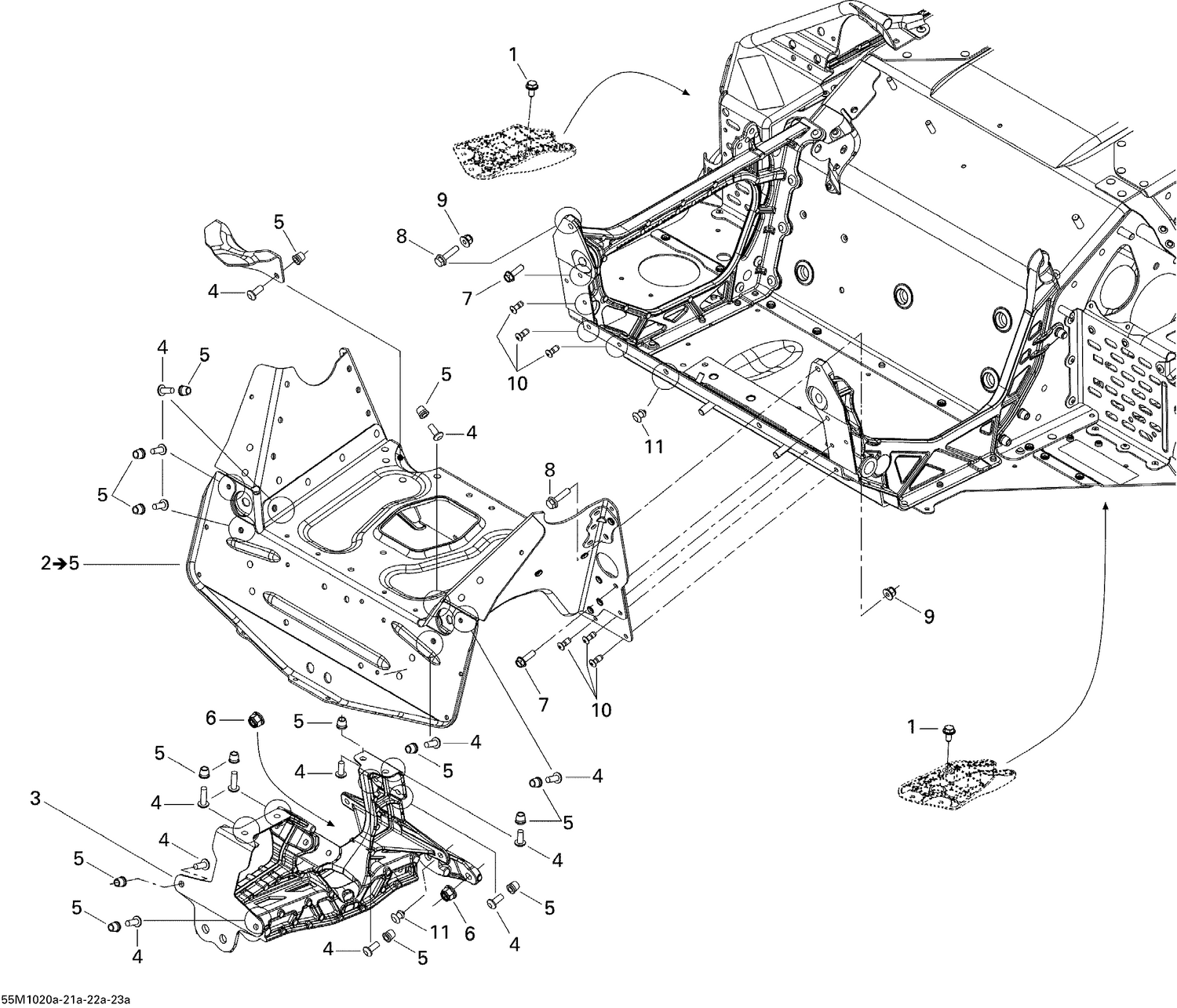

| Ref | Part Number | Description |
|---|
| 1 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 2 |
518327737 |
CROSS MEMBER S MODULE - Call your local BRP dealership This part replaces 518325567. |
| 3 |
518327487 |
Front Suspension Support This part replaces 518325925. |
| 4 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 5 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 6 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 7 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 8 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 10 |
293150179 |
MONOBOLT RIVET 4.8 - Call your local BRP dealership This part replaces 293150175. |
