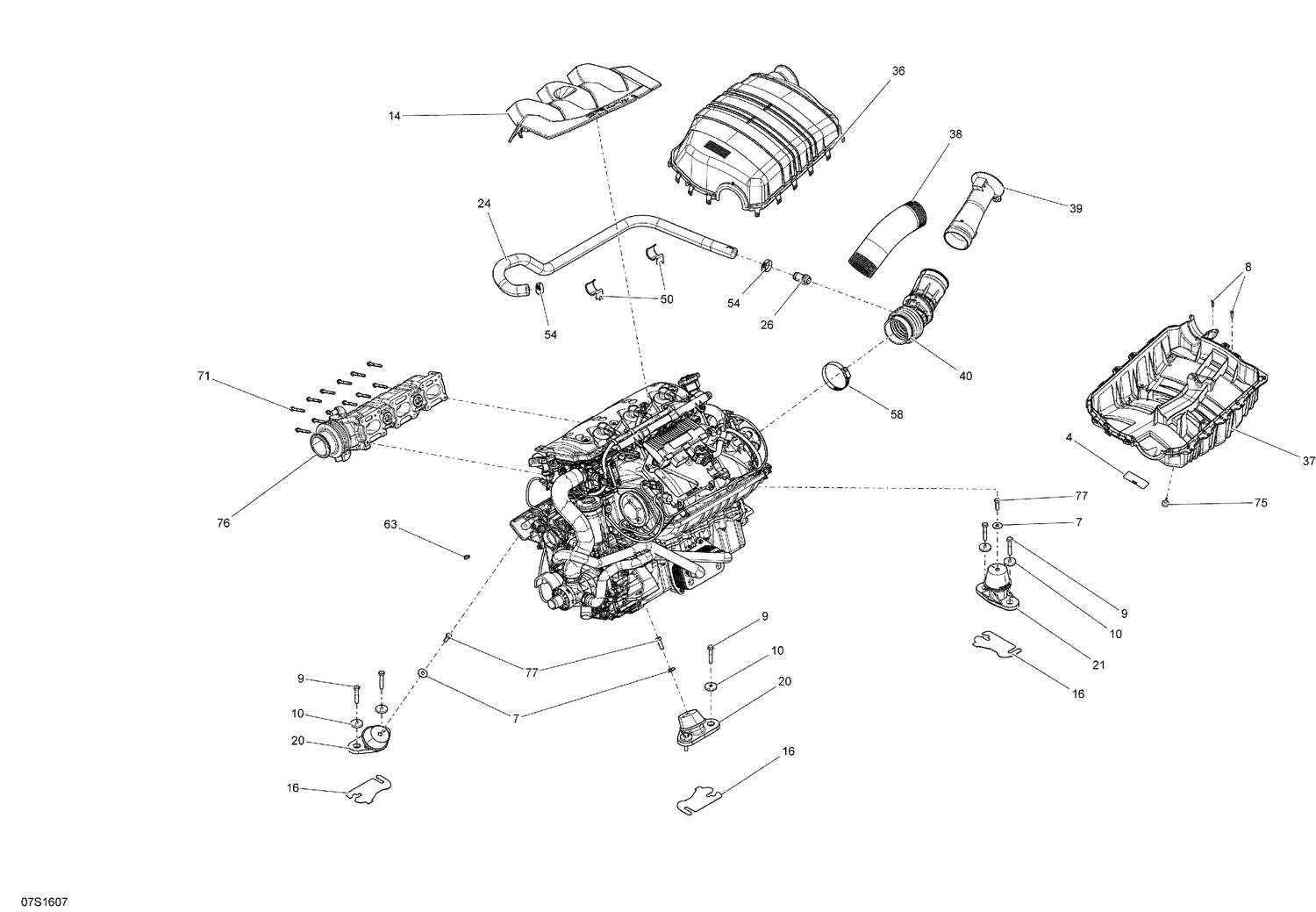

01- Engine
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 219903177 | Air Silencer Notice Decal |
| 7 | 234082600 | Flat Washer 8 mm, Stainless |
| 8 | 250000287 | Flange Torx Screw K40 X 16 |
| 9 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 10 | 250200018 | Cone Washer |
| 14 | 270000999 | COVER - Call your local BRP dealership |
| 16 | 270000762 | Shim 1.3 mm |
| 20 | 270001081 | Engine Support Ass'y This part replaces 270000882. |
| 21 | 270001096 | Engine Support Ass'y This part replaces 270000885. |
| 24 | 270000949 | Formed Hose |
| 26 | 273000234 | Breather Valve |
| 36 | 273000371 | Airbox Cover |
| 37 | 273000354 | Airbox Base |
| 38 | 273000290 | Air Silencer Hose |
| 39 | 273000358 | Intake Hose |
| 40 | 273000292 | Hose Connector |
| 50 | 275500664 | Retainer |
| 54 | 293650051 | Tridon Gear Clamp |
| 58 | 293650179 | Tridon Clamp |
| 63 | 293750002 | Tie Wrap 142 mm |
| 71 | 420641198 | Torx Flange Screw M6 X 45 |
| 75 | 708000759 | Rubber Stopper |
| 76 | 296000422 | Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001553. |
