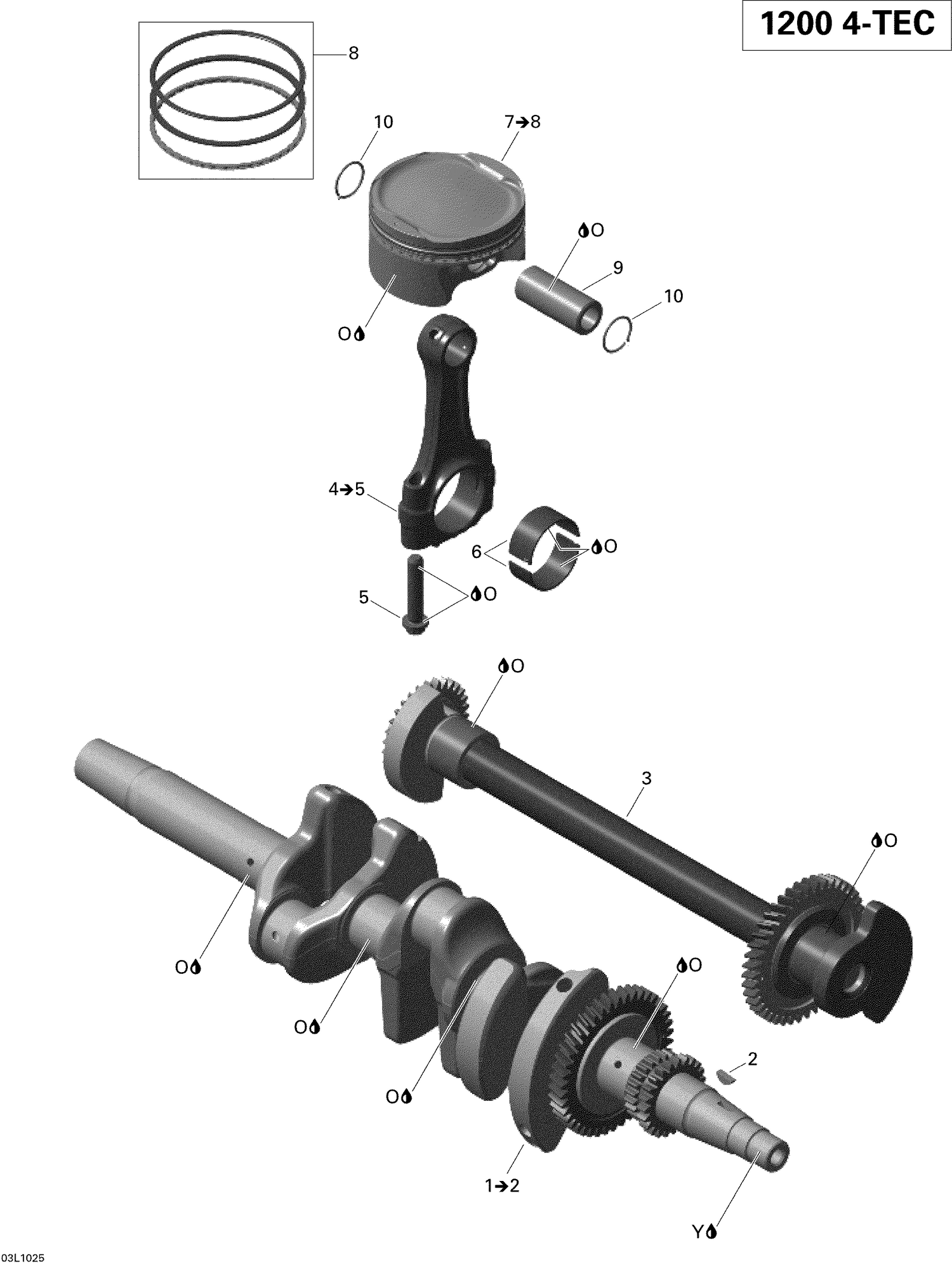

01- Crankshaft And Pistons
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| O | 293600112 | SYNTHETIC OIL 4T 12X1 L. - Call your local BRP dealership |
| 2 | 420246570 | Woodruff Key 4 X 5 |
| 3 | 420820053 | Balance Shaft This part replaces 420820057. |
| 5 | 420641475 | Connecting Rod Screw M9 X 1 |
| 6 | 420933842 | Plain Bearing |
| 8 | 420296774 | Piston Ring Set |
| 9 | 420216274 | Piston Pin |
| 10 | 420245436 | Piston Circlip |
