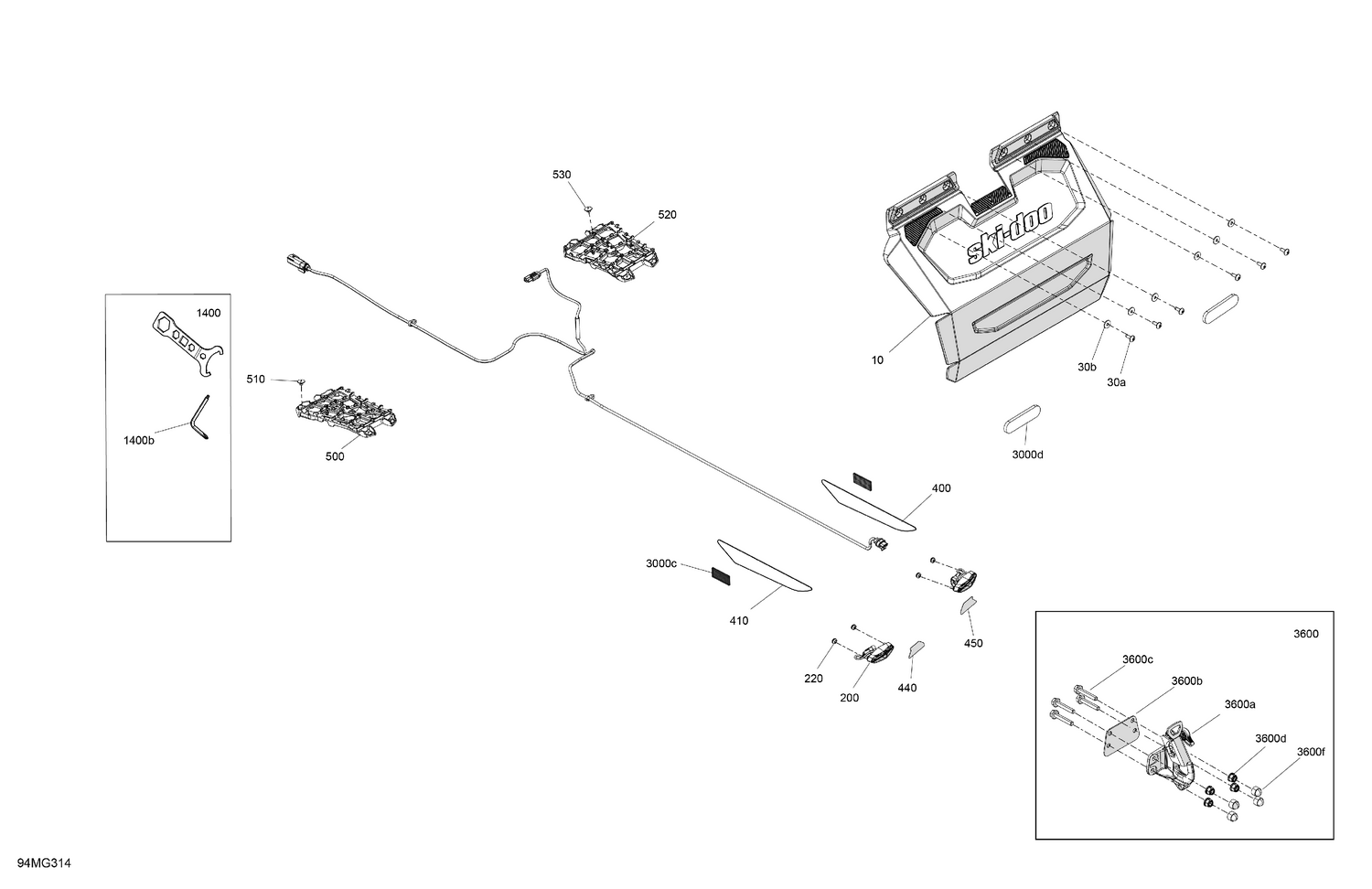

09- Miscellaneous - Utilities
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002048 | Snow Guard 24" |
| 30a | 250000676 | Forming Screw M5 x 16 |
| 30b | 250200025 | Washer M5 |
| 200 | 520003071 | Taillight |
| 220 | 293720101 | Grommet |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 440 | 520001740 | LH Rear Red Reflector |
| 450 | 520002016 | RH Rear Red Reflector |
| 500 | 520003338 | Passenger Footrest |
| 510 | 293150322 | Black, Rivet Ornit 4.8 X 12 |
| 520 | 520003338 | Passenger Footrest |
| 530 | 293150322 | Black, Rivet Ornit 4.8 X 12 |
| 1400b | 520001815 | Key |
| 3000c | 705015551 | Red, Reflector |
| 3000d | 520000271 | Amber, Reflector |
| 3600a | 520001826 | Hitch Ass'y |
| 3600b | 511001560 | RH Chassis Reinforcement |
| 3600c | 207684544 | Hex. Flange Screw M8 X 45 |
| 3600d | 233281414 | Hex. Flange Elastic Nut M8 |
