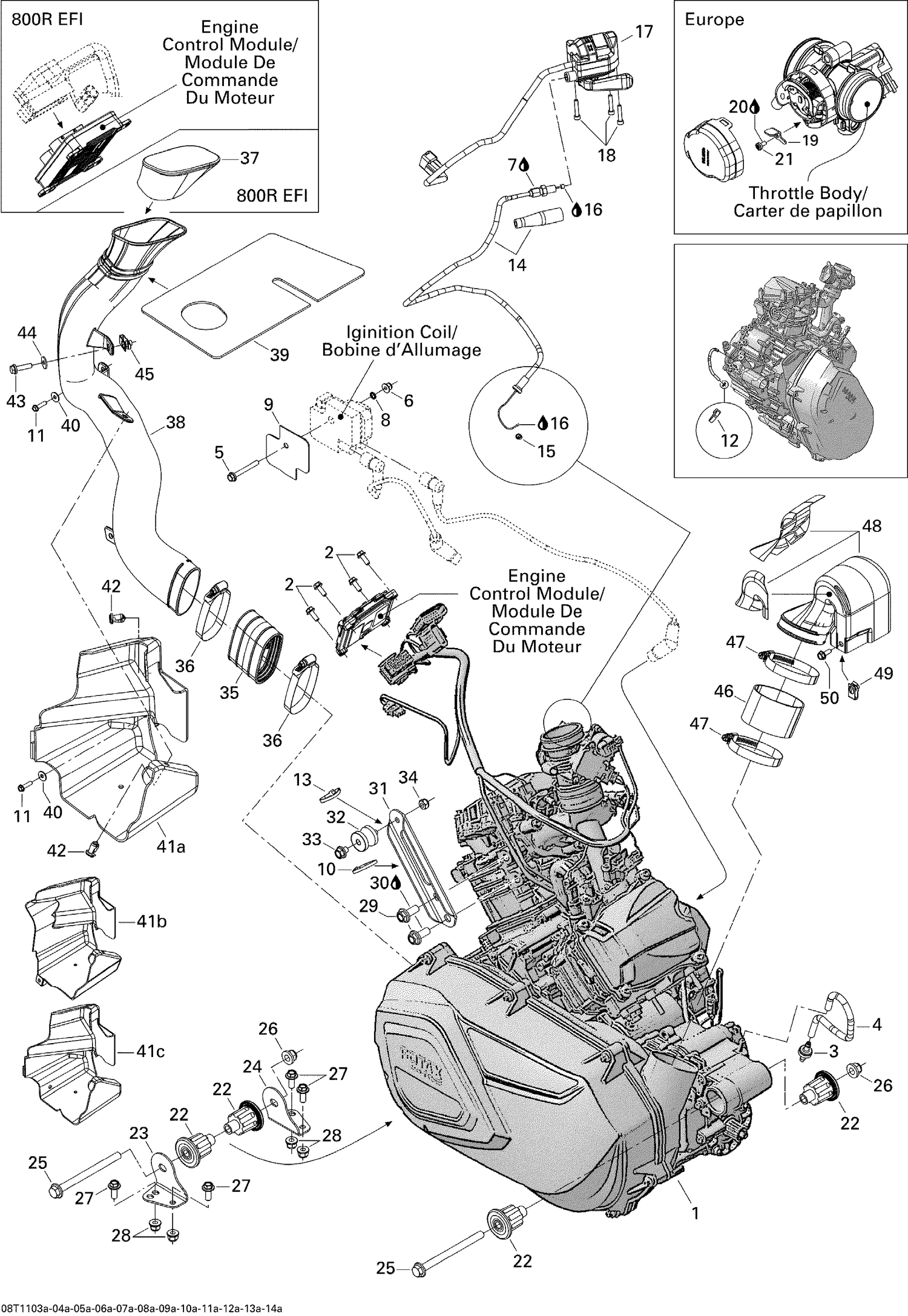

| Ref | Part Number | Description |
|---|
| 1 |
420081068 |
LONG BLOCK, 800R EFI - Call your local BRP dealership This part replaces 420081066. |
| 1 |
421000704 |
REBUILD-BLOCK LONG 810 - Call your local BRP dealership |
| 2 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 3 |
275500398 |
Check Valve |
| 4 |
219704360 |
Hose 6 Mm 15000Mm Long |
| 5 |
207665044 |
Hex. Flange Screw M6 X 50 |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 8 |
234461608 |
External Serrated Lock Washer 6 mm |
| 9 |
710000073 |
Insulator Pad |
| 10 |
414115200 |
Tie-Rap 180 mm |
| 11 |
250000992 |
Screw-Forming Hex.Hd.Fl.Bzn M5 X 20 This part replaces 210252040. |
| 12 |
293750002 |
Tie Wrap 142 mm |
| 13 |
414115200 |
Tie-Rap 180 mm |
| 14 |
707000393 |
Throttle Cable |
| 15 |
707000434 |
Cable Guide |
| 16 |
293600041 |
CABLE LUBRICANT, 400 G - Call your local BRP dealership |
| 17 |
707000595 |
Throttle Handle |
| 18 |
205052588 |
Socket Head Screw M5 X 25 |
| 22 |
707001169 |
Vibration Damper This part replaces 707000426. |
| 23 |
707000802 |
ENGINE BRACKET - Call your local BRP dealership |
| 24 |
707000803 |
ENGINE BRACKET - Call your local BRP dealership |
| 25 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 26 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 27 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 28 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 29 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 30 |
293800060 |
Loctite 243, 10 ml |
| 31 |
707000883 |
UPPER ENGINE BRACKET, BLACK - Call your local BRP dealership |
| 32 |
707000949 |
Rubber Isolator This part replaces 274000839. |
| 33 |
207581046 |
Flange Screw M8 x 10, Scotch Grip |
| 34 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 35 |
707002585 |
Flexibale Adaptor This part replaces 707000719. |
| 36 |
293650091 |
Norma Clamp |
| 37 |
707001786 |
CVT Filter This part replaces 707000776. |
| 38 |
707000777 |
AIR INLET - Call your local BRP dealership |
| 39 |
707000778 |
WATER DEFLECTOR - Call your local BRP dealership |
| 40 |
234052600 |
Flat Washer 5 mm, Stainless |
| 41a |
707000779 |
WATER DEFLECTOR - Call your local BRP dealership |
| 41b |
XXX |
Not Available As Spare Parts |
| 41c |
XXX |
Not Available As Spare Parts |
| 42 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 43 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 44 |
234062600 |
Flat Washer M6, Stainless |
| 45 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 46 |
707000789 |
Adaptor |
| 47 |
293650118 |
Norma Gear Clamp This part replaces 514052859. |
| 48 |
707000459 |
AIR OUTLET ASS'Y - Call your local BRP dealership |
| 49 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
