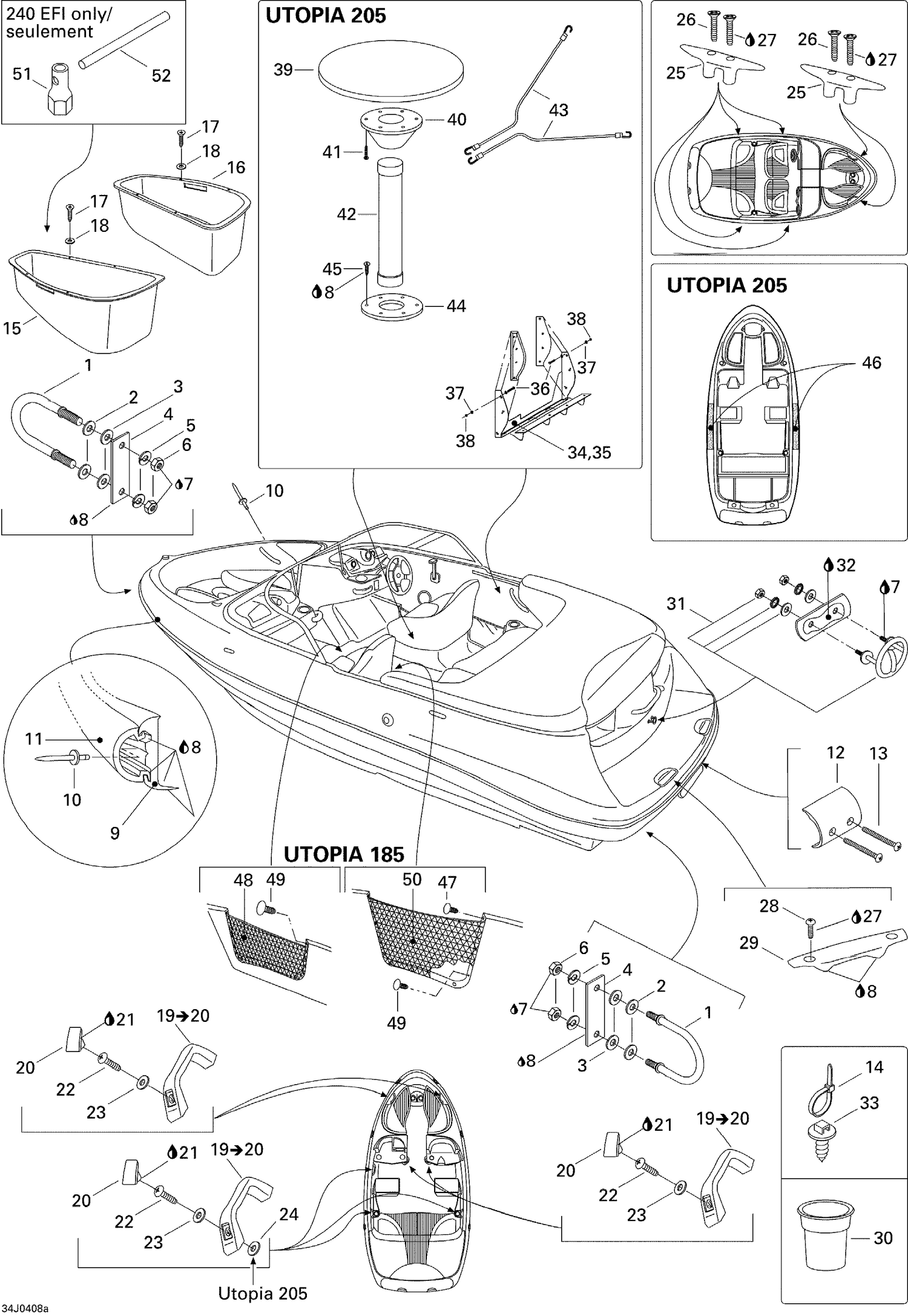

| Ref | Part Number | Description |
|---|
| 1 |
292000063 |
U-CLAMP - Call your local BRP dealership |
| 2 |
293050001 |
Flat Washer M8.5 x 18 |
| 3 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 4 |
291000307 |
RETAINING PLATE - Call your local BRP dealership |
| 5 |
234181601 |
Lock Washer 8 mm, Stainless |
| 6 |
232081600 |
Hex. Nut M8 |
| 7 |
293800005 |
Loctite 271, 10 ml |
| 8 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 10 |
293150013 |
Pop Rivet 3/16" |
| 12 |
204050031 |
BUMPER COVER, BLACK - Call your local BRP dealership |
| 13 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 14 |
414115200 |
Tie-Rap 180 mm |
| 15 |
204071773 |
Storage Tray, Port Side |
| 16 |
204071774 |
Storage Tray, Starboard |
| 17 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 18 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 20 |
204071195 |
Snap Cap |
| 22 |
205963060 |
SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 23 |
234061600 |
Stainless Flat Washer M6 |
| 25 |
204070592 |
CLEAT - Call your local BRP dealership |
| 26 |
204100144 |
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership |
| 27 |
293800060 |
Loctite 243, 10 ml |
| 28 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 29 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 30 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 31 |
204070206 |
Ski Tow Hook |
| 32 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 33 |
293730040 |
Mount Dart This part replaces 293730018. |
