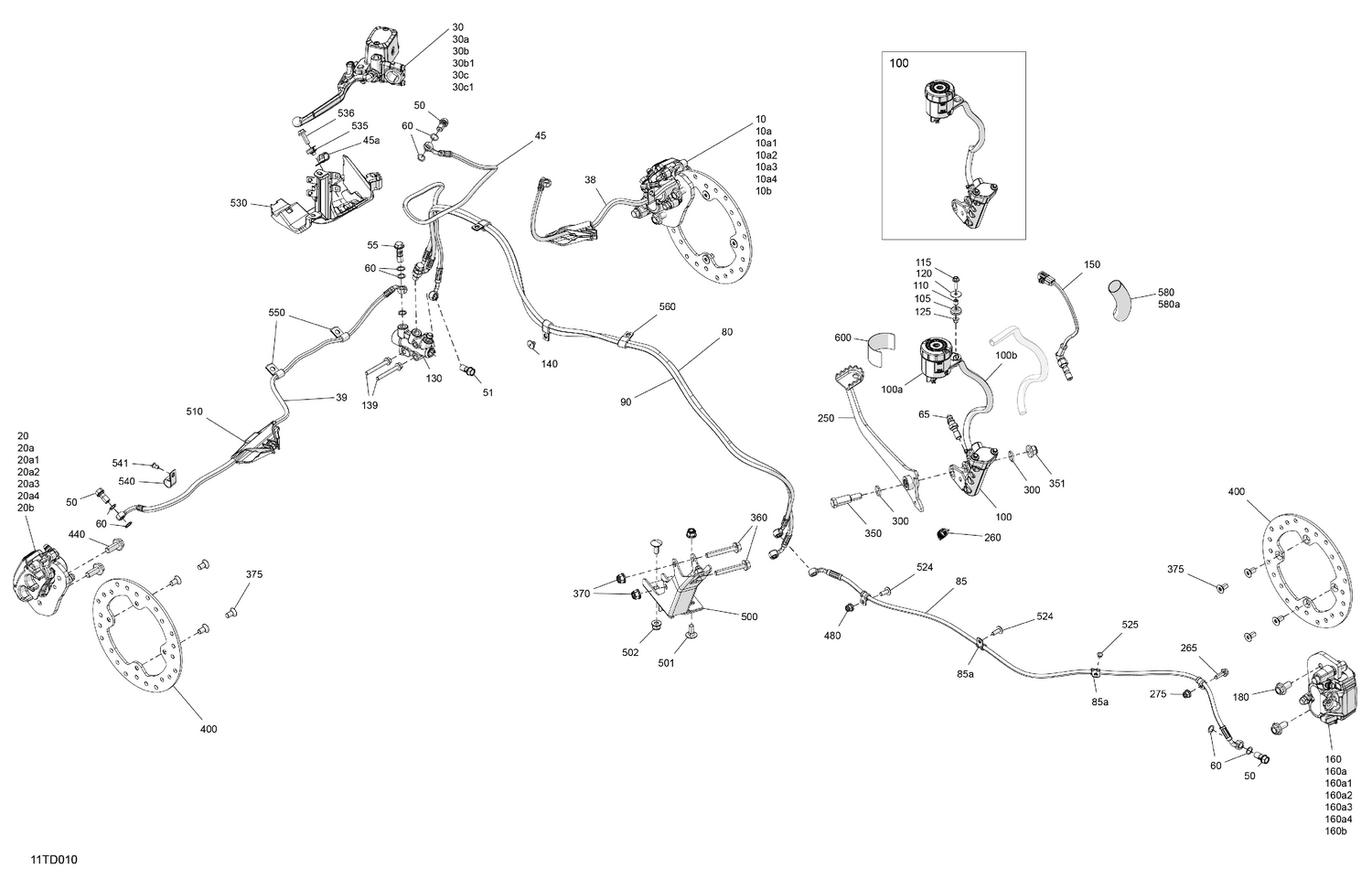

03- Mechanic - Brake System
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 705601014 | RH Organic Brake Pad Kit |
| 10a2 | 705601016 | Pin Set |
| 10a3 | 705601017 | Bleeding Screw |
| 10a4 | 705601018 | Retaining Spring |
| 10b | 715900249 | RH Metallic Brake Pad Kit |
| 20a1 | 705601016 | Pin Set |
| 20a2 | 705601017 | Bleeding Screw |
| 20a3 | 705601018 | Retaining Spring |
| 20a4 | 705601015 | LH Organic Brake Pad Kit |
| 20b | 715900248 | LH Metallic Brake Pad Kit |
| 30a | 705601013 | Lever Set |
| 30b1 | 250000447 | Hex. Flange Screw M6 X 25 |
| 30c1 | 415129356 | Screw M4 X 20 |
| 38 | 705601690 | RH Brake Line |
| 39 | 705601692 | LH Brake Line |
| 45a | 293650256 | Clamp |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 51 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 55 | 705601723 | Double Banjo Bolt |
| 60 | 414920600 | Washer |
| 65 | 705601051 | Bleeding Screw |
| 80 | 705601518 | Outlet Hose, Master Cylinder |
| 85a | 293650256 | Clamp |
| 90 | 705600973 | Inlet Hose, Master Cylinder |
| 100a | 705601020 | Oil Tank |
| 100b | 705601019 | Oil Housing Hose |
| 105 | 414036300 | Grommet |
| 110 | 293900112 | Bushing |
| 115 | 207652044 | Hex.Flange Screw M5 X 20 |
| 120 | 224060201 | Flat Washer |
| 125 | 233251434 | Flange Elastic Nut M5 |
| 130 | 705600994 | Splitter |
| 139 | 210265040 | Hex. Flange Screw M6 X 50 |
| 140 | 390406500 | Pop Rivet 3/16" |
| 150 | 705601251 | Brake Switch |
| 160a1 | 705601016 | Pin Set |
| 160a2 | 705601017 | Bleeding Screw |
| 160a3 | 705601018 | Retaining Spring |
| 160a4 | 705601014 | RH Organic Brake Pad Kit |
| 160b | 715900249 | RH Metallic Brake Pad Kit |
| 180 | 207502046 | Hex. Flange Screw M10 X 20 |
| 250 | 705602163 | Deep Black, Brake Pedal |
| 260 | 705600792 | Brake Pedal Spring |
| 265 | 207662044 | Hex. Flange Screw M6 X 20 |
| 275 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 300 | 293300144 | O-Ring |
| 350 | 250000513 | Shoulder Screw M10 |
| 351 | 233201436 | Hex. Flange Elastic Nut M10 |
| 360 | 207685544 | Hex. Flange Screw M8 X 55 |
| 370 | 233281414 | Hex. Flange Elastic Nut M8 |
| 375 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 400 | 705601997 | Disc Brake |
| 440 | 207502546 | Hex. Flange Screw M10 X 25 |
| 480 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 500 | 705202000 | Brake Pedal Bracket |
| 501 | 207782044 | Carriage Bolt, M8 X 20 |
| 502 | 233281414 | Hex. Flange Elastic Nut M8 |
| 510 | 705602016 | Front Hose Guard |
| 524 | 250000755 | Torx Screw M6 X 16 |
| 525 | 390402400 | Pop Rivet 3/16" |
| 530 | 705600983 | Front Hose Bracket |
| 535 | 250100198 | Panel Nut M6 X 1.0 |
| 536 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 540 | 518321570 | Open Clamp |
| 541 | 390402300 | Pop Rivet 3/16" |
| 550 | 293650219 | Clamp |
| 560 | 293650220 | Clamp |
| 580a | 219704402 | Tubing 25 MM 1000MM Long |
