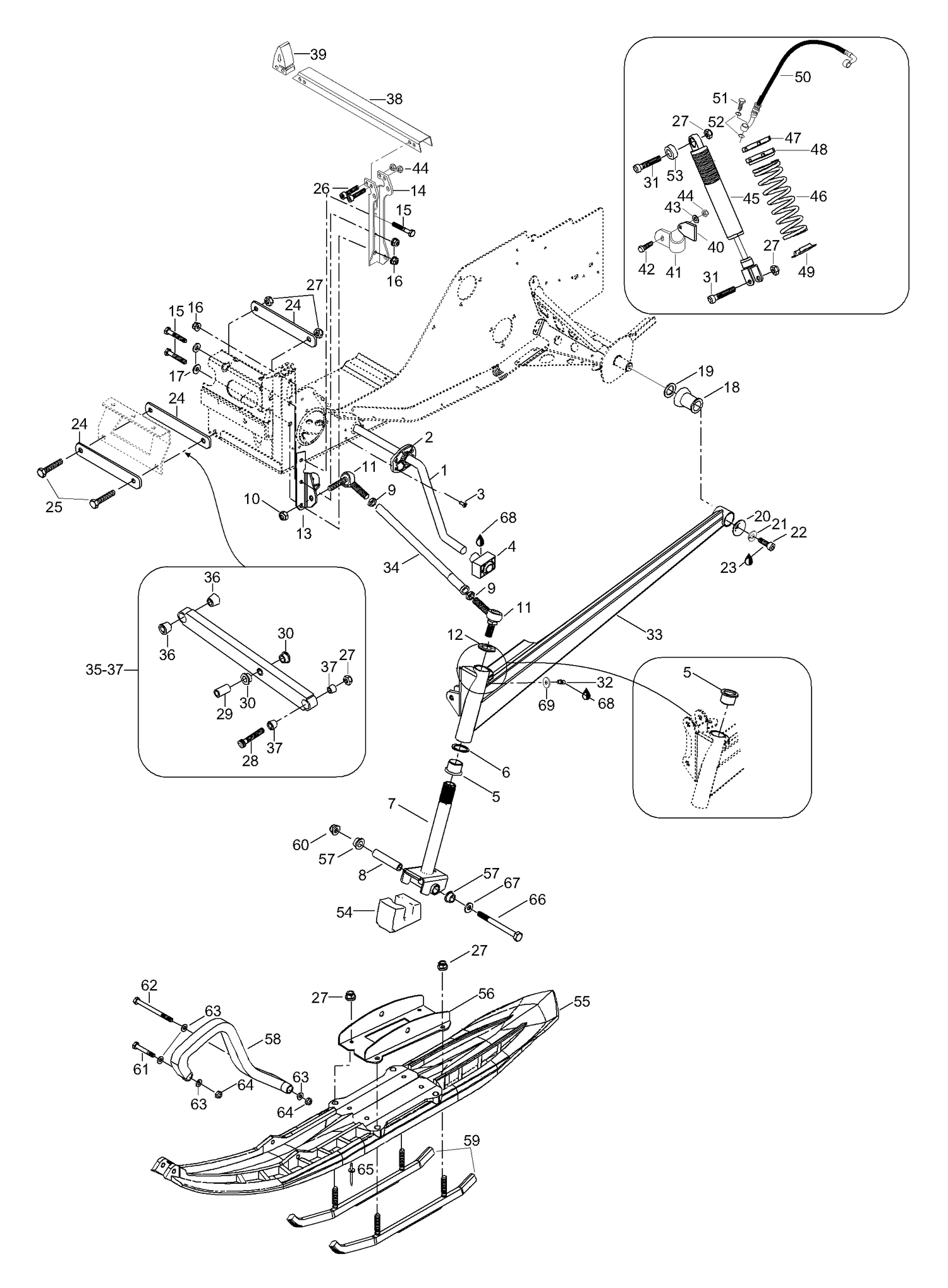

08- Front Suspension
Parts (70)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5246797 | Sway bar |
| 2 | 505070191 | Sleeve |
| 3 | 36087 | Rivet |
| 4 | 505070117 | BALL JOINT BLOCK - Call your local BRP dealership |
| 5 | 505070003 | Bushing |
| 6 | 505070004 | WASHER - Call your local BRP dealership |
| 7 | 605248927 | Ski leg |
| 8 | 506133300 | Spacer |
| 9 | 33048 | Jam nut M12 |
| 10 | 33087 | Jam nut elastic M12 |
| 11 | 31092 | Ball joint |
| 12 | 20074 | Lock washer |
| 13 | 5348063 | L.H. Upper arm bracket |
| 13 | 5348064 | R.H. Upper arm bracket |
| 14 | 5245488 | Shock bracket |
| 14 | 5246395 | Shock bracket |
| 15 | 40010 | Screw M8 x 55 |
| 16 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 17 | 234081410 | Flat Washer 8 mm This part replaces 20104. |
| 18 | 570062200 | DAMPER - Call your local BRP dealership |
| 19 | 503146700 | WASHER - Call your local BRP dealership |
| 20 | 506079600 | CUP - Call your local BRP dealership |
| 21 | 20014 | Spring washer |
| 22 | 40289 | Allen screw M8 x 25 |
| 23 | 293800060 | Loctite 243, 10ml |
| 24 | 5346112 | Support plate |
| 25 | 40814 | Screw M10 x110 |
| 26 | 40345 | Allen screw M6 x 40 |
| 27 | 33012 | Nut elastic M10 |
| 28 | 40136 | Allen screw M10 x 50 (1=10pcs) - Call your local BRP dealership |
| 29 | 5441433 | Bushing |
| 30 | 31088 | Bearing |
| 31 | 40837 | Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership |
| 32 | 34011 | Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 33 | 605248969 | L.H. swing arm, full moon |
| 33 | 605248970 | R.H. swing arm, full moon |
| 34 | 5346122 | Upper arm |
| 36 | 5447769 | Inner sleeve |
| 37 | 5447770 | Outer sleeve |
| 38 | 5348107 | Bracket |
| 39 | 5348087 | Rubber damper |
| 40 | 5448228 | Bracket |
| 41 | 5446702 | Bracket |
| 42 | 40846 | Lock screw M6 x 16 |
| 43 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 44 | 33010 | Lock Nut M6 (1=10Pcs) |
| 45 | 23197 | Shock |
| 46 | 25050 | Spring |
| 47 | 230053 | Adjusting ring |
| 48 | 230054 | Guide spring |
| 49 | 230076 | Guide spring |
| 50 | 230062 | Hose |
| 51 | 415093810 | Screw |
| 52 | 415038700 | O-ring |
| 53 | 230055 | Rubber bushing |
| 54 | 505072018 | SKI STOPPER - Call your local BRP dealership This part replaces 506151233. |
| 55 | 505070727 | Ski liner |
| 56 | 605349140 | Bridge |
| 57 | 605448774 | Sleeve |
| 58 | 505070963 | Plastic handle, black |
| 59 | 5347985 | Runner |
| 60 | 33074 | NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 61 | 40009 | Screw M8 x 50 |
| 62 | 207089044 | Hex. Screw M8 x 90 This part replaces 40264. |
| 63 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 64 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 65 | 36072 | Rivet |
| 66 | 40814 | Screw M10 x 110 |
| 67 | 20105 | Washer, hardened |
| 68 | 413711500 | SYNTHETIC GREASE - Call your local BRP dealership |
