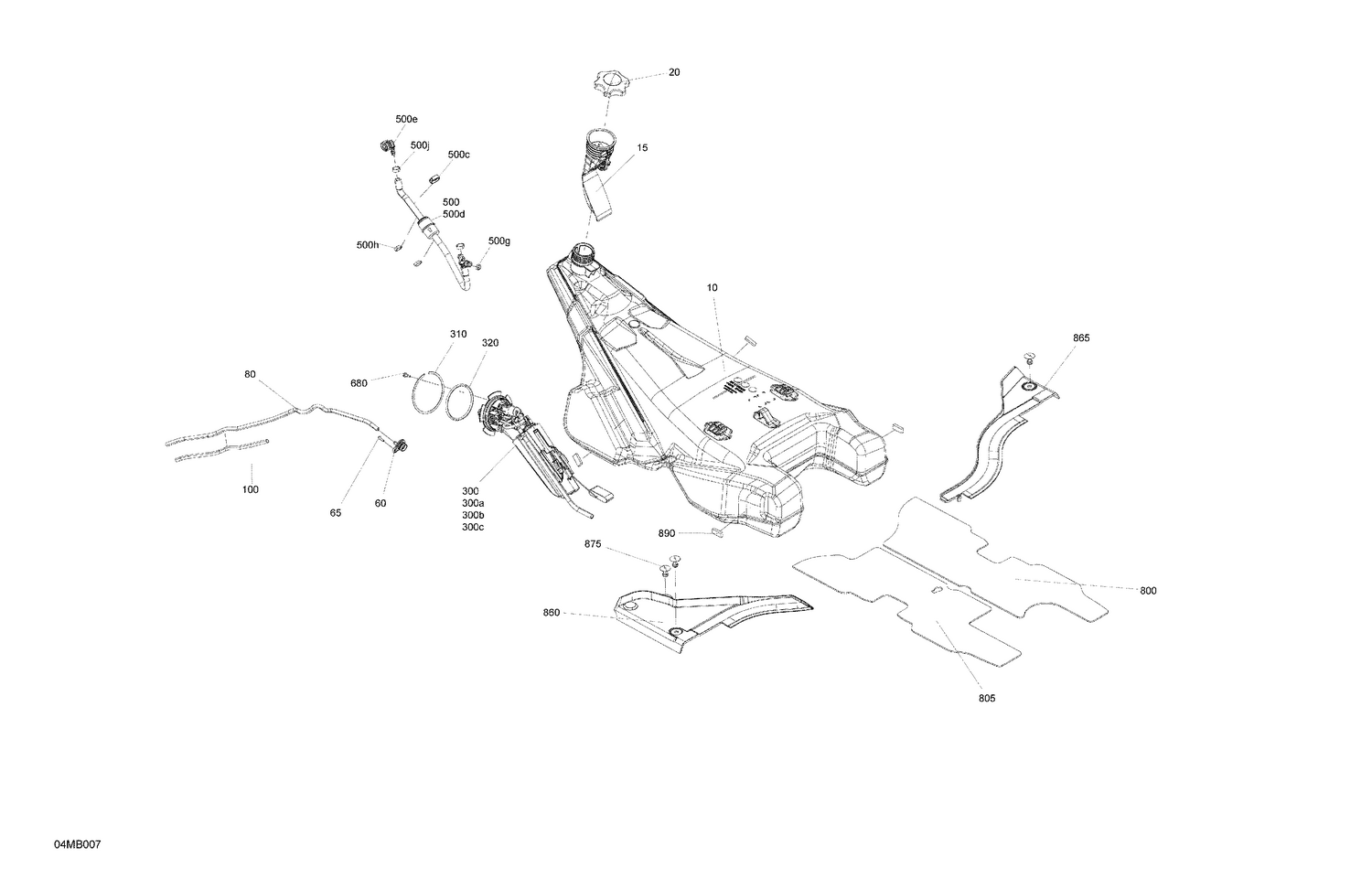

02- Engine - Fuel
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513034100 | Fuel Tank This part replaces 513033939. |
| 15 | 513033959 | Tube Ass'y |
| 20 | 513034170 | Fuel Tank Cap This part replaces 513033943. |
| 60 | 513033849 | Check Valve |
| 65 | 250000918 | Truss Torx Screw K40 X 16 |
| 80 | 219704410 | Polyurethane Hose 10000Mm Long |
| 100 | 503195447 | Protector Tube |
| 300a | 415130508 | Filter This part replaces 415130069. |
| 300b | 415130281 | Fuel Level Sensor |
| 300c | 415130507 | Canister |
| 310 | 513033798 | Circlip |
| 320 | 513033862 | O-Ring |
| 500c | 513033910 | Ring |
| 500d | 513034047 | Fuel Filter This part replaces 513033719. |
| 500e | 293710105 | Elbow Fitting 90° |
| 500g | 513033668 | O-Ring |
| 500h | 293650125 | Oetiker Clamp |
| 500j | 293650053 | Crimp Clamp |
| 680 | 250000911 | Hex. Flange Screw M5 X 16 |
| 800 | 513034052 | RH Insulated Foam |
| 805 | 513034053 | LH Insulated Foam |
| 860 | 513033978 | LH Guide Ass'y |
| 865 | 513033979 | RH Guide Ass'y |
| 875 | 293150104 | Pop Rivet 3/16" |
