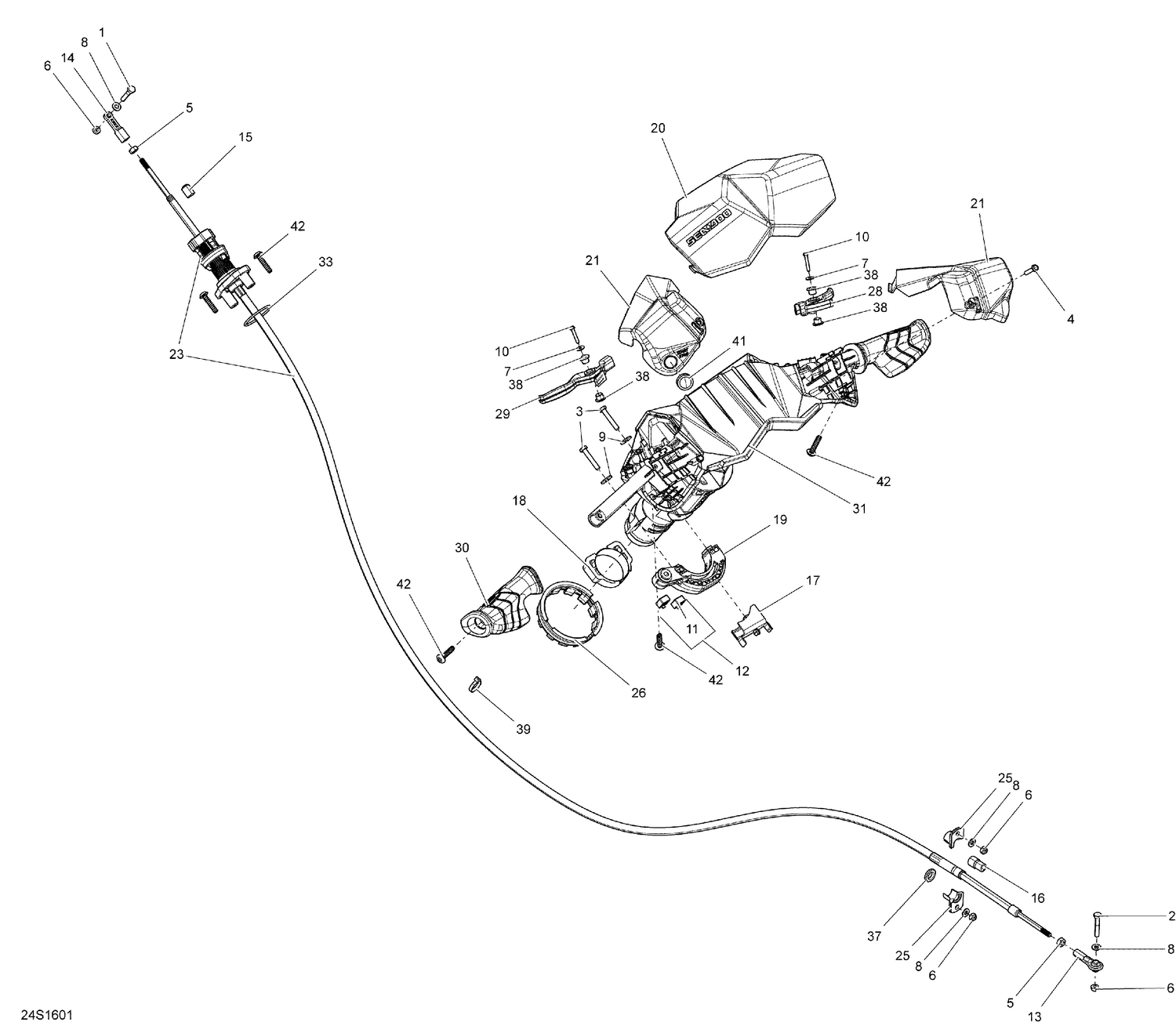

07- Steering
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207063060 | Hex. Screw M6 X 30 |
| 2 | 207063560 | Hex. Screw M6 X 35 |
| 3 | 207163560 | Hex. Screw M6 X 35 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 5 | 211100056 | Hex. Nut 1/4"-28 |
| 6 | 232561200 | Brass Elastic Stop Nut M6 |
| 7 | 234042600 | Flat Washer 4 mm, Stainless |
| 8 | 234061600 | Stainless Flat Washer M6 |
| 9 | 234062600 | Flat Washer M6, Stainless |
| 10 | 241142560 | Hex. Flange Screw K40 X 25 |
| 11 | 269500252 | M6 Nut Housing Ass'y |
| 12 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 13 | 277000775 | Ball Joint |
| 14 | 277001180 | Ball Joint |
| 15 | 277001582 | Wiper Rod |
| 16 | 277001583 | End Piece |
| 17 | 277001654 | Spacer |
| 18 | 277002318 | Wear Ring This part replaces 277001741. |
| 19 | 277002179 | Support Ass'y This part replaces 277001779. |
| 20 | 277001786 | Bright White, Steering Pad |
| 21 | 277001788 | Deep Black, RH Cover |
| 23 | 277002449 | Steering Cable This part replaces 277001790. |
| 25 | 277001856 | Ring Halves |
| 26 | 277001874 | Wear Ring |
| 28 | 277001944 | Throttle Handle |
| 29 | 277001945 | Reverse Handle |
| 31 | 277001952 | Steering |
| 33 | 293300176 | O-Ring |
| 37 | 293830063 | Rubber Washer |
| 38 | 293900091 | Bushing |
| 39 | 414115200 | Tie-Rap 180 mm |
| 41 | 277001887 | Red, Knob Switch |
