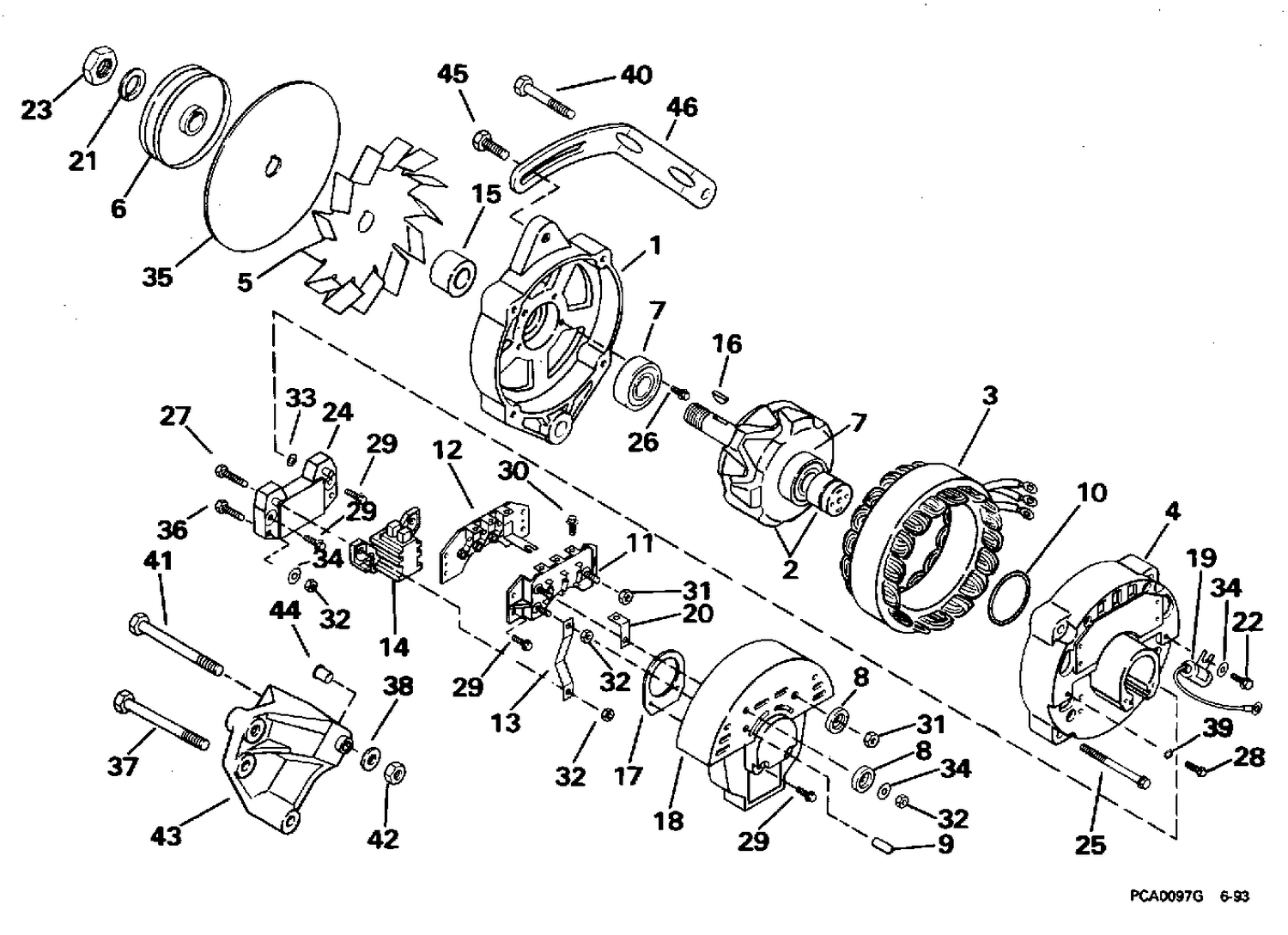

| Ref | Part Number | Description |
|---|
| 1 |
3852647 |
HOUSING, Front |
| 2 |
3853838 |
ROTOR ASSY. |
| 3 |
3853837 |
STATOR ASSY. |
| 4 |
3852646 |
HOUSING, Rear |
| 5 |
3852645 |
FAN |
| 6 |
3852644 |
PULLEY |
| 7 |
3852643 |
BEARING, Front & rear |
| 8 |
3852624 |
INSULATOR, Red |
| 9 |
3852623 |
INSULATOR, Boot |
| 10 |
3852642 |
RETAINER, Rear bearing |
| 11 |
3852641 |
DIODE FIELD |
| 12 |
3853836 |
DIODE BRIDGE |
| 13 |
3852640 |
STRAP, B+ |
| 14 |
3853835 |
BRUSH ASSEMBLY |
| 15 |
3852639 |
SPACER, Fan |
| 16 |
3852638 |
KEY, Woodruff |
| 17 |
3852637 |
FELT GASKET |
| 18 |
3853834 |
COVER ASSEMBLY |
| 19 |
3852636 |
CAPACITOR |
| 20 |
3852635 |
STRAP, AC Tap |
| 21 |
3852625 |
LOCK WASHER, Pulley |
| 22 |
3852736 |
SCREW, Alternator ground |
| 23 |
3852630 |
NUT, Pulley |
| 24 |
3853833 |
REGULATOR, Voltage |
| 25 |
3852634 |
BOLT, Through |
| 26 |
3852734 |
SCREW, Front housing |
| 27 |
3852629 |
SCREW, Regulator |
| 28 |
3852736 |
SCREW, Alternator ground |
| 29 |
3852735 |
SCREW, Diode field |
| 30 |
3852628 |
SCREW, Diode field |
| 31 |
3852633 |
NUT |
| 32 |
3852632 |
LOCKNUT |
| 33 |
3852732 |
WASHER, Insulator |
| 34 |
3852626 |
WASHER |
| 35 |
3853881 |
FAN BAFFLE |
| 36 |
3852737 |
SCREW, Terminal |
| 37 |
3853395 |
SCREW, Bracket |
| 40 |
3853557 |
SCREW, Brace to alterntr bracket |
| 41 |
3853367 |
SCREW Bracket |
| 42 |
0305496 |
LOCKNUT, Alternator to bracket This part replaces 3852051. |
| 43 |
0987775 |
BRACKET, Alternator This part replaces 3854183. |
| 44 |
3852740 |
BUSHING, Alternator |
| 45 |
3853399 |
SCREW, Brace to alternator |
| 500 |
509001284 |
Hose |
| 520 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 600 |
509001161 |
Hose |
| 620 |
293650306 |
Oetiker Clamp |
| 720 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 1190 |
219704421 |
Protector Tube 32 Mm 1000Mm Long |
| 1200 |
509001164 |
Hose |
| 1210 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 1220 |
509001165 |
Hose |
| 1230 |
293650046 |
Oetiker Clamp |
| 1240 |
293650046 |
Oetiker Clamp |
| 1245 |
293650025 |
Oetiker Gear Clamp |
| 1250 |
509001041 |
Oetiker Clamp |
| 1255 |
293650046 |
Oetiker Clamp |
| 1275 |
293650046 |
Oetiker Clamp |
| 1300 |
509001457 |
Hose This part replaces 509001166. |
| 2000 |
509001261 |
Coolant Tank |
| 2100 |
219704360 |
Hose 6 Mm 15000Mm Long |
| 2250 |
509000180 |
Radiator Pressure Cap |
| 2500d |
293450268 |
Insert M5 X 0.8 |
| 2510 |
512061214 |
Protector |
| 2600 |
509001379 |
Clamp |
| 2700 |
250000742 |
Torx Screw M5 X 14 |
| 3010 |
293650099 |
Oetiker Gear Clamp |
| 3075 |
250100208 |
Panel Nut M6 X 1.0 |
| 3100 |
509001234 |
Hose |
| 3110 |
293650141 |
Oetiker Gear Clamp |
| 3120 |
509001236 |
Hose |
| 3130 |
707001349 |
Protector Tube 90mm |
| 3150 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 3300 |
509001037 |
Radiator |
| 3320 |
516012019 |
Protection Decal |
| 3350 |
509001301 |
Fan Ass'y |
| 3360 |
509001349 |
Support |
| 3380 |
709000582 |
Grommet |
| 3390 |
293900151 |
Bushing |
| 3395 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 3410 |
219704362 |
Hose |
| 3420 |
293650025 |
Oetiker Gear Clamp |
| 3440 |
293650025 |
Oetiker Gear Clamp |
| 4050 |
250200082 |
Flat Washer |
| 8100 |
509001259 |
Support |
| 8110 |
207562054 |
Hex. Flange Screw S.GRIP M6 X 20 |
| 3853853 |
3860769 |
Alternator Kit This part replaces 3853853. |
