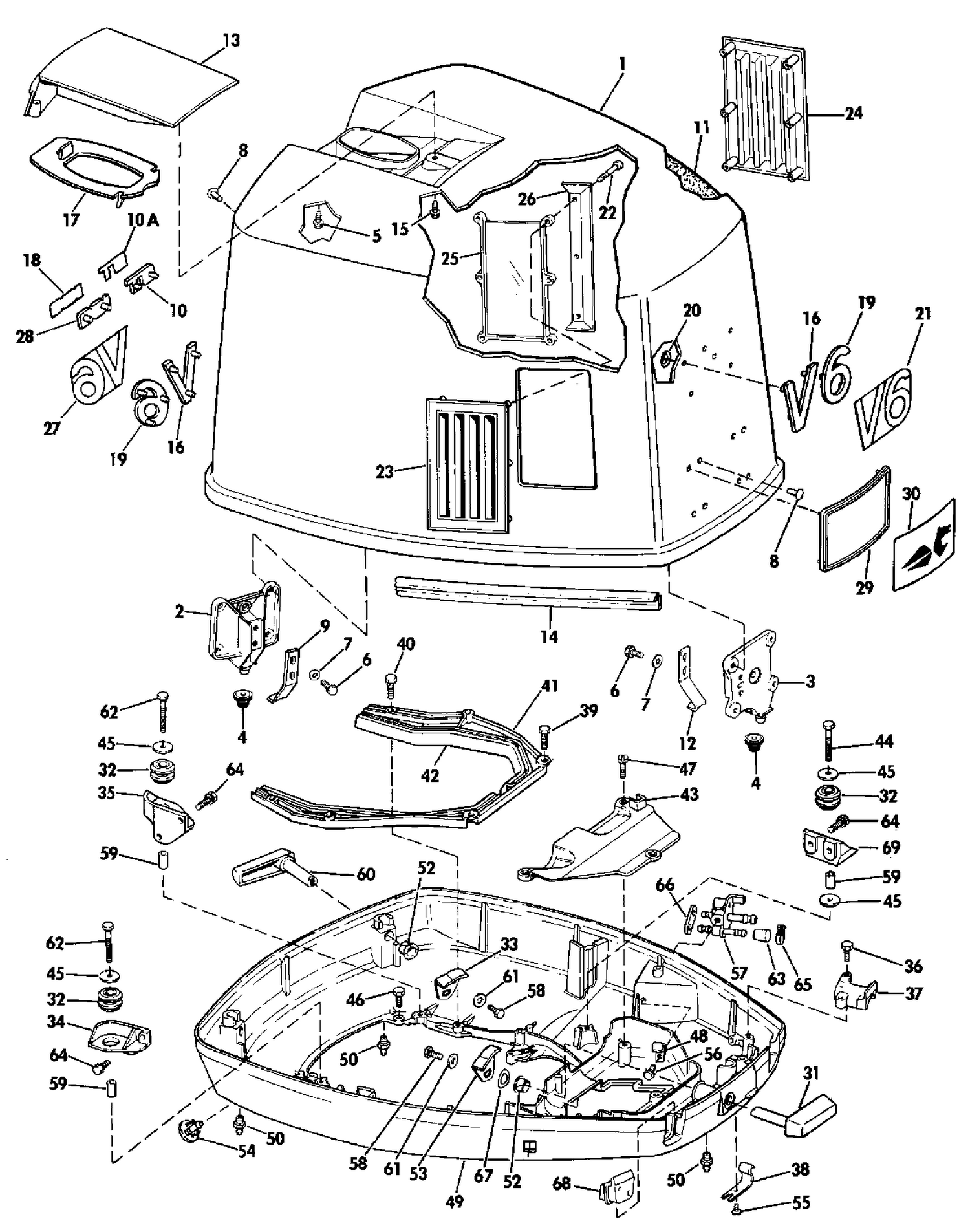

| Ref | Part Number | Description |
|---|
| 1 |
0432479 |
ENGINE COVER |
| 1 |
0433969 |
ENGINE COVER ASSY., This part replaces 0433127. |
| 2 |
0394976 |
LOCATING BRACKET, Rear |
| 3 |
0389971 |
LOCATING BARCKET, Front |
| 10 |
0330456 |
APPLIQUE GT, rear |
| 10A |
0334581 |
PLATE, GT, rear |
| 11 |
0321256 |
SOUND BLANKET, Top |
| 12 |
0323175 |
HOOK , Motor Cover, Front |
| 14 |
0328686 |
SEAL, Engine cover |
| 16 |
0330413 |
APPLIQUE, Front & rear |
| 18 |
0334583 |
PLATE, Rear |
| 19 |
0330410 |
APPLIQUE, Front & rear |
| 21 |
0334582 |
PLATE, Applique front |
| 23 |
0334585 |
LOUVER, Engine cover, stbd |
| 23 |
0335046 |
LOUVER, Engine cover, stbd |
| 24 |
0334584 |
LOUVER, Engine cover, port |
| 24 |
0335045 |
LOUVER, Engine cover, port |
| 25 |
0329737 |
BAFFLE, 175STL |
| 26 |
0329866 |
BRACKET, Louver mtg |
| 27 |
0334582 |
PLATE, Applique front |
| 28 |
0330458 |
APPLIQUE, 150 Rear |
| 29 |
0335036 |
APPLIQUE, Front |
| 30 |
0335060 |
PLATE, Applique, front |
| 31 |
0395757 |
LATCH HANDLE ASSY., Front |
| 32 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 33 |
0323169 |
HOOK, Lower rear port |
| 34 |
0315113 |
SUPORT, Stbd, rear |
| 35 |
0315112 |
SUPPORT, Port rear |
| 37 |
0318849 |
CLAMP, Instrument cable |
| 38 |
0333739 |
RETAINER, Fuel hose to cover |
| 39 |
0328695 |
CLAMP, Engine cable |
| 41 |
0392494 |
FRAME AND SEAL ASSY |
| 42 |
0318258 |
SEAL Cover |
| 43 |
0328358 |
COVER ASSY. Air entrance |
| 44 |
0303398 |
VIS, support |
| 46 |
0328695 |
CLAMP, Engine cable |
| 47 |
0328695 |
CLAMP, Engine cable |
| 49 |
0434288 |
ENGINE COVER, Lower This part replaces 0432658. |
| 53 |
0323170 |
HOOK Front and stbd., rear |
| 54 |
0321885 |
NIPPLE |
| 56 |
0908159 |
SCREW, Bearing clamp This part replaces 0328728. |
| 57 |
0394309 |
FUEL CONNECTOR |
| 59 |
0302406 |
SLEEVE |
| 60 |
0395758 |
LATCH HANDLE ASSY., Rear |
| 62 |
0303398 |
VIS, support |
| 64 |
0328695 |
CLAMP, Engine cable |
| 66 |
0331533 |
JOINT, conn. carburant vers capot inférieur |
| 68 |
0320834 |
GROMMET |
| 69 |
0315111 |
SUPPORT, Front |
| 0432256 |
0432256 |
OWNER'S MANUAL, 175STL |
| 0433143 |
0433143 |
DECAL SET |
