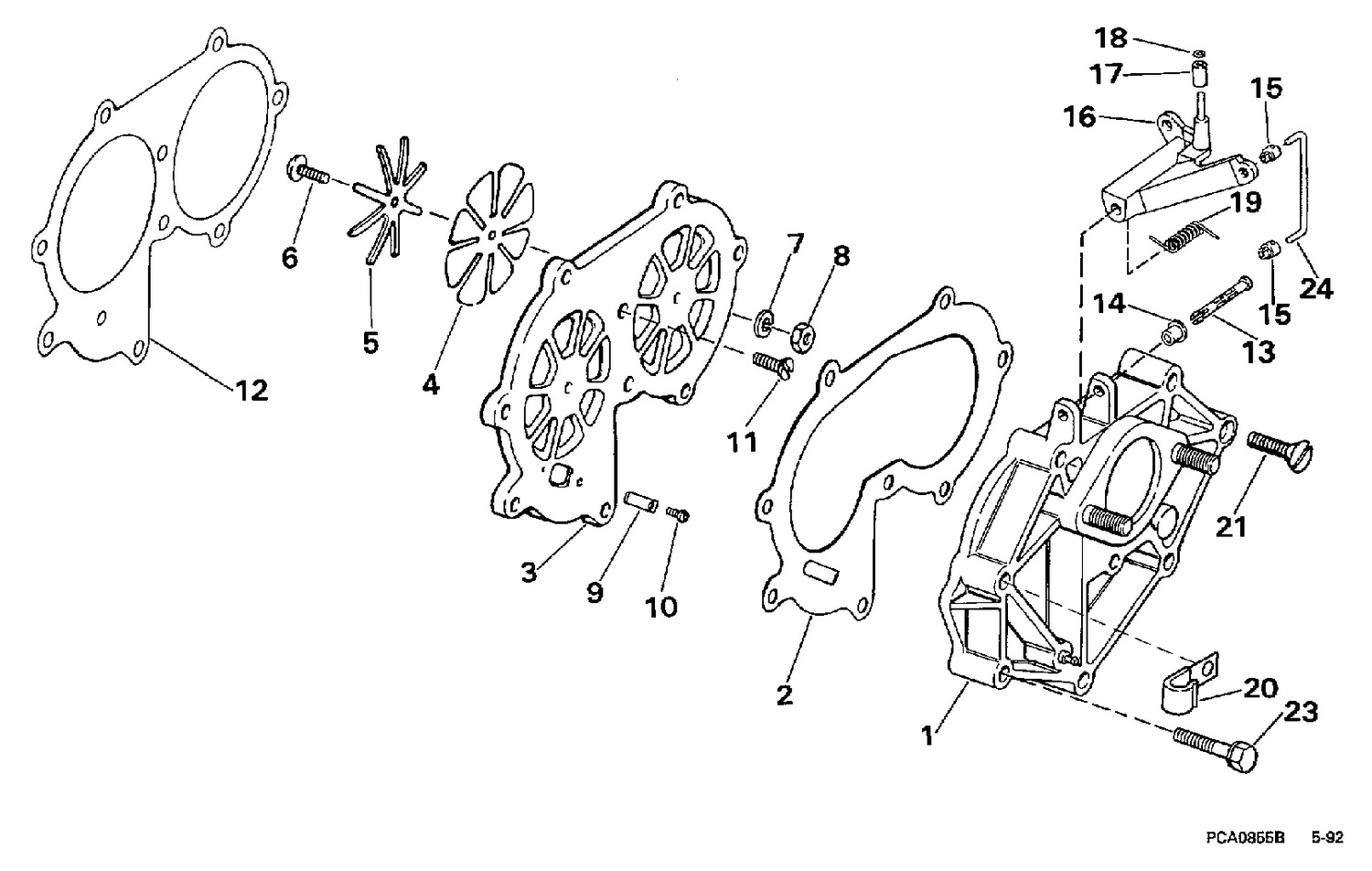

INTAKE MANIFOLD
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0396788 | MANIFOLD, Intake |
| 2 | 0326260 | GASKET, Manifold |
| 11 | 0307609 | SCREW |
| 12 | 0321479 | GASKET, Plate to crankcase |
| 13 | 0331449 | PIN, Cam follower |
| 15 | 0313329 | LOCKWASHER, Carburetor link |
| 16 | 0396154 | CAM FOLLOWER |
| 17 | 0305232 | ROLLER, Cam foller |
| 18 | 0307529 | JOINT TORIQUE, galet vers contre-came |
| 19 | 0320157 | RETAINING RING, Roller |
| 20 | 0330151 | CLAMP, Harness to oil tank boss |
| 21 | 0304294 | SCREW Manifold to crankcase |
| 23 | 0303459 | ECREW,Exhaust cover,1-1/2"long |
| 0437712 | 0437712 | LEAF PLATE ASSEMBLY |
