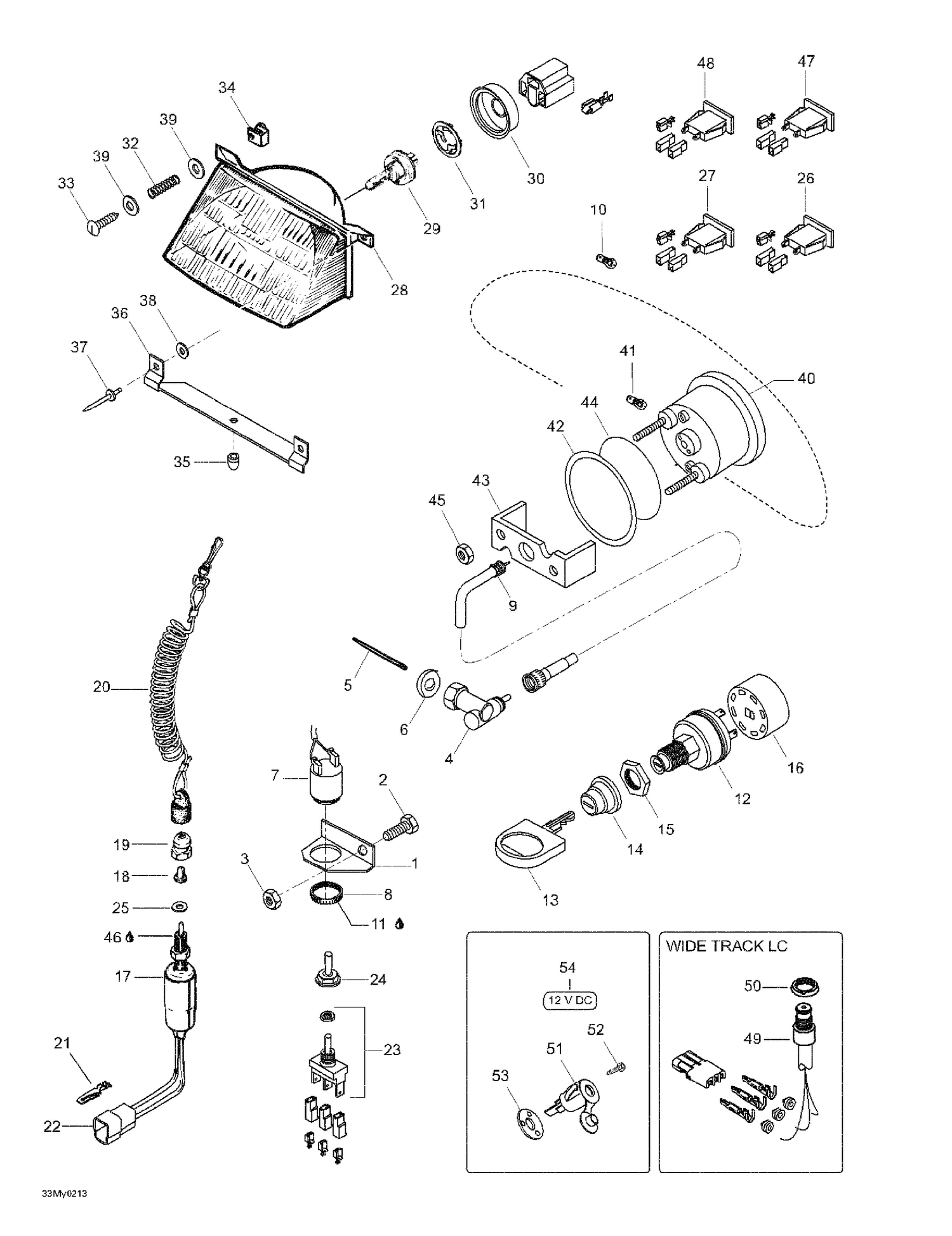

| Ref | Part Number | Description |
|---|
| 1 |
M549459 |
Support |
| 2 |
207161644 |
Hex. Screw M6 X 16 |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 4 |
35021 |
Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021. |
| 5 |
45075 |
Square Pin Nska L=75Mm This part replaces M45075. |
| 6 |
M5444186 |
Washer |
| 7 |
414792102 |
Back-Up Alarm |
| 8 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 9 |
5344162 |
Speedometer Cable This part replaces M5344162. |
| 10 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 11 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 12 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership This part replaces 410113602. |
| 13 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 14 |
570013700 |
Switch Boot |
| 15 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 16 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 23 |
410110700 |
Heat Grip Switch |
| 24 |
515175281 |
Switch Cover |
| 25 |
234001410 |
Flat Washer 10 mm |
| 26 |
410109600 |
Pilot Lamp (Blue) |
| 27 |
410109500 |
Pilot Lamp (Red) |
| 28 |
410609300 |
Headlamp |
| 29 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 30 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 31 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 32 |
517168600 |
Spring |
| 33 |
243244040 |
PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership |
| 34 |
572078600 |
Projector Nut |
| 35 |
410608200 |
RUBBER STOPPER - Call your local BRP dealership |
| 36 |
M539864 |
HOLDER - Call your local BRP dealership |
| 37 |
M36489 |
Rivet |
| 38 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 39 |
234051410 |
Flat Washer M5 |
| 41 |
410501000 |
Instrumentation Bulb |
| 42 |
517258500 |
Washer |
| 43 |
414806500 |
Case Holder |
| 44 |
414807100 |
O-Ring |
| 45 |
M33062 |
NUT M5 - Call your local BRP dealership |
| 46 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 515175335 |
Indicateur |
De Vitesse, Kmh 515175335 |
| 515175335 |
Speedometer, |
Kmh 515175335 |
