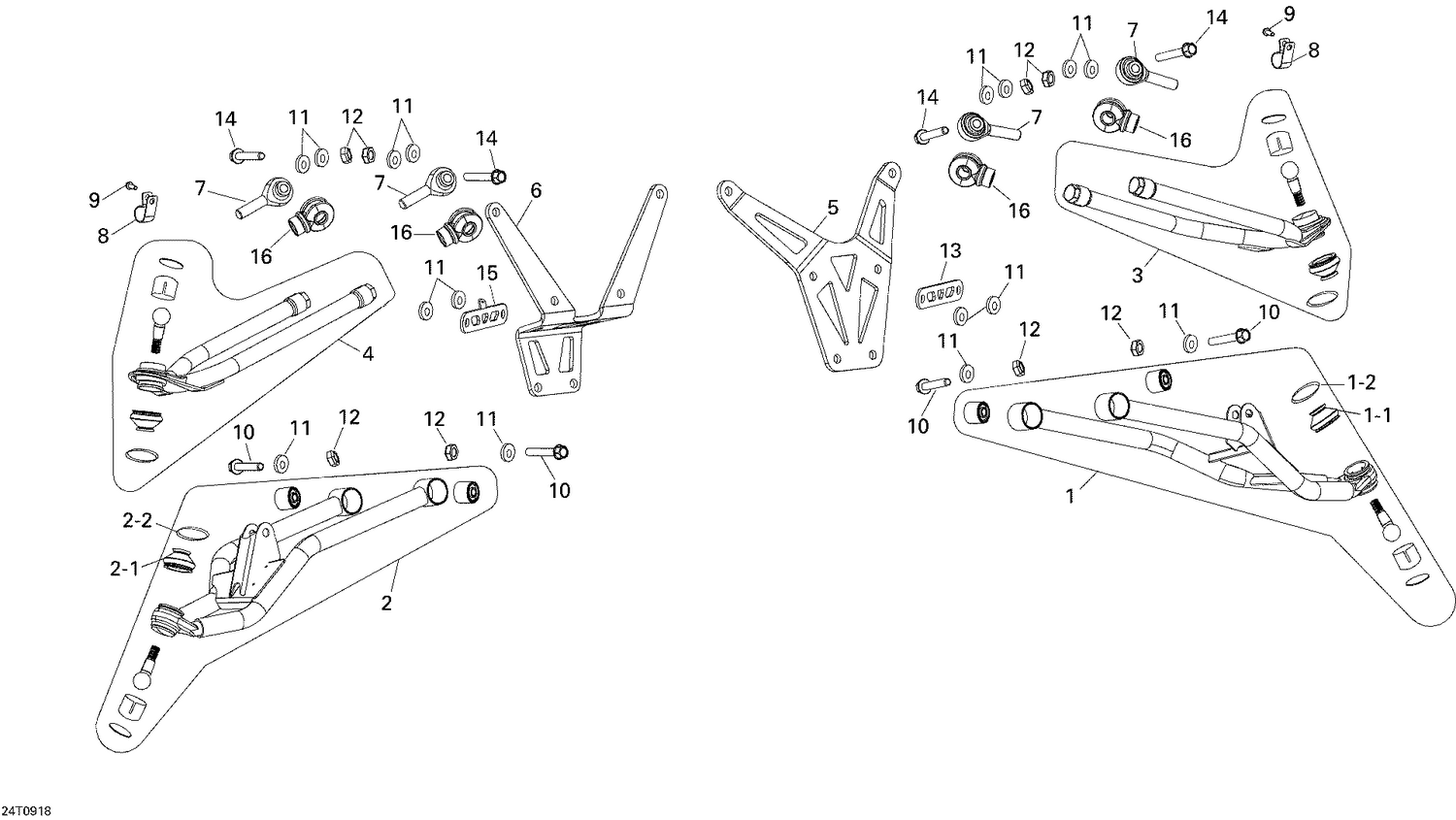

07- Front Suspension Arm
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V51449DGF06H | LH Lower Suspension Arm This part replaces V51449DGF00H. |
| 2 | V51459DGF07H | RH Lower Suspension Arm This part replaces V51459DGF00H. |
| 3 | V51469DGF09H | LH Upper Suspension Arm This part replaces V51469DGF00H. |
| 4 | V51479DGF08HLL | Fr.Upper Swing Arm Rh This part replaces V51479DGF00H. |
| 5 | V50120DGF07HLL | Front Plate This part replaces V50120DGF03H. |
| 6 | V50121DGF06HLL | Rear Plate This part replaces V50121DGF03H. |
| 7 | V51472DGF02HLL | Ball Joint This part replaces V51472DGF00H. |
| 8 | V50126DGF00H | Clip |
| 9 | 207661244 | Hex. Flange Screw M6 X 12 |
| 10 | 207605544 | Hex. Flange Screw M10 X 55 |
| 11 | A941011020020 | Washer |
| 12 | 232501416 | Elastic Flange Nut M10 This part replaces A9035010000. |
| 13 | V50130DGF05H | Plate |
| 14 | V958211006090LL | Hexagonal Flange Bolt This part replaces V958211006090. |
| 15 | V50132DGF03H | Plate |
