| Ref | Part Number | Description |
|---|
| 1 |
0394322 |

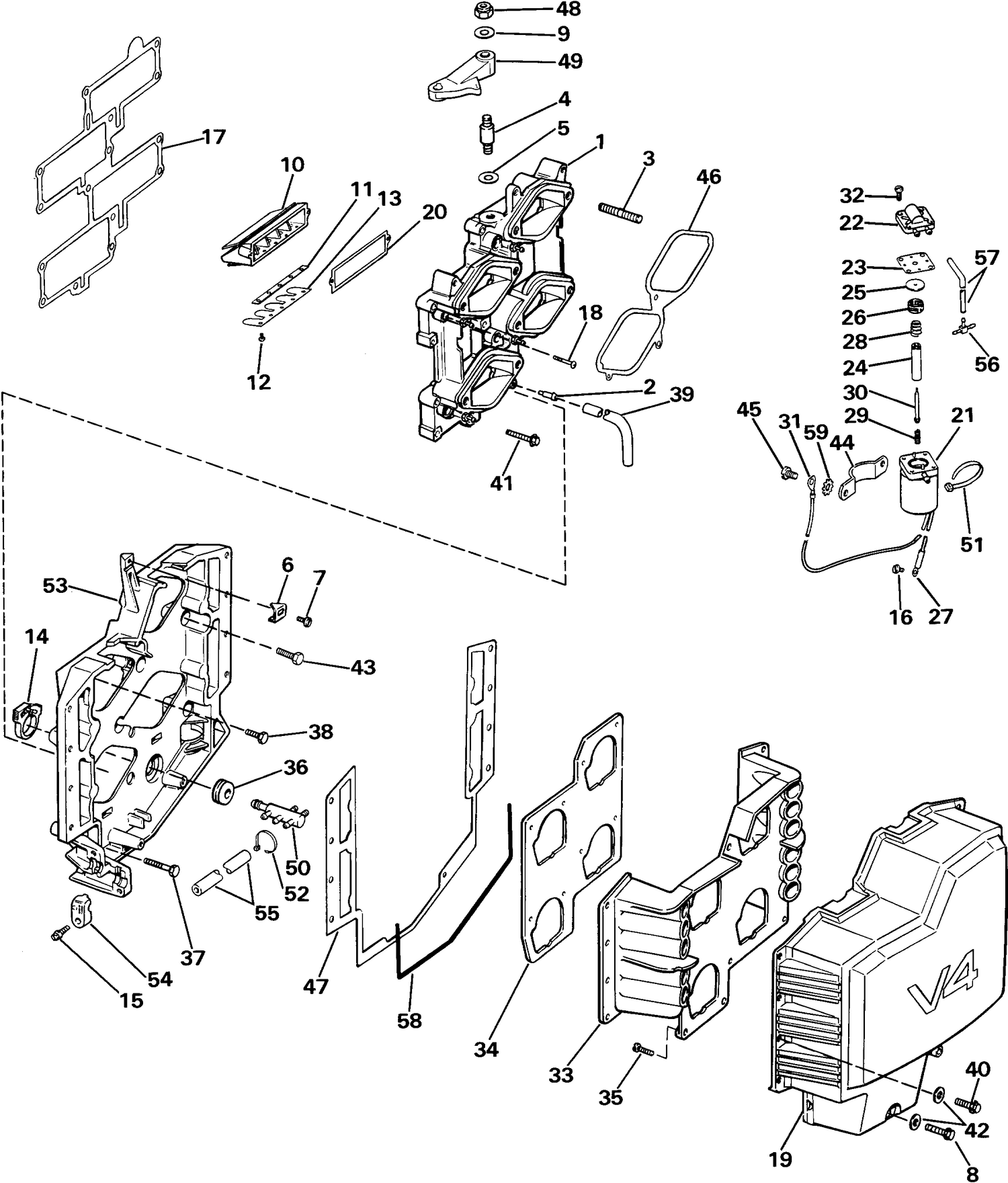

INTAKE MANIFOLD ASSY. |
| 3 |
0310872 |
STUD |
| 6 |
0331153 |
TIMING POINTER, Manifold |
| 7 |
0329594 |
SCREW, Cam follower |
| 8 |
0331102 |
SCREW, Coil to block |
| 10 |
0396201 |
LEAF PLATE ASSY. This part replaces 0396072. |
| 11 |
0326767 |
SHIM, Reed valve |
| 13 |
0322485 |
LEAF VALVE |
| 15 |
0909533 |
SCREW, Pressure relief valve cover |
| 16 |
0329182 |
VIS, borne |
| 17 |
0328622 |
GASKET, Manifold to crankcase |
| 18 |
0321707 |
SCREW, Leaf plate |
| 19 |
0436279 |
COVER & PLUG AY., Air silencer This part replaces 0328614. |
| 20 |
0328626 |
GASKET, Leaf plate |
| 21 |
5007356 |
Kit Ay This part replaces 0582865. |
| 22 |
0512119 |
COVER, Primer solenoid |
| 23 |
0333448 |
GASKET This part replaces 0511808. |
| 25 |
0333448 |
GASKET This part replaces 0511810. |
| 33 |
0339109 |
BAFFLE, Air silencer cover This part replaces 0331097. |
| 34 |
0331098 |
SEAL, Baffle to carb |
| 37 |
0314610 |
SCREW |
| 39 |
0329695 |
HOSE |
| 40 |
0324603 |
SCREW, Cover to base |
| 41 |
0307471 |
SCREW |
| 43 |
0322831 |
SCREW |
| 44 |
0330118 |
CLAMP |
| 46 |
0328604 |
GASKET, Air silencer |
| 47 |
0331101 |
GASKET, Cover to base |
| 49 |
0329751 |
THROTTLE CAM |
| 50 |
0394385 |
FUEL MANIFOLD |
| 52 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 53 |
0432950 |
BASE, Air silencer This part replaces 0328607. |
| 54 |
0329271 |
CLAMP, Trunnion cable |
| 55 |
HOSE, |
Manifold to #1 carb., 7-1/2" |
| 56 |
0325569 |
T, amorçage |
| 57 |
HOSE, |
Primer to upper tee, 14" |
| 58 |
SEAL, |
Cover to base |
