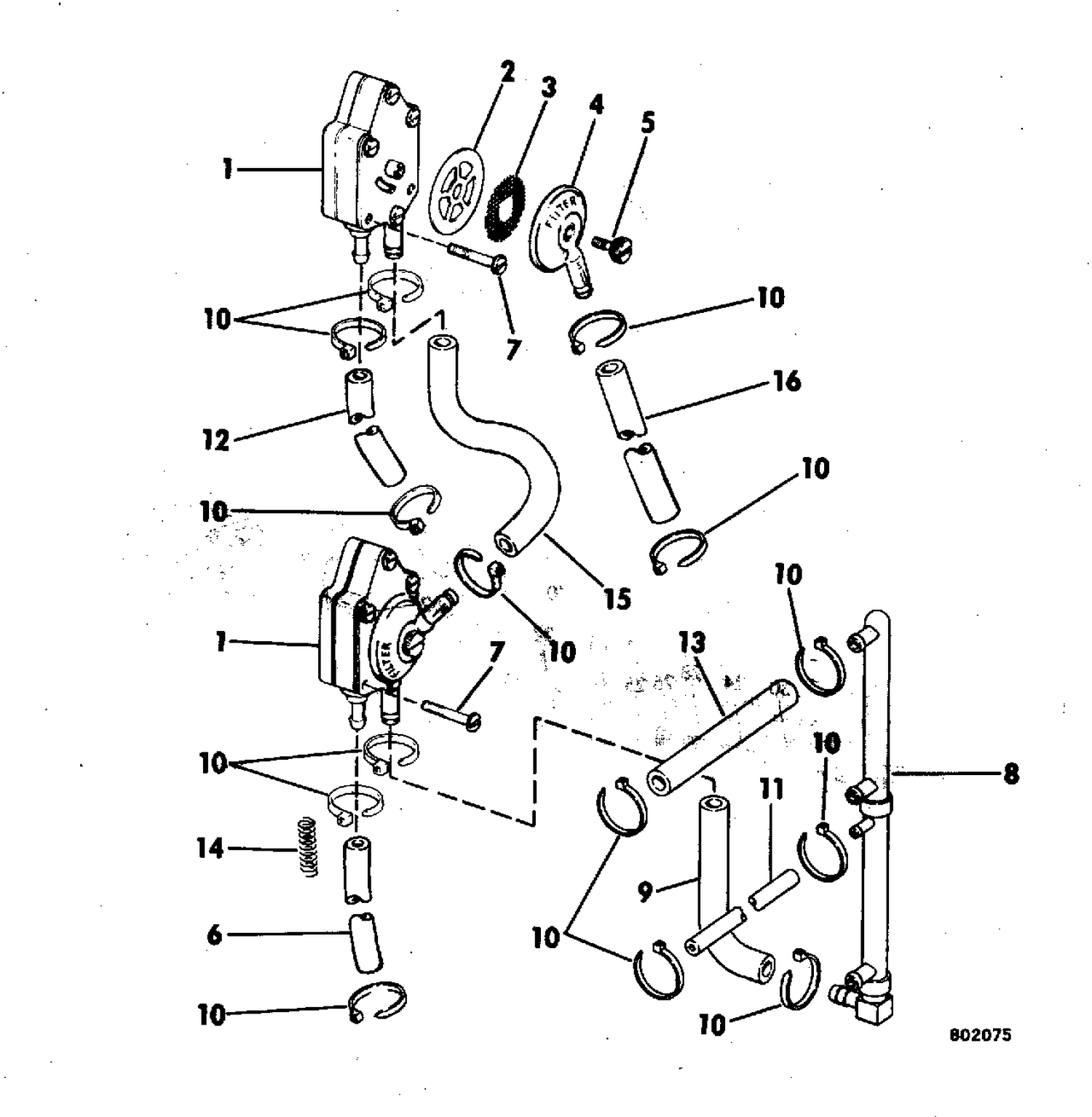

FUEL PUMP
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0389440 | FUEL PUMP ASSY., Lower |
| 1 | 0438559 | FUEL PUMP ASSY., Lower This part replaces 0388555. |
| 2 | 0338879 | GASKET, Cap to pump, upper This part replaces 0312679. |
| 4 | 0322759 | CAP, Filter |
| 6 | HOSE, | Pump to crankcase |
| 7 | 0328717 | NUT, Ground lead This part replaces 0308777. |
| 8 | 0390466 | FUEL MANIFOLD ASSY |
| 10 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 | HOSE, | Fuel manifold to primer solenoid |
| 14 | 0315942 | SPRING |
| 15 | HOSE, | Upper to lower pump |
