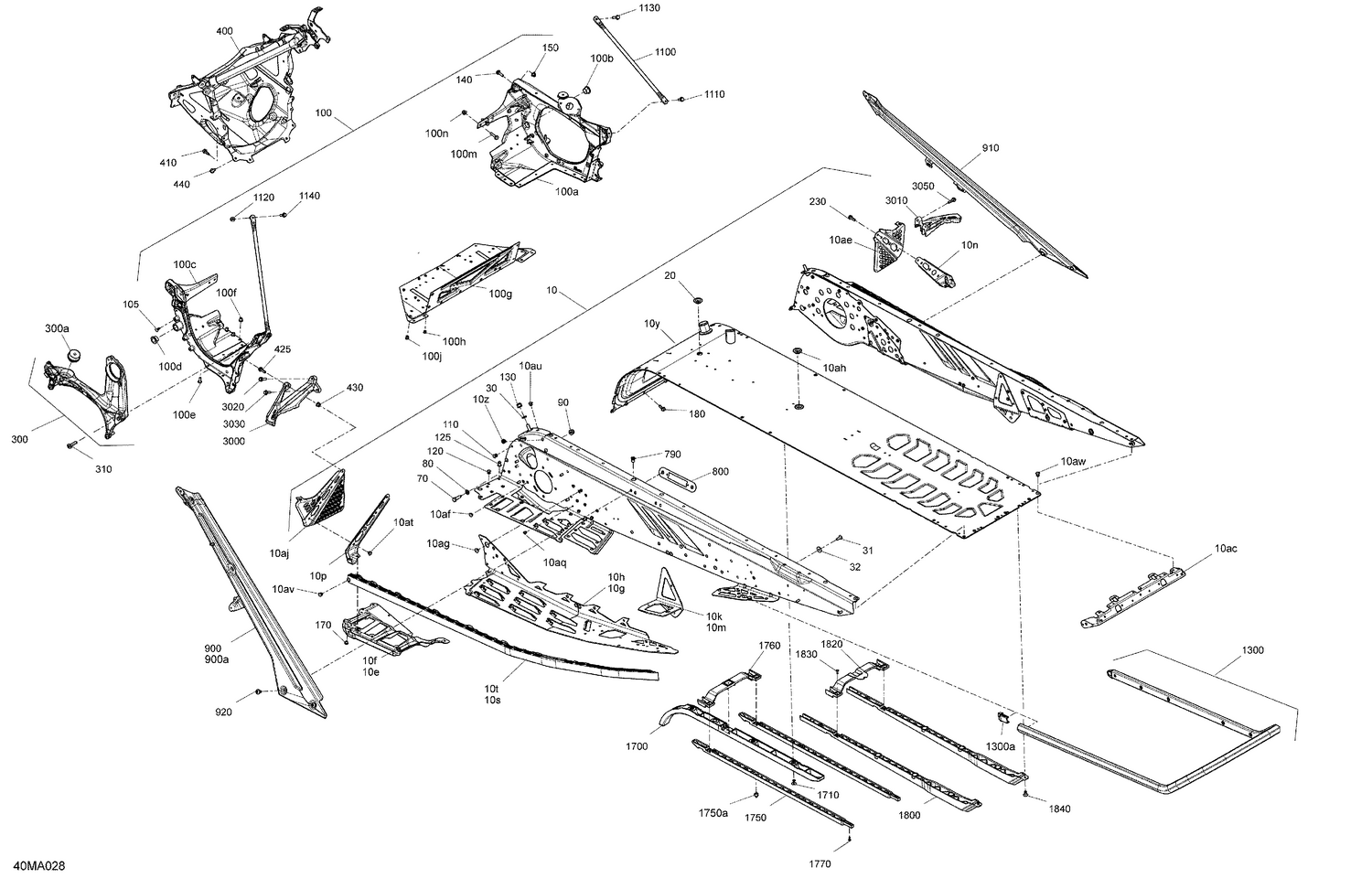

| Ref | Part Number | Description |
|---|
| 10ac |
518328990 |
Rear Cap |
| 10ae |
518328460 |
RH Footrest |
| 10af |
293730047 |
Black, Dart 8 mm |
| 10ag |
293730060 |
Black, Dart 10 mm |
| 10ah |
293730052 |
Black, Plug |
| 10aj |
518333007 |
LH Footrest This part replaces 518331556. |
| 10aq |
293150203 |
Rivet Avibulb 3/16 |
| 10at |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10au |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10av |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10aw |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10e |
518330738 |
Deep Black, RH Footrest Reinforcement |
| 10f |
518331523 |
Deep Black, LH Footrest Reinforcement |
| 10g |
518331546 |
RH Footrest |
| 10h |
518331547 |
LH Footrest |
| 10k |
518334387 |
RH Rear Suspension Support This part replaces 518329878. |
| 10m |
518329877 |
LH Suspension Bracket |
| 10n |
518331253 |
Stirrup Reinforcement |
| 10p |
518331560 |
Deep Black, LH Chasssis Reinforcement |
| 10s |
518329023 |
RH Roller |
| 10t |
518329024 |
LH Roller |
| 10y |
518334487 |
Radiator Tunnel 129 Ass'y This part replaces 518332551. |
| 10z |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 20 |
293730052 |
Black, Plug |
| 30 |
234081410 |
Flat Washer 8 mm |
| 31 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 32 |
224061201 |
Flat Washer |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a |
518332687 |
RH Member Ass'y This part replaces 518331257. |
| 100b |
505072690 |
Leg Bushing |
| 100c |
518334599 |
LH Side Member Ass'y This part replaces 518331254. |
| 100d |
505072690 |
Leg Bushing |
| 100e |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100f |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100g |
518332716 |
Bottom Plate |
| 100h |
293150203 |
Rivet Avibulb 3/16 |
| 100j |
293450268 |
Insert M5 X 0.8 |
| 100m |
250000945 |
Hex. Flange Screw M6 X 25 |
| 100n |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 105 |
293730079 |
Dart |
| 110 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 120 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 125 |
293150120 |
Hemlock Rivet 6.5 mm |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Screw-Pan HD.Torx M8X30 |
| 400 |
518334549 |
Chassis Suspension Module Ass'y This part replaces 518330573. |
| 410 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 |
| 425 |
207663546 |
Hex. Flange Screw M6 x 35 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 440 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 790 |
293450278 |
Insert |
| 800 |
518329480 |
Member Fixation Plate |
| 900a |
518330885 |
RH Rear Diagonal Cross Member |
| 910 |
518330880 |
Black, RH Member Ass'y |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207561646 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1300a |
520001612 |
Cap |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 3000 |
518330358 |
Black Toe-hold |
| 3010 |
518329134 |
Toe Hold |
| 3020 |
250000793 |
Hex. Flange Screw M6 X 25 |
| 3030 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
