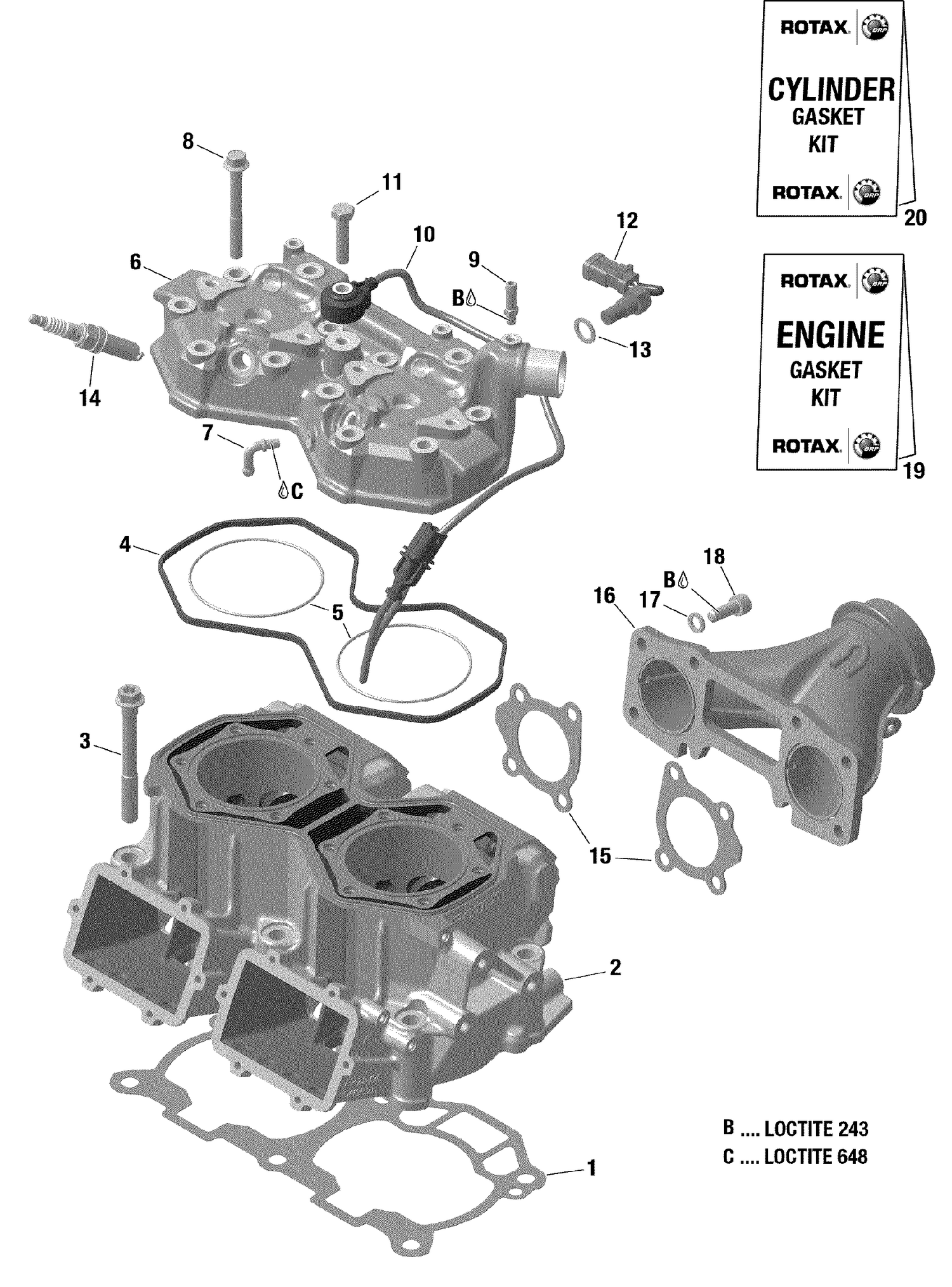

01- Cylinder And Cylinder Head
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420831070 | Gasket 0.5 |
| 1 | 420831071 | Gasket 0.6 |
| 1 | 420831072 | Gasket 0.7 |
| 1 | 420831073 | Gasket 0.8 |
| 2 | 420413549 | Cylinder This part replaces 420413520. |
| 3 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 |
| 4 | 420430044 | Square Ring |
| 5 | 420831825 | O-Ring Cylinder |
| 7 | 420924802 | Fittin 90D This part replaces 420924523. |
| 8 | 420640959 | Collar Hex Screw M8 X 68.5 This part replaces 420640954. |
| 9 | 420924724 | Hose Nipple |
| 10 | 420664031 | Noise Sensor |
| 11 | 207083544 | Hex. Screw M8 X 35 |
| 12 | 420664509 | Temperature Sensor This part replaces 420664507. |
| 13 | 420250016 | Aluminum Sealing Ring This part replaces 420250015. |
| 14 | 415130651 | Spark Plug NGK ILKR8Q7 This part replaces 420297948. |
| 15 | 420430487 | Gasket |
| 16 | 420873040 | Exhaust Manifold |
| 17 | 420427290 | Washer |
| 18 | 420841051 | Allen Screw M8 X 22 |
| 19 | 420894266 | Gasket Set Engine |
