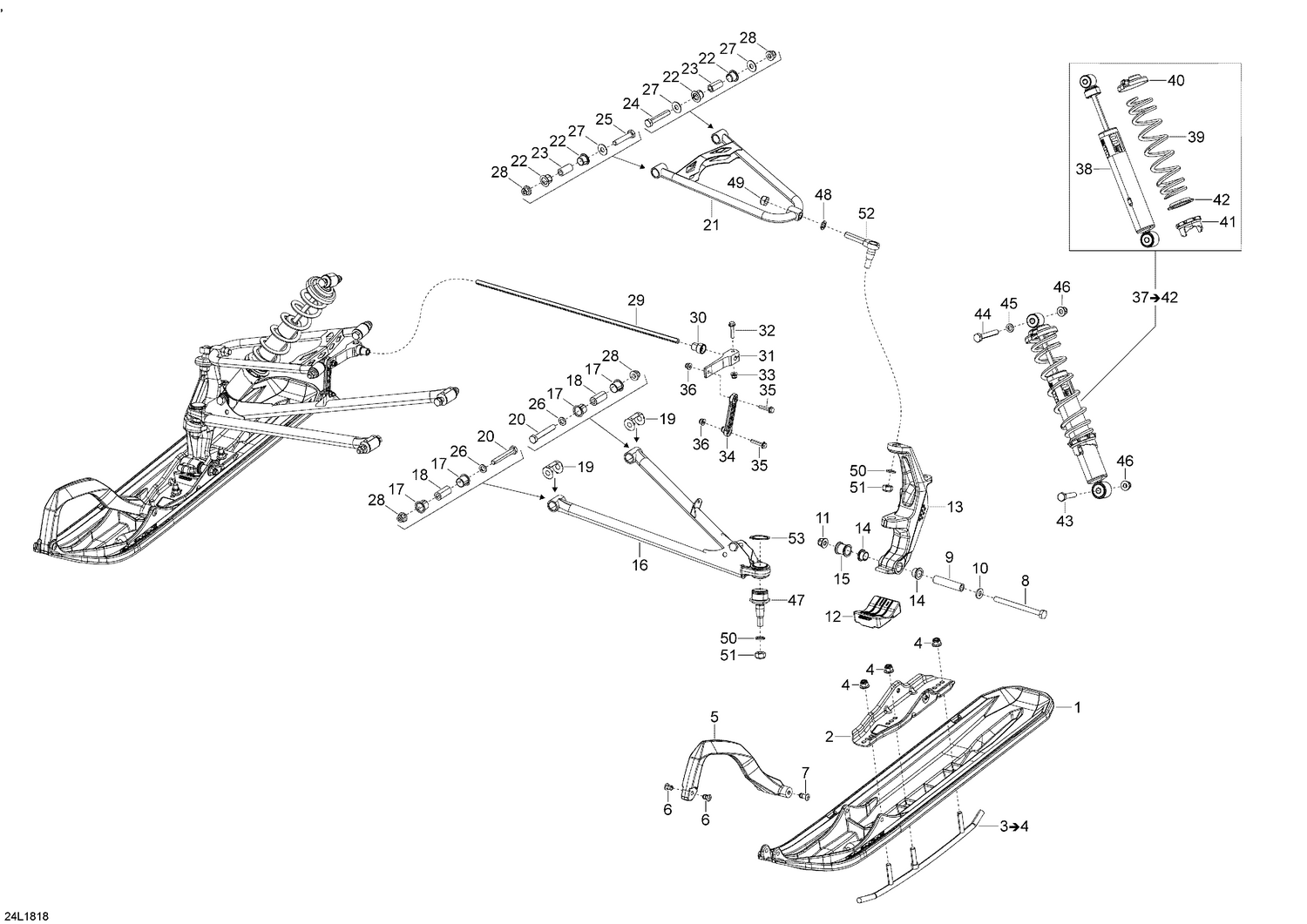

07- Front Suspension And Ski - 69 RANGER - 1200 4-TEC

07- Front Suspension And Ski - 69 RANGER - 1200 4-TEC

Parts (52)

RefPart NumberDescription
1 505074262 Ski Blade Xc Black
2 505073240 Ski Bridge
4 233201414 Hex. Flanged Elastic Nut M10
5 505073513 Orange Handle
6 505071812 Retainer 17mm long
7 505072133 Retainer 23mm Long
8 231080044 Socket HD Screw M10 x 100
9 506133300 Ski Axle
10 732900049 Washer
11 233201414 Hex. Flanged Elastic Nut M10
12 505073411 Rubber Damper
13 505072959 Black LH Ski Leg
13 505072960 Black RH Ski Leg
14 505072690 Leg Bushing
15 505071999 Spacer
16 505072664 RH Lower Arm
16 505072665 LH Lower Arm
17 505073330 Bushing
18 505072209 Bushing
19 505072634 Wear Plate
20 250001024 Screw Hex. M10 X 70 This part replaces 250000291.
21 505072374 RH/LH Upper Arm
22 505073329 Bushing
23 505072143 Bushing
24 250001023 Screw Hex. M10 X 60 This part replaces 250000290.
25 250001022 Screw Hex. M10 X 50 This part replaces 250000289.
26 503189564 Washer
27 505072392 Washer
28 250100165 Hex. Flanged Elastic Nut M10
29 505072602 Stabilisator
30 505072064 Bushing
31 505072394 Stabilisator Lever
32 207663046 Hex. Flange Screw M6 X 30
33 233261416 Elastic Flanged Nut M6 X 1.0
34 505072204 Sway Bar Double Joint Link
35 207663046 Hex. Flange Screw M6 X 30
36 233261416 Elastic Flanged Nut M6 X 1.0
38 505073342 Shock
39 505074329 Black Spring 300mm-18n/mm
40 706200881 Spring Stopper
41 505073625 Adjustment Cam
42 503191872 Spring Guide
43 207005544 Hex. Cap Screw M10 x 55
44 207006544 Hex. Cap Screw M10 x 65
45 503189564 Washer
46 233201414 Hex. Flanged Elastic Nut M10
47 505073636 Ball Joint
48 503189276 Washer
49 250100089 Nut M12
50 234021410 Flat Washer
51 250100089 Nut M12
52 505072257 Ball Joint
