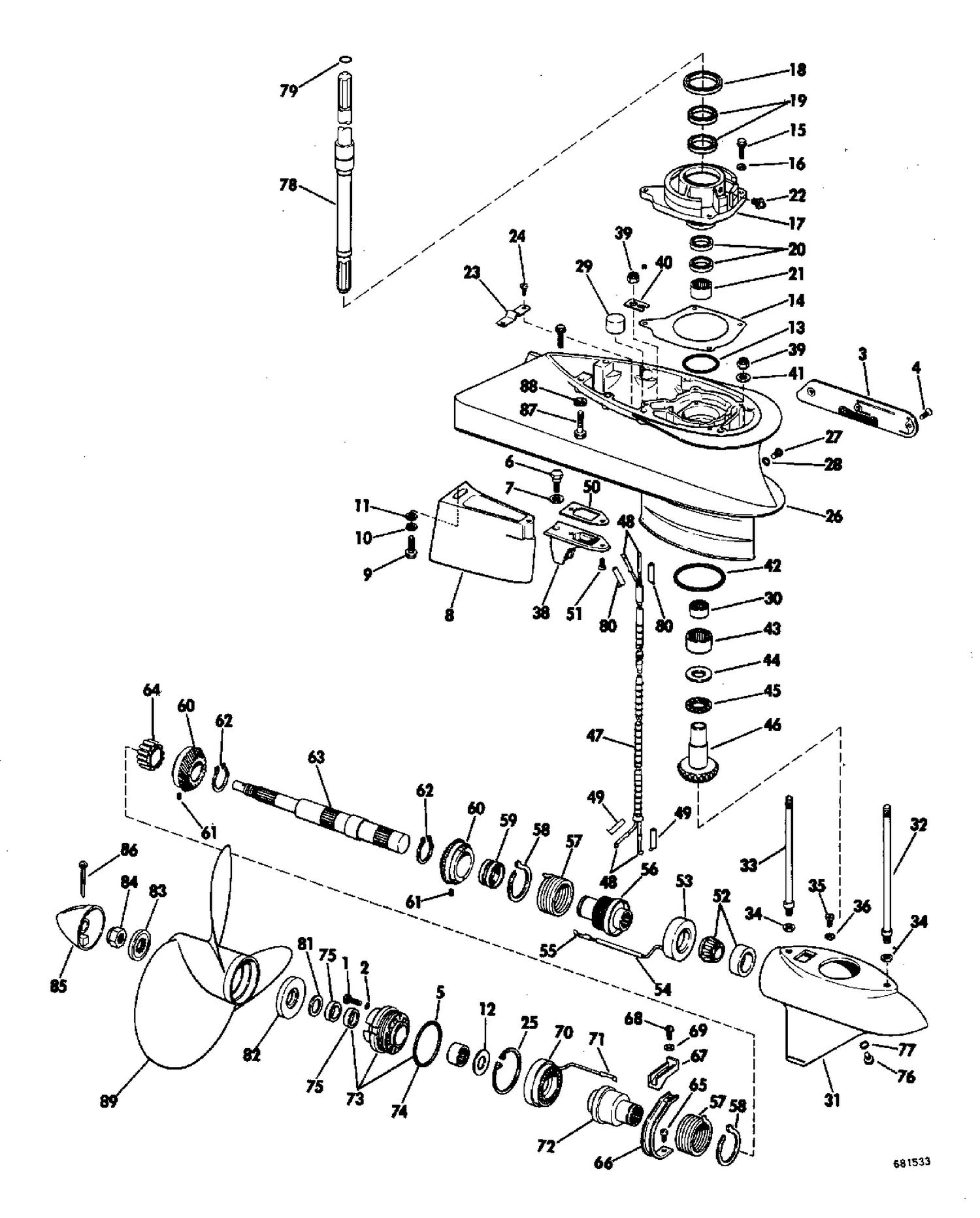

| Ref | Part Number | Description |
|---|
| 1 |
0308211 |
SCREW |
| 2 |
0307853 |
O RING |
| 3 |
0378971 |
COVER & SCREEN ASSEMBLY |
| 5 |
0307082 |
O RING |
| 6 |
0308605 |
SCREW |
| 7 |
0308681 |
WASHER |
| 8 |
0313961 |
RUDDER |
| 9 |
0309222 |
SCREW |
| 10 |
0309293 |
LOCKWASHER |
| 11 |
0309543 |
RONDELLE |
| 12 |
0308216 |
THRUST WASHER |
| 14 |
0309204 |
GASKET |
| 15 |
0308707 |
SCREW |
| 17 |
0382481 |
SWIVEL BEARING RETAINER ASSEMBLY |
| 21 |
0382543 |
NEEDLE BEARING ASSEMBLY |
| 23 |
0308599 |
CLAMP |
| 24 |
0308691 |
SCREW |
| 25 |
0307080 |
RETAINING RING |
| 26 |
0382491 |
GEARCASE ASSEMBLY, Upper |
| 29 |
0308604 |
PLUG |
| 31 |
0382441 |
GEARCASE ASSEMBLY, Lower |
| 32 |
0313502 |
STUD, Front |
| 33 |
0313501 |
STUD, Rear |
| 36 |
0308279 |
WASHER |
| 37 |
0308707 |
SCREW |
| 38 |
0379041 |
INTAKE & SCREEN ASSEMBLY |
| 40 |
0308277 |
RETAINER |
| 42 |
0307103 |
SEAL |
| 43 |
0378264 |
BEARING, Pinion |
| 44 |
0307836 |
THRUST WASHER |
| 45 |
0378262 |
BEARING, Thrust, pinion |
| 46 |
0308561 |
GEAR, Pinion |
| 47 |
0382473 |
CABLE ASSEMBLY |
| 50 |
0309340 |
GASKET |
| 52 |
0377874 |
BEARING, Propeller shaft |
| 53 |
0378549 |
COIL ASSEMBLY, Forward |
| 54 |
0308317 |
TUBING |
| 56 |
0378519 |
CLUTCH HUB ASSEMBLY-FRONT |
| 57 |
0311030 |
SPRING |
| 58 |
0309042 |
SPACER |
| 59 |
0308276 |
BUSHING |
| 60 |
0308274 |
GEAR |
| 61 |
0308215 |
SCREW, Set |
| 62 |
0308213 |
RETAINING RING |
| 63 |
0382719 |
PROPELLER SHAFT |
| 64 |
0378970 |
BEARING, Reverse gear |
| 65 |
0308275 |
SCREW |
| 66 |
0308273 |
GUARD |
| 67 |
0308726 |
RETAINER |
| 68 |
0308727 |
SCREW |
| 69 |
0308730 |
WASHER |
| 70 |
0378665 |
COIL & RETAINER ASSY. REAR |
| 72 |
0378625 |
CLUTCH HUB ASSY-REAR |
| 73 |
0382718 |
GEARCASE HEAD ASSEMBLY |
| 78 |
0382482 |
DRIVESHAFT |
| 81 |
0313925 |
THRUST WASHER |
| 82 |
0382722 |
THRUST BUSHING ASSY |
| 83 |
0313922 |
THRUST WASHER |
| 84 |
0313731 |
NUT, Propeller shaft |
| 85 |
0313962 |
PROPELLER NUT |
| 86 |
0307244 |
COTTER PIN |
| 87 |
0306503 |
SCREW, Short |
| 89 |
0382767 |
PROPELLER, 14 x 10 |
| 89 |
0382768 |
PROPELLER, 14 x 12 |
| 89 |
0382769 |
PROPELLER, 14 x 14 |
| 89 |
0382770 |
PROPELLER, 13-3/4 x 16 |
| 0382414 |
0382414 |
GEARCASE ASESMBLY,Complete |
