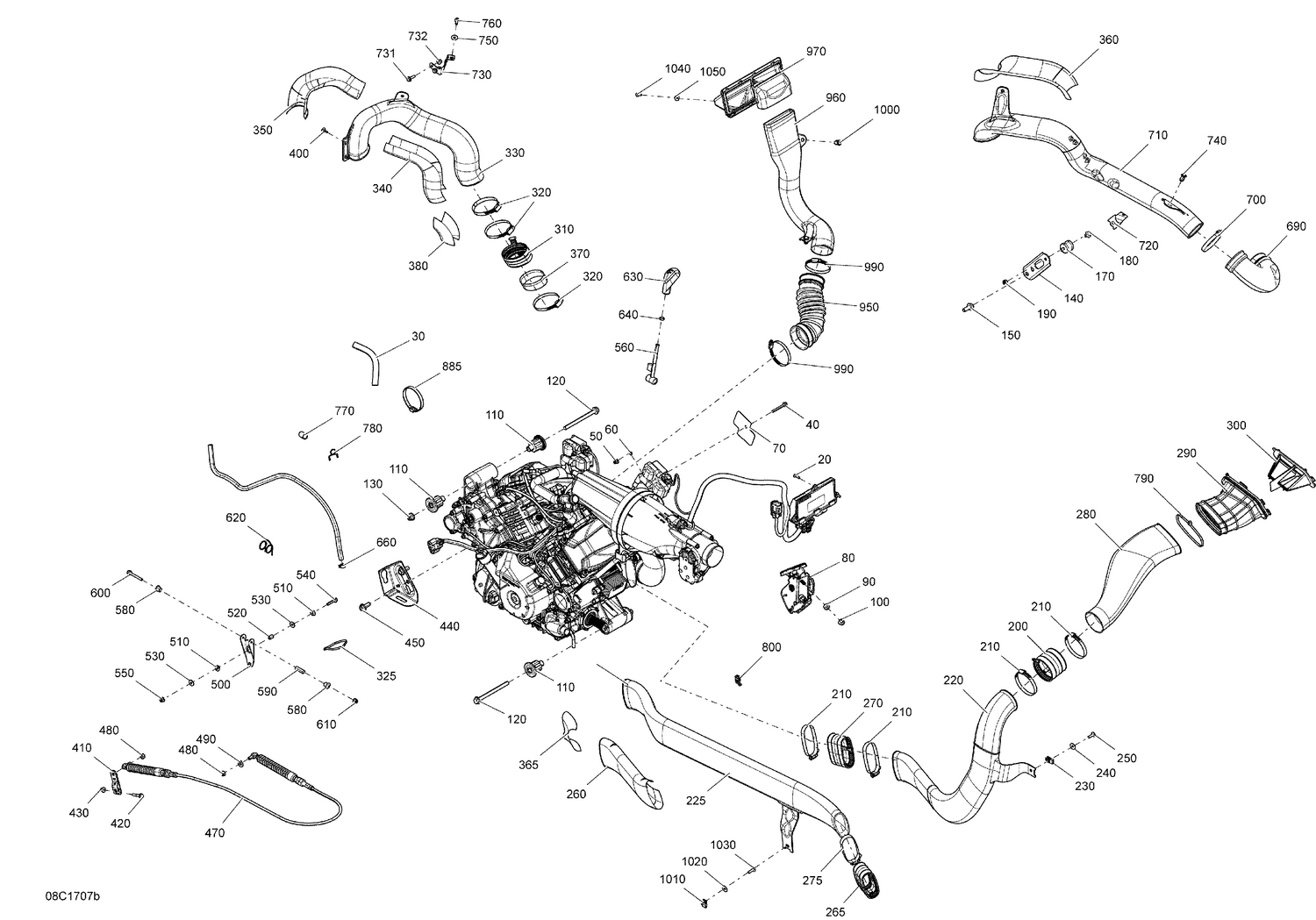

01- Engine - 1000R EFI Except Package XMR
Parts (89)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 250000720 | Torx Screw K50 X 16 |
| 30 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 40 | 207665044 | Hex. Flange Screw M6 X 50 |
| 50 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 60 | 234461608 | External Serrated Lock Washer 6 mm |
| 70 | 710000073 | Insulator Pad |
| 80 | 707001166 | Accelerator Pedal |
| 90 | 707000848 | Bushing |
| 100 | 233081416 | Hex. Flange Nut M8 |
| 110 | 707001170 | Anti Vibration Buffer |
| 120 | 230602546 | Hex. Flange Screw M10 X 125 |
| 130 | 233201436 | Hex. Flange Elastic Nut M10 |
| 140 | 707000707 | Upper Engine Bracket |
| 150 | 207602544 | Hex. Flange Screw M10 X 25 |
| 170 | 707000949 | Rubber Isolator |
| 180 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 190 | 232581414 | Hex. Elastic Stop Nut M8 |
| 200 | 707002585 | Flexibale Adaptor This part replaces 707001467. |
| 210 | 293650091 | Norma Clamp |
| 220 | 707001339 | Air Inlet |
| 225 | 707001228 | Air Inlet |
| 230 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 240 | 250200082 | Flat Washer |
| 250 | 250000722 | Torx Screw M6 X 20 |
| 260 | 707001346 | Reflector |
| 265 | 707002585 | Flexibale Adaptor This part replaces 707001467. |
| 270 | 707002585 | Flexibale Adaptor This part replaces 707001467. |
| 275 | 293650091 | Norma Clamp |
| 280 | 707000909 | Primary Air Intake |
| 290 | 707000908 | Adaptor |
| 300 | 707001344 | CVT Filter |
| 310 | 707001274 | Adaptor |
| 320 | 293650118 | Norma Gear Clamp |
| 325 | 293750008 | Tie Wrap 368 mm |
| 330 | 707001243 | CVT Outlet |
| 340 | 707001284 | Reflector |
| 350 | 707001360 | Reflector |
| 360 | 707001286 | Reflector |
| 365 | 707000991 | Reflective Sheet |
| 370 | 707000988 | Reflector |
| 380 | 707000991 | Reflective Sheet |
| 400 | 250000725 | Screw M4 X 16 |
| 410 | 707000911 | Lever |
| 420 | 207663544 | Hex. Flange Screw M6 X 35 |
| 430 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 440 | 707000919 | Cable Support |
| 450 | 207602544 | Hex. Flange Screw M10 X 25 |
| 470 | 707001283 | Shifting Cable |
| 480 | 232581414 | Hex. Elastic Stop Nut M8 |
| 490 | 234001410 | Flat Washer 10 mm |
| 500 | 707000828 | Lower Lever Arm |
| 510 | 707000847 | Flanged Bushing |
| 520 | 707000801 | Bushing |
| 530 | 234062410 | Flat Washer 6 mm |
| 540 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 550 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 560 | 707000711 | Upper Lever Arm |
| 580 | 707000869 | Flanged Bushing |
| 590 | 707001376 | Bushing |
| 600 | 207665044 | Hex. Flange Screw M6 X 50 |
| 610 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 620 | 707000750 | Lever Arm Spring |
| 630 | 707000284 | Lever Handle |
| 640 | 232180491 | Hex. Jam Nut M8 |
| 660 | 414415200 | Spring Clamp |
| 690 | 707001229 | Front Adaptor |
| 700 | 293650118 | Norma Gear Clamp |
| 710 | 707001230 | CVT Outlet |
| 720 | 707001231 | Front Support |
| 730 | 707001232 | Rear Support |
| 731 | 207662044 | Hex. Flange Screw M6 X 20 |
| 732 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 740 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 750 | 234062410 | Flat Washer 6 mm |
| 760 | 210261650 | Hex. Flange Screw M6 X 16 |
| 770 | 707001185 | Plug |
| 780 | 707800506 | Retainer Clip |
| 790 | 293750008 | Tie Wrap 368 mm |
| 800 | 710002899 | Clip Tie-Rap |
| 885 | 293750065 | Tie Rap 367mm |
| 950 | 707001400 | Flexible Adaptor |
| 960 | 707001401 | Air Inlet |
| 970 | 707001422 | Filter |
| 990 | 293650091 | Norma Clamp |
| 1000 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1010 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 1020 | 250200082 | Flat Washer |
| 1030 | 250000722 | Torx Screw M6 X 20 |
| 1040 | 250000720 | Torx Screw K50 X 16 |
