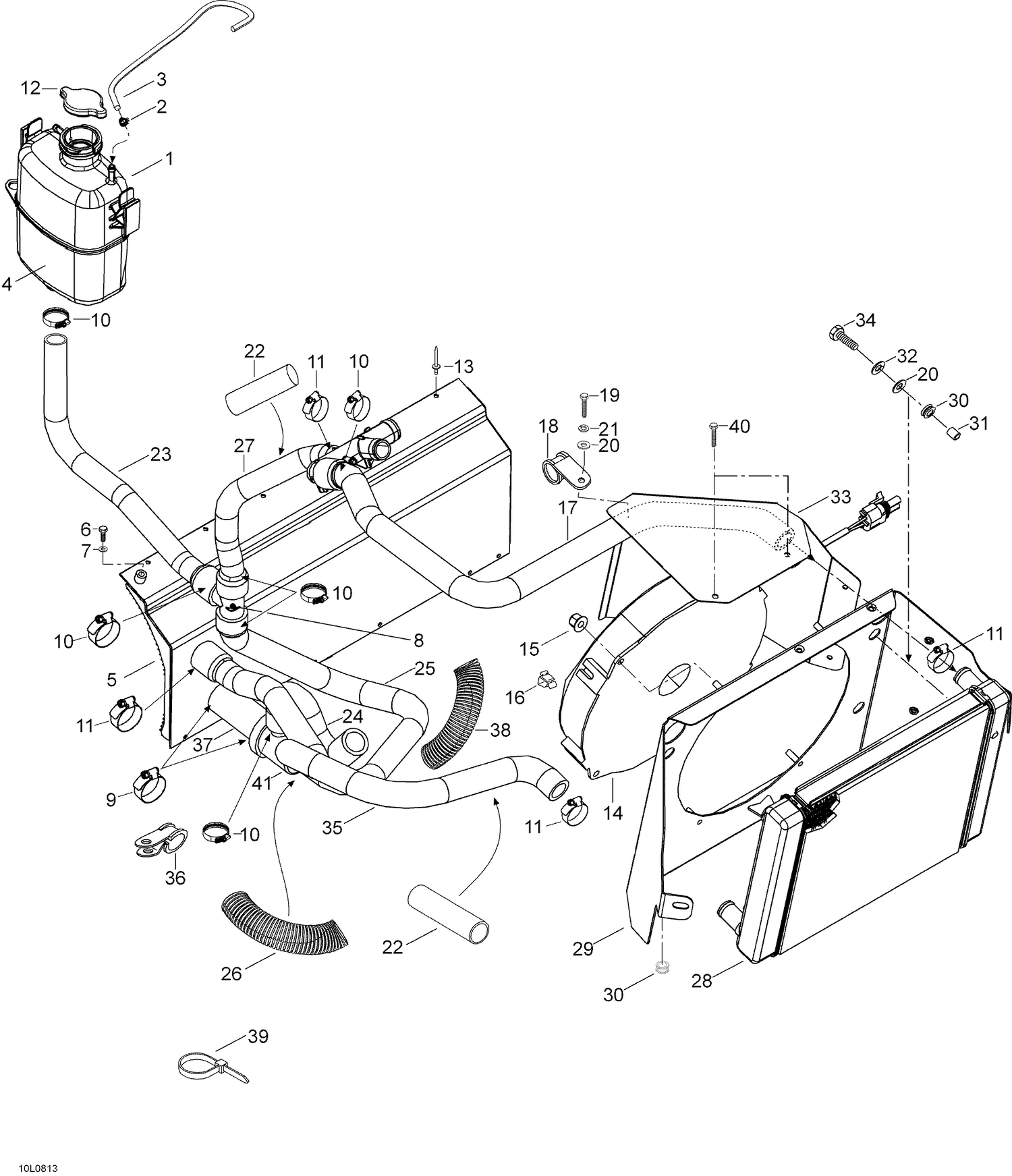

| Ref | Part Number | Description |
|---|
| 1 |
276000086 |
Filler neck ass'y |
| 2 |
605627003 |
Clamp |
| 3 |
39038 |
Hose |
| 4 |
44110 |
Aluminum Foil |
| 5 |
605253699 |
Radiator |
| 6 |
40114 |
Screw M6 x 10 |
| 7 |
Not |
Available As Spare Part - Seal |
| 8 |
509000219 |
T-fitting |
| 9 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 10 |
605627002 |
CLAMP - Call your local BRP dealership |
| 11 |
605627004 |
Clamp |
| 12 |
509000180 |
Radiator Pressure Cap |
| 13 |
36108 |
Rivet |
| 14 |
42091 |
Axail Motor Fan SPAL - Call your local BRP dealership |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 16 |
414227300 |
Clip |
| 17 |
605253694 |
HOSE - Call your local BRP dealership |
| 18 |
27039 |
Clamp |
| 19 |
40029 |
Screw M6 x 16 |
| 20 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 22 |
39062 |
Al-Tubing |
| 23 |
605253689 |
HOSE - Call your local BRP dealership |
| 24 |
605253692 |
HOSE - Call your local BRP dealership |
| 25 |
605253691 |
HOSE - Call your local BRP dealership |
| 26 |
28036 |
Tubing |
| 27 |
605253690 |
HOSE - Call your local BRP dealership |
| 28 |
605353238 |
RADIATOR 250 - Call your local BRP dealership |
| 29 |
605253698 |
SUPPORT - Call your local BRP dealership |
| 30 |
709000582 |
Grommet This part replaces 293720053. |
| 31 |
605453745 |
Sleeve |
| 32 |
20052 |
Lock washer A6 |
| 33 |
605254458 |
DEFLECTOR PLATE - Call your local BRP dealership |
| 34 |
210251650 |
Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 35 |
605253693 |
HOSE - Call your local BRP dealership |
| 36 |
27039 |
Clamp |
| 37 |
605253695 |
HOSE - Call your local BRP dealership |
| 38 |
27127 |
Tubing |
| 39 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 40 |
40030 |
Screw M6 x 20 |
