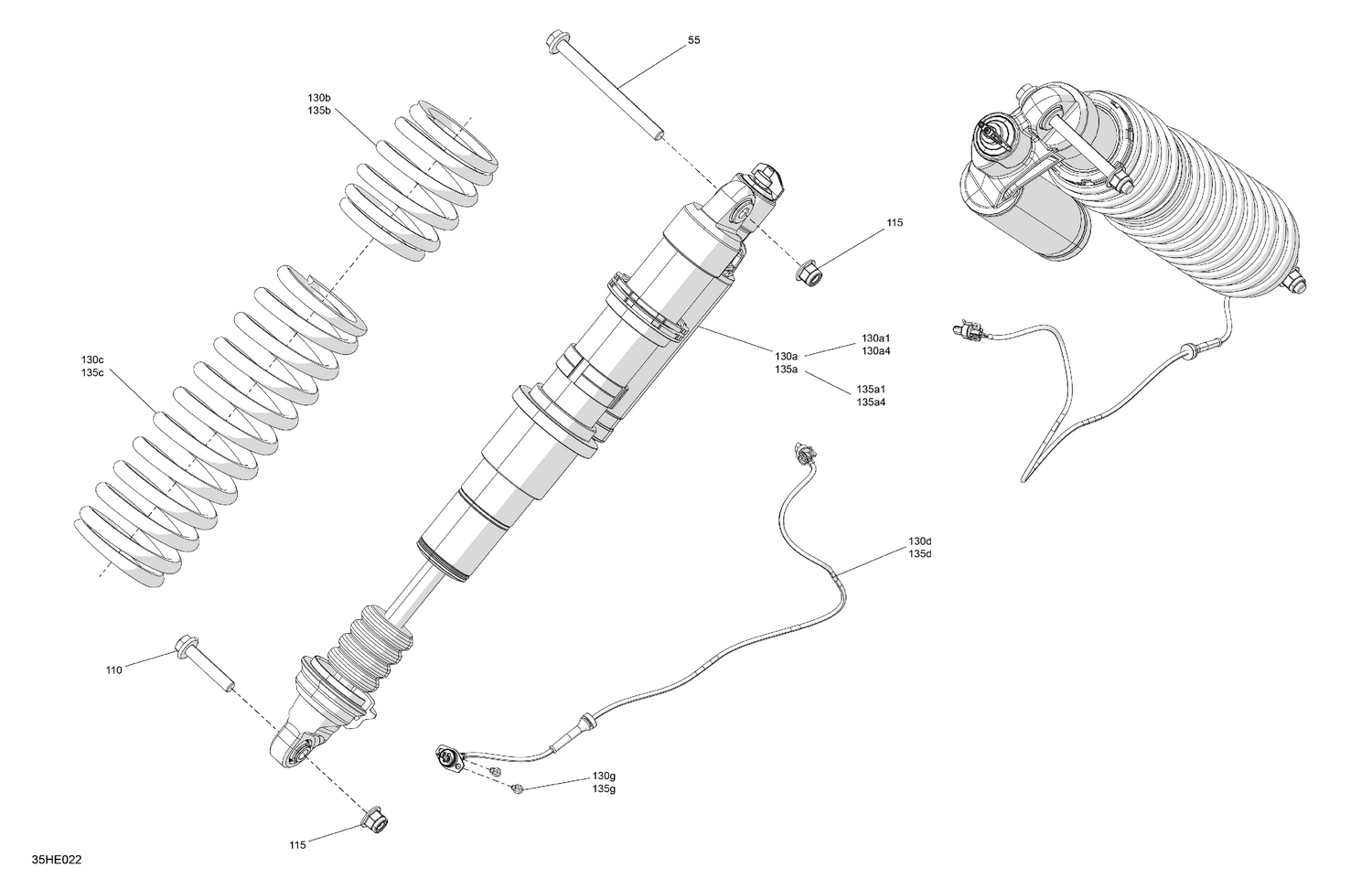

05- Suspension - Front Shocks
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 55 | 250000861 | Flange Screw M12 X 145 |
| 110 | 250000857 | Flange Screw M12 X 60 |
| 115 | 250001195 | Elastic Flange Nut M12 |
| 130a1 | 706203583 | Connector Support |
| 130a4 | 706204583 | Anchorage |
| 130b | 706205339 | Deep Black, Compression Spring |
| 130c | 706205350 | Deep Black, Compression Spring |
| 130d | 710006388 | Front Suspension Wiring Harness Ass'y |
| 130g | 205551060 | Socket Head Screw M5 X 10 |
| 135a1 | 706203583 | Connector Support |
| 135a4 | 706204583 | Anchorage |
| 135b | 706205339 | Deep Black, Compression Spring |
| 135c | 706205350 | Deep Black, Compression Spring |
| 135d | 710006388 | Front Suspension Wiring Harness Ass'y |
