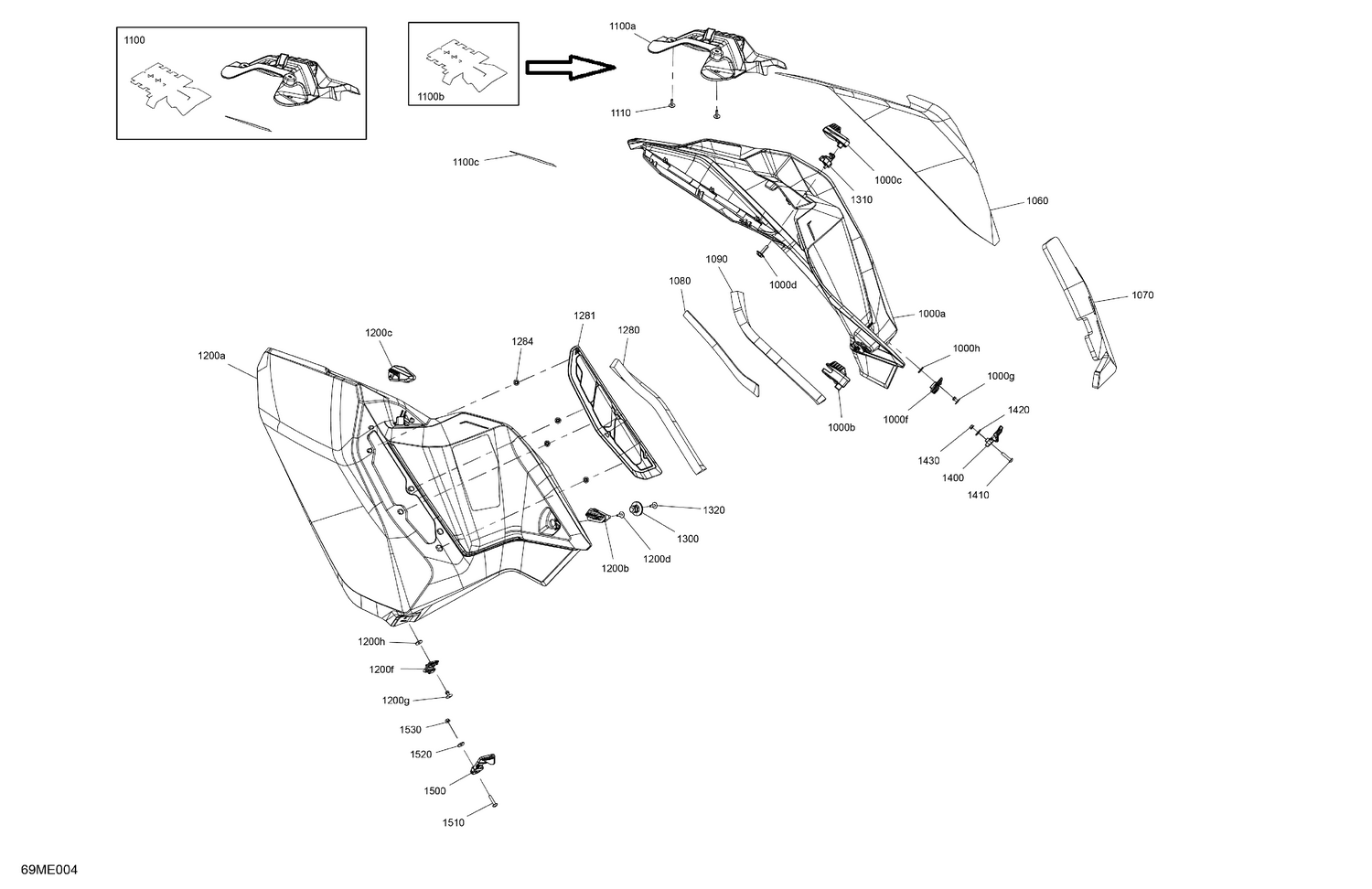

07- Body - Side Panels
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1000a | 517306875 | Deep Black, RH Panel |
| 1000b | 517305773 | RH Rear Latch |
| 1000c | 517305979 | RH Front Latch |
| 1000d | 250000725 | Screw M4 X 16 |
| 1000f | 517306311 | RH Hook |
| 1000g | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 1000h | 517124300 | Washer |
| 1060 | 517306188 | RH Central Panel Foam |
| 1070 | 517306586 | RH Rear Panel Foam |
| 1080 | 517306262 | Rubber Sheet |
| 1090 | 517306480 | RH Rear Panel Foam |
| 1100a | 517308289 | RH Front Grille Ass'y |
| 1100b | 517308787 | Foil Kit |
| 1100c | 517307667 | Heat Shield |
| 1110 | 250000725 | Screw M4 X 16 |
| 1200a | 517307324 | Deep Black, LH Panel |
| 1200b | 517305774 | LH Rear Latch |
| 1200c | 517305980 | LH Front Latch |
| 1200d | 250000725 | Screw M4 X 16 |
| 1200f | 517306312 | LH Hook |
| 1200g | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 1200h | 517124300 | Washer |
| 1280 | 517306479 | LH Rear Panel Foam |
| 1281 | 517306944 | LH Grille |
| 1284 | 732610072 | Push Nut |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
| 1320 | 250000725 | Screw M4 X 16 |
| 1400 | 517306309 | RH Lower Latch |
| 1410 | 250000762 | Torx Screw M5 X 25 |
| 1420 | 391301600 | Washer |
| 1430 | 233151414 | Hex. Flange Nut M5 |
| 1500 | 517306310 | LH Lower Latch |
| 1510 | 250000762 | Torx Screw M5 X 25 |
| 1520 | 391301600 | Washer |
