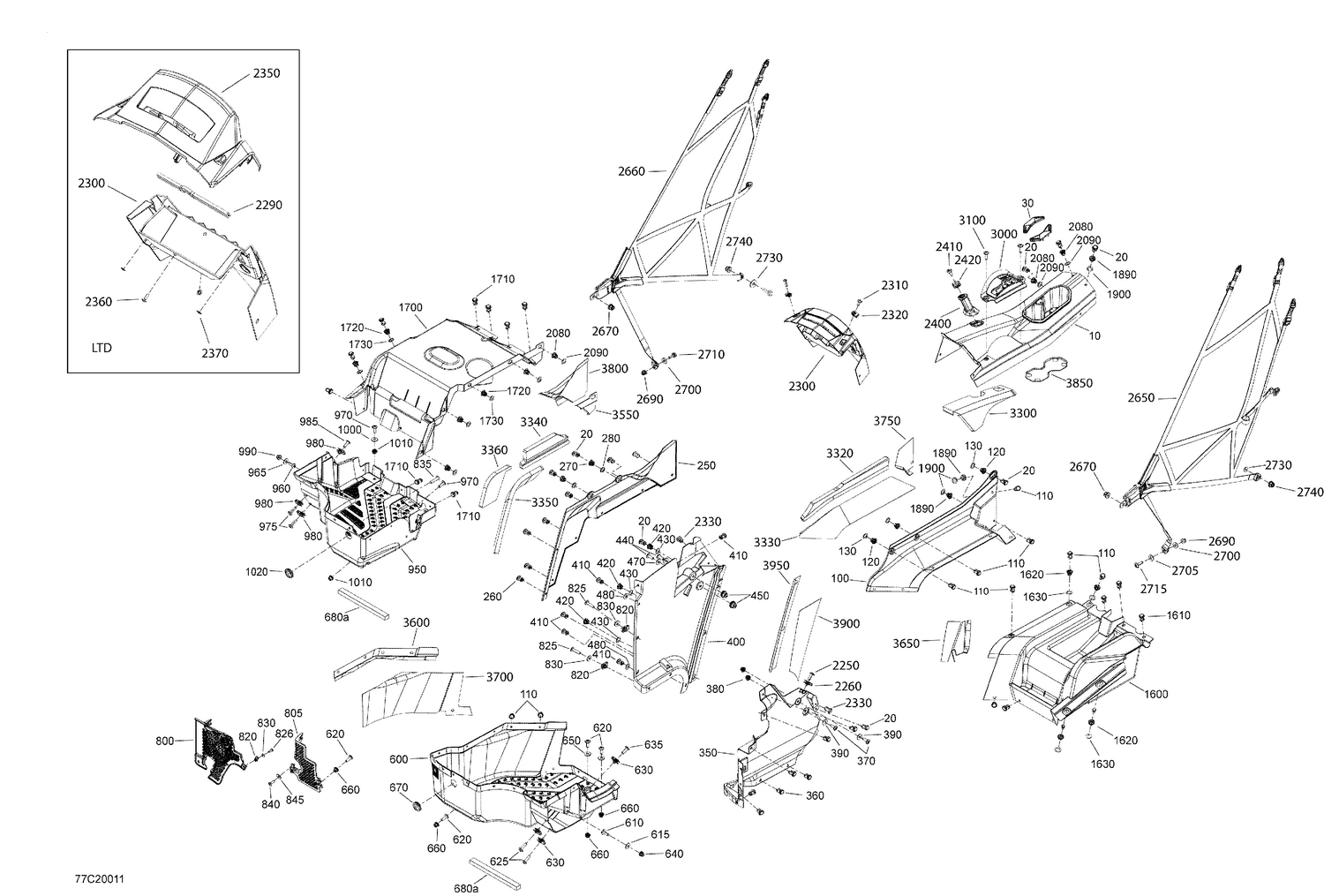

09- Cab Interior - Lower part
Parts (103)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 293150230 | Tuflok Plastic Rivet |
| 30 | 707900036 | Cup Retainer |
| 100 | 707900001 | LH Side Console |
| 110 | 293150230 | Tuflok Plastic Rivet |
| 120 | 707900133 | Insert |
| 130 | 503189273 | Washer |
| 250 | 707900002 | RH Side Console |
| 260 | 293150230 | Tuflok Plastic Rivet |
| 270 | 707900133 | Insert |
| 280 | 503189273 | Washer |
| 350 | 707900193 | Front Side Dash Panel |
| 360 | 293150230 | Tuflok Plastic Rivet |
| 370 | 250000722 | Torx Screw M6 X 20 |
| 380 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 390 | 234062670 | Stainless Steel Flat Washer |
| 410 | 293150230 | Tuflok Plastic Rivet |
| 420 | 707900133 | Insert |
| 430 | 503189273 | Washer |
| 440 | 250000722 | Torx Screw M6 X 20 |
| 450 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 470 | 234062670 | Stainless Steel Flat Washer |
| 480 | 506151252 | Washer |
| 600 | 707900022 | LH Lower Floor |
| 610 | 250000712 | Torx Screw M6 X 20 |
| 615 | 234062670 | Stainless Steel Flat Washer |
| 620 | 250000722 | Torx Screw M6 X 20 |
| 625 | 250000807 | Torx Truss Screw M6 X 25 |
| 630 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 635 | 250000722 | Torx Screw M6 X 20 |
| 640 | 233261494 | Hex. Flange Elastic Nut M6 |
| 650 | 234062670 | Stainless Steel Flat Washer |
| 660 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 670 | 293250242 | Rubber Cover |
| 680a | 219704380 | SEAL-TRAY 300MM LONG - Call your local BRP dealership |
| 800 | 707900178 | Grille |
| 805 | 707900180 | Grille |
| 820 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 825 | 250000843 | Torx Truss Screw M6 X 30 |
| 826 | 250000722 | Torx Screw M6 X 20 |
| 830 | 234062670 | Stainless Steel Flat Washer |
| 835 | 250000843 | Torx Truss Screw M6 X 30 |
| 840 | 250000720 | Torx Screw K50 X 16 |
| 845 | 250200025 | Washer M5 |
| 950 | 707900023 | RH Lower Floor |
| 960 | 250000712 | Torx Screw M6 X 20 |
| 965 | 234062670 | Stainless Steel Flat Washer |
| 970 | 250000722 | Torx Screw M6 X 20 |
| 975 | 250000807 | Torx Truss Screw M6 X 25 |
| 980 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 985 | 250000722 | Torx Screw M6 X 20 |
| 990 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1000 | 234062670 | Stainless Steel Flat Washer |
| 1010 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1020 | 293250242 | Rubber Cover |
| 1600 | 707900218 | LH Under Seat Plate |
| 1610 | 293150230 | Tuflok Plastic Rivet |
| 1620 | 707900133 | Insert |
| 1630 | 503189273 | Washer |
| 1700 | 707900006 | RH Under Seat Plate |
| 1710 | 293150230 | Tuflok Plastic Rivet |
| 1720 | 707900133 | Insert |
| 1730 | 503189273 | Washer |
| 1890 | 707900133 | Insert |
| 1900 | 503189273 | Washer |
| 2080 | 707900133 | Insert |
| 2090 | 503189273 | Washer |
| 2250 | 250000722 | Torx Screw M6 X 20 |
| 2260 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2310 | 250000724 | Torx Screw M5 X 20 |
| 2320 | 250000958 | Panel Nut M5 X 0.8 |
| 2330 | 293150230 | Tuflok Plastic Rivet |
| 2400 | 707900011 | Passenger Handle |
| 2410 | 250000722 | Torx Screw M6 X 20 |
| 2420 | 707900048 | Connector Tube |
| 2650 | 707900237 | Front LH Safety Net |
| 2660 | 707900238 | Front RH Safety Net |
| 2670 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2690 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2700 | 234062410 | Flat Washer 6 mm |
| 2705 | 234062670 | Stainless Steel Flat Washer |
| 2710 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2715 | 250000758 | Torx Screw M6 X 25 |
| 2730 | 234082410 | Flat Washer 8 mm |
| 2740 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3000 | 707900070 | Lever Indicator |
| 3100 | 250000728 | Torx Screw M6 X 25 |
| 3300 | 707900619 | Front Central Console Foam |
| 3320 | 707900620 | Left Upper Lateral Console Foam |
| 3330 | 707900621 | LH Lower Lateral Console Foam |
| 3340 | 707900622 | RH Lateral Console Foam |
| 3350 | 707900623 | RH Lateral Console Foam |
| 3360 | 707900624 | RH Lateral Console Foam |
| 3550 | 707900148 | Heat Sheet |
| 3600 | 707900149 | Heat Sheet |
| 3650 | 707900150 | Heat Sheet |
| 3700 | 707900151 | Heat Sheet |
| 3750 | 707900146 | Heat Sheet |
| 3800 | 707900147 | Heat Sheet |
| 3850 | 707900145 | Heat Sheet |
| 3900 | 707900190 | Heat Sheet |
| 3950 | 707900191 | Heat Sheet |
| 4000 | 250000742 | Torx Screw M5 X 14 |
| 4005 | 250200040 | Flat Washer |
