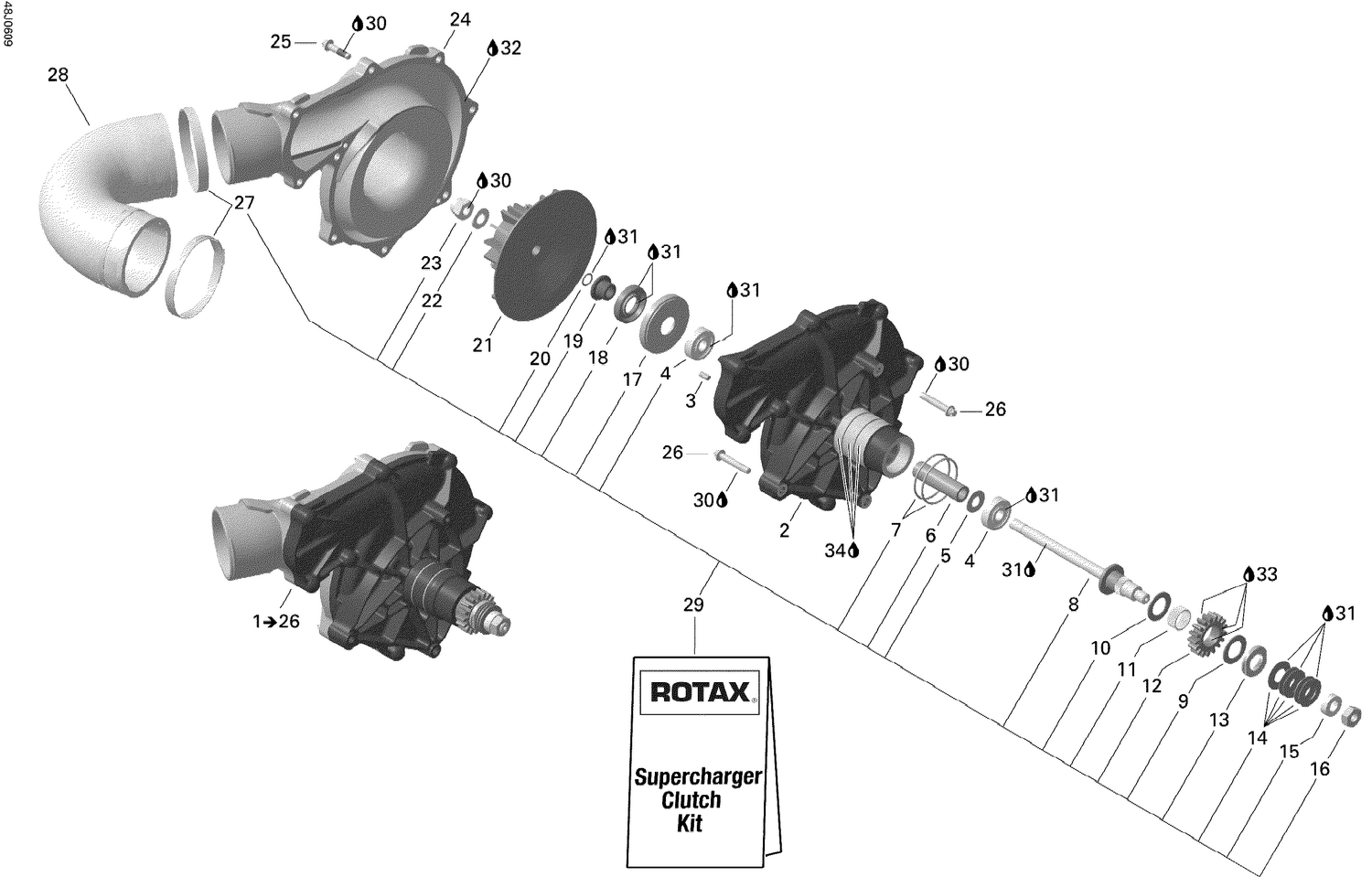

| Ref | Part Number | Description |
|---|
| 2 |
420867180 |
Compressor Base Plate This part replaces 420867165. |
| 3 |
420929650 |
Drive Pin 5 X 10 |
| 4 |
420832713 |
Bearing Ball This part replaces 420832710. |
| 5 |
420227685 |
THRUST WASHER - Call your local BRP dealership |
| 6 |
420947023 |
Spacer |
| 7 |
420650270 |
O-Ring |
| 8 |
Not |
Available As Spare Part - Compressor Shaft |
| 9 |
Not |
Available As Spare Part - Friction Washer |
| 10 |
Not |
Available As Spare Part - Friction Washer |
| 11 |
420632435 |
Needle Pin This part replaces 420632430. |
| 12 |
Not |
Available As Spare Part - Drive Gear, 16 Teeth |
| 13 |
420926377 |
LOCK WASHER - Call your local BRP dealership |
| 14 |
420939220 |
SPRING WASHER - Call your local BRP dealership |
| 15 |
420926376 |
LOCK WASHER - Call your local BRP dealership |
| 16 |
420942950 |
HEX. NUT - Call your local BRP dealership |
| 17 |
420926393 |
THRUST WASHER - Call your local BRP dealership |
| 18 |
420950940 |
Oil Seal |
| 19 |
420947012 |
STEP COLLAR - Call your local BRP dealership This part replaces 420947010. |
| 20 |
420950950 |
O-Ring |
| 21 |
420867191 |
Compressor Impeller |
| 22 |
420927413 |
SHIM - Call your local BRP dealership |
| 23 |
420842833 |
CAP NUT - Call your local BRP dealership |
| 24 |
420867154 |
Compressor Housing This part replaces 420867152. |
| 25 |
420641238 |
Torx Flange Screw M6 X 25 This part replaces 420440237. |
| 26 |
420440274 |
Torx Flange Screw M6 X 35 This part replaces 420440277. |
| 27 |
420851703 |
Gear Clamp |
| 28 |
420660151 |
FORMED HOSE - Call your local BRP dealership This part replaces 420660152. |
| 29 |
420881102 |
Supercharger Kit This part replaces 420881946. |
| 30 |
293800060 |
Loctite 243, 10 ml |
| 31 |
293600121 |
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 219700346. |
| 32 |
293800081 |
Loctite 5910, 300 ml |
| 33 |
293550021 |
Isoflex Grease, TOPAS NB52, 50 g |
