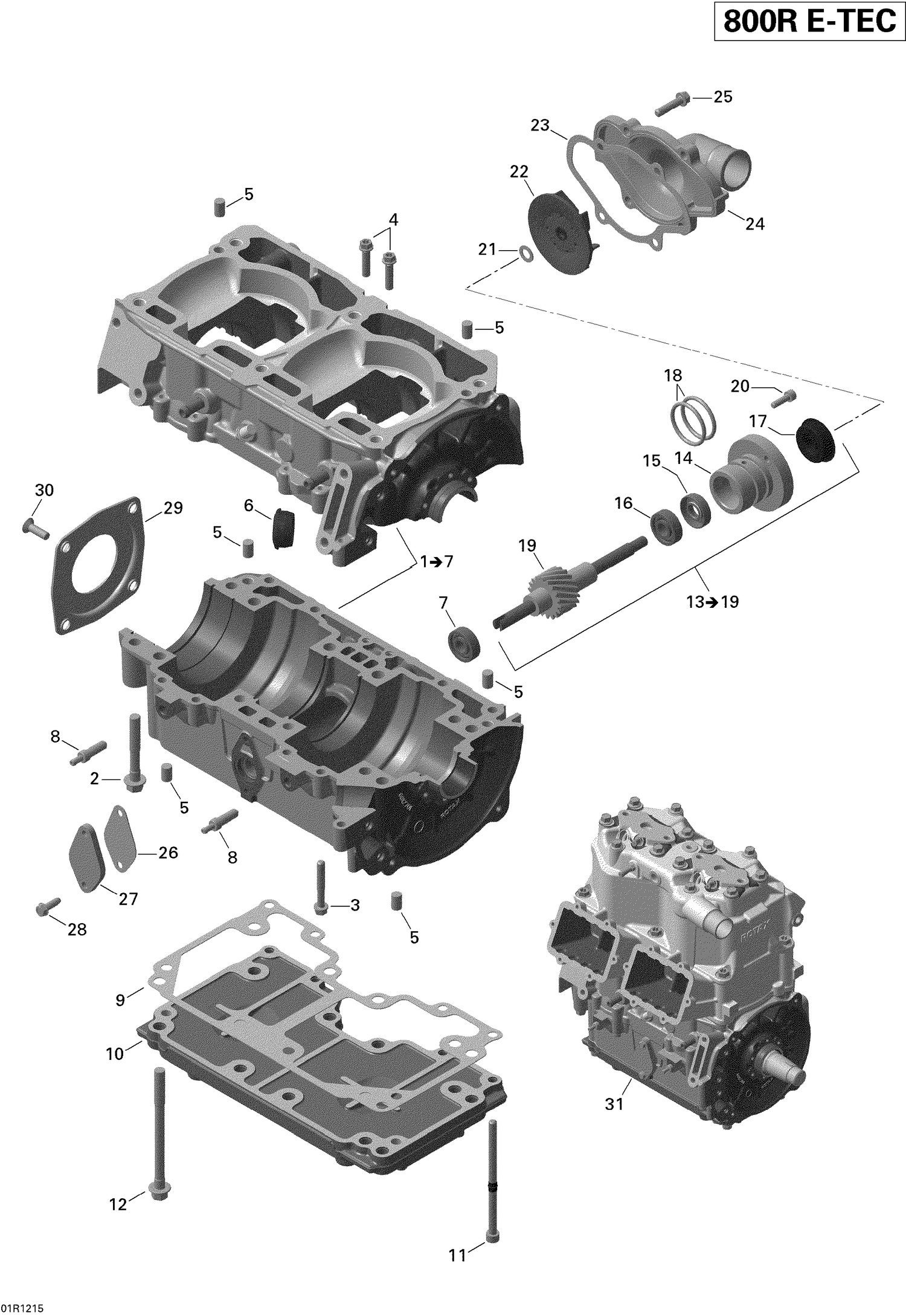

| Ref | Part Number | Description |
|---|
| 2 |
420941627 |
Hex. Screw M8 X 56.5 |
| 3 |
420440282 |
Torx Flange Screw M6 X 40 |
| 4 |
420440234 |
Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 5 |
420632010 |
Center Pin 8 X 12 |
| 6 |
420660890 |
Cable Grommet |
| 7 |
420232100 |
Ball Bearing |
| 8 |
420956071 |
Check Valve This part replaces 420956070. |
| 9 |
420430070 |
Gasket Engine Support |
| 10 |
420812683 |
ENGINE SUPPORT - Call your local BRP dealership |
| 11 |
420241607 |
Socket HD Screw M6 x 100 This part replaces 420241606. |
| 12 |
420941518 |
Screw M8x105 This part replaces 420941517. |
| 14 |
Not |
Available As Spare Part - Step Collar |
| 15 |
420230195 |
Oil Seal This part replaces 420230196. |
| 16 |
420232100 |
Ball Bearing |
| 17 |
420650371 |
Rotary Seal This part replaces 420650370. |
| 18 |
420950890 |
O-Ring |
| 19 |
Not |
Available As Spare Part - Water Pump Shaft |
| 20 |
420840514 |
Allen Screw M5 x 16 This part replaces 420840511. |
| 21 |
420944033 |
Washer 8.4 |
| 22 |
420922805 |
Water Impeller |
| 23 |
420430051 |
Joint Couv.Pom.*Gasket Cover Water Pump This part replaces 420430050. |
| 24 |
420822280 |
Water Pump Housing |
| 25 |
420440234 |
Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 26 |
420931568 |
Gasket This part replaces 420931566. |
| 27 |
420810827 |
Cover Plate This part replaces 420810825. |
| 28 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 29 |
420812422 |
Oil Seal Cover This part replaces 420812420. |
| 30 |
420941436 |
Screw M6 X 20 |
