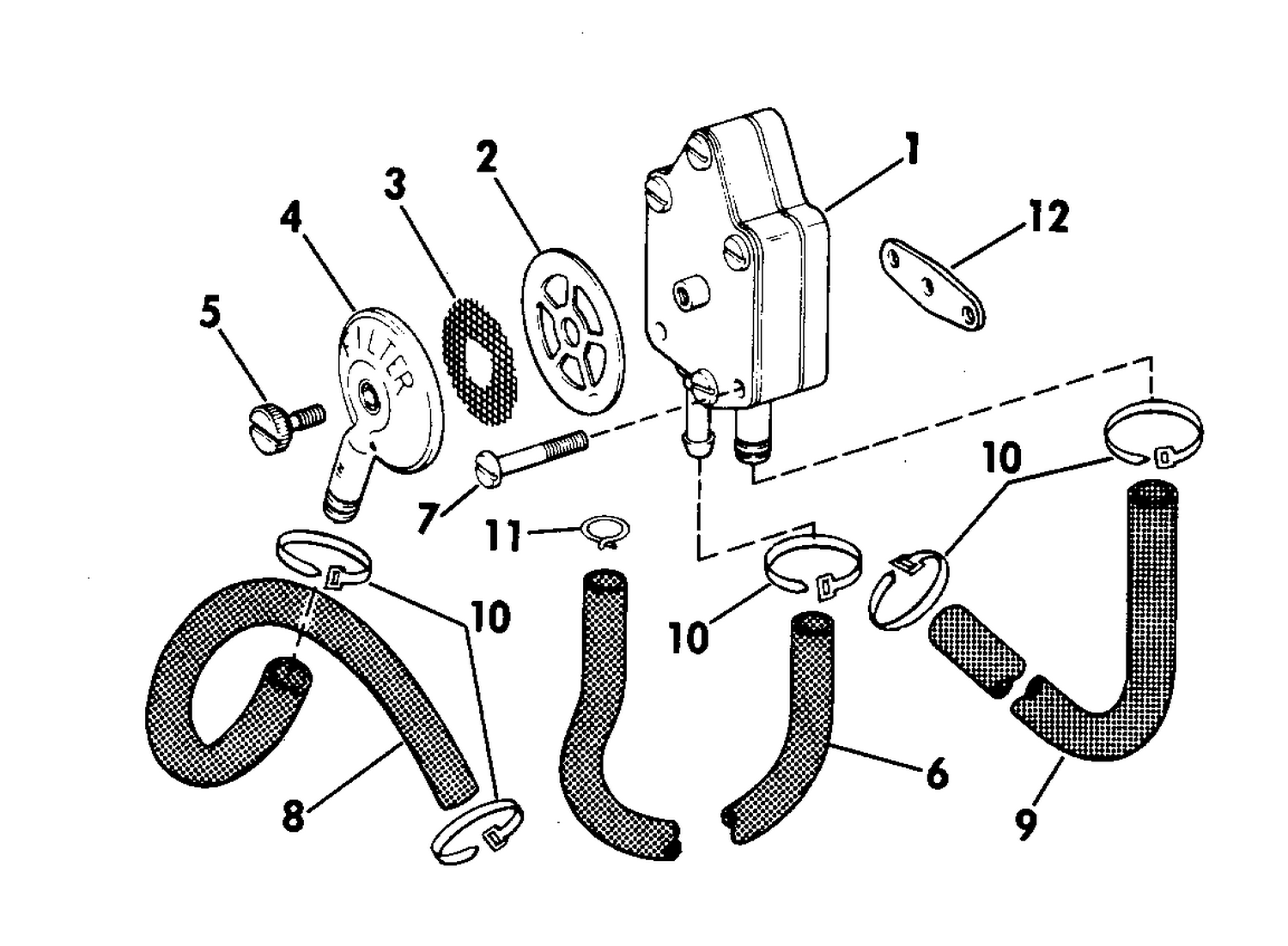

FUEL PUMP
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438556 | FUEL PUMP ASSY. This part replaces 0388268. |
| 1 | 0438559 | FUEL PUMP ASSY., Lower This part replaces 0385784. |
| 2 | 0338879 | GASKET, Cap to pump, upper This part replaces 0312679. |
| 4 | 0322759 | CAP, Filter |
| 7 | 0328717 | NUT, Ground lead This part replaces 0308777. |
| 9 | 0332845 | HOSE This part replaces 0319739. |
| 9 | 0333446 | FLEXIBLE, entrée d'eau This part replaces 0320947. |
| 10 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 | 0309523 | CLAMP |
