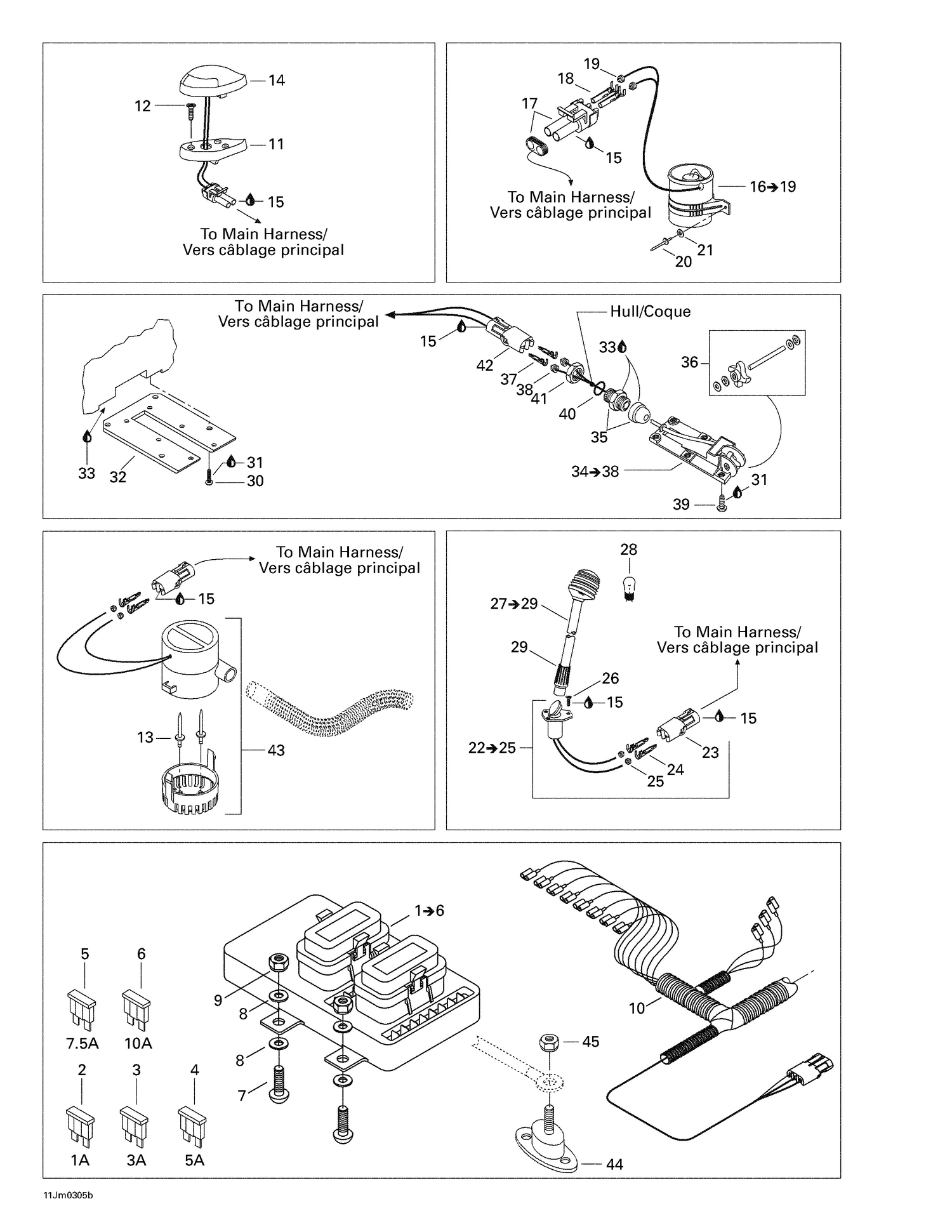

| Ref | Part Number | Description |
|---|
| 2 |
409012800 |
FUSE, 1 AMPERE - Call your local BRP dealership |
| 3 |
278001196 |
FUSE, 3 AMPERES - Call your local BRP dealership |
| 4 |
278000344 |
Fuse, 5 Amperes |
| 5 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 6 |
278001197 |
Fuse, 10 Amperes |
| 7 |
208662560 |
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 8 |
234062600 |
Flat Washer M6, Stainless |
| 9 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 10 |
204470835 |
Accessories Harness |
| 11 |
204470072 |
FRONT LAMP SUPPORT - Call your local BRP dealership |
| 12 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 13 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 14 |
204470311 |
Front Lamp |
| 15 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 17 |
278000220 |
Male Connector, 2 Circuits |
| 18 |
278000223 |
Female Terminal |
| 19 |
278000218 |
Wire Seal |
| 20 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 21 |
234052600 |
Flat Washer 5 mm, Stainless |
| 23 |
278000217 |
Female Housing, 2 Circuits |
| 24 |
278000222 |
Male Terminal |
| 25 |
278000218 |
Wire Seal |
| 26 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 28 |
204470053 |
Bulb |
| 29 |
204470350 |
COLLAR - Call your local BRP dealership |
| 30 |
208563560 |
Phillips Screw M6 X 35 |
| 31 |
293800060 |
Loctite 243, 10 ml |
| 32 |
204470538 |
Sensor Support |
| 33 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 35 |
293710031 |
ELECTRIC CONNECTION - Call your local BRP dealership |
| 36 |
295500108 |
Paddle Wheel Kit |
| 37 |
278000222 |
Male Terminal |
| 38 |
278000218 |
Wire Seal |
| 39 |
208551060 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 40 |
278000416 |
SEAL WASHER - Call your local BRP dealership |
| 41 |
293710032 |
LOCKING NUT - Call your local BRP dealership |
| 42 |
278000217 |
Female Housing, 2 Circuits |
| 43 |
204471431 |
Bilge Pump |
| 44 |
204470715 |
Ground Post |
