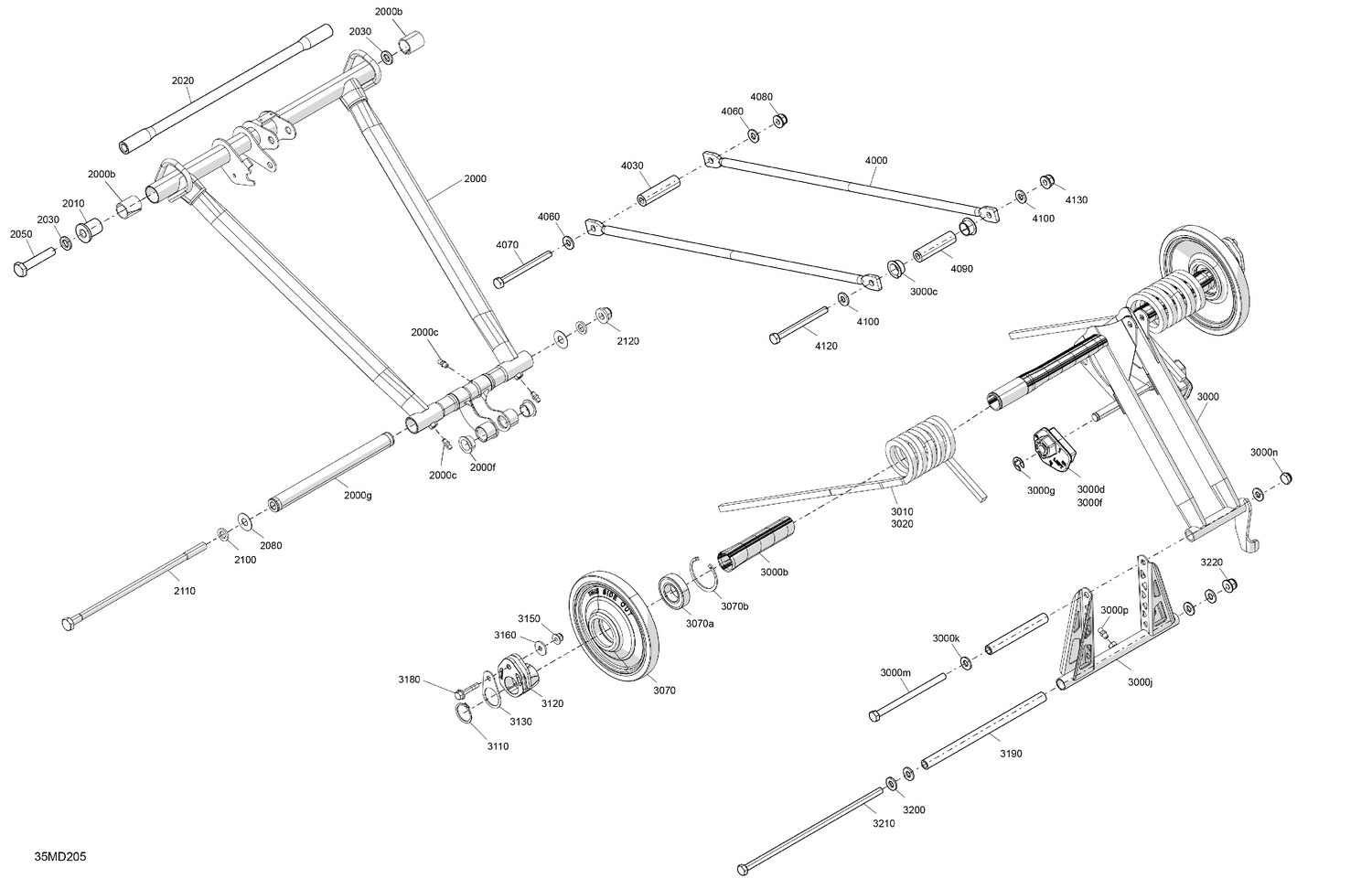

05- Suspension - Rear - Upper Section
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 2000b | 503191556 | Extended Bushing |
| 2000c | 408200700 | Grease Fitting |
| 2000f | 503191555 | Swivel Bushing |
| 2000g | 503196972 | Lower Shaft |
| 2010 | 503194970 | Bushing |
| 2020 | 503193441 | Upper Shaft |
| 2030 | 250200143 | Flat Washer |
| 2050 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 2080 | 250200032 | Washer |
| 2100 | 503192496 | Washer |
| 2110 | 503193227 | Bolt M10 X 251MM |
| 2120 | 233201466 | Flange Elastic Nut M10 |
| 3000b | 503193218 | Bushing |
| 3000c | 503191555 | Swivel Bushing |
| 3000d | 503191565 | LH Cam Adjuster |
| 3000f | 503191566 | RH Cam Adjuster |
| 3000g | 293370013 | E-Circlip |
| 3000j | 503196517 | Shackle |
| 3000k | 503192494 | Washer |
| 3000m | 250001236 | Hex Screw M8 X 125 |
| 3000n | 232581414 | Hex. Elastic Stop Nut M8 |
| 3000p | 408200700 | Grease Fitting |
| 3010 | 503196941 | LH Torsion Spring |
| 3020 | 503196942 | RH Torsion Spring |
| 3070a | 503193548 | Ball Bearing |
| 3070b | 415129780 | Retaining Ring |
| 3110 | 293370080 | Retaining Ring |
| 3120 | 503196322 | Suspension Support |
| 3130 | 503196335 | Washer |
| 3150 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 3160 | 224061201 | Flat Washer |
| 3180 | 250001219 | Hex Flange Screw M6 X 31 |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503196245 | Acceleration Link Rod |
| 4030 | 503193993 | Axle |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503193993 | Axle |
| 4100 | 503192494 | Washer |
| 4120 | 503193372 | Screw M8 X 90 |
