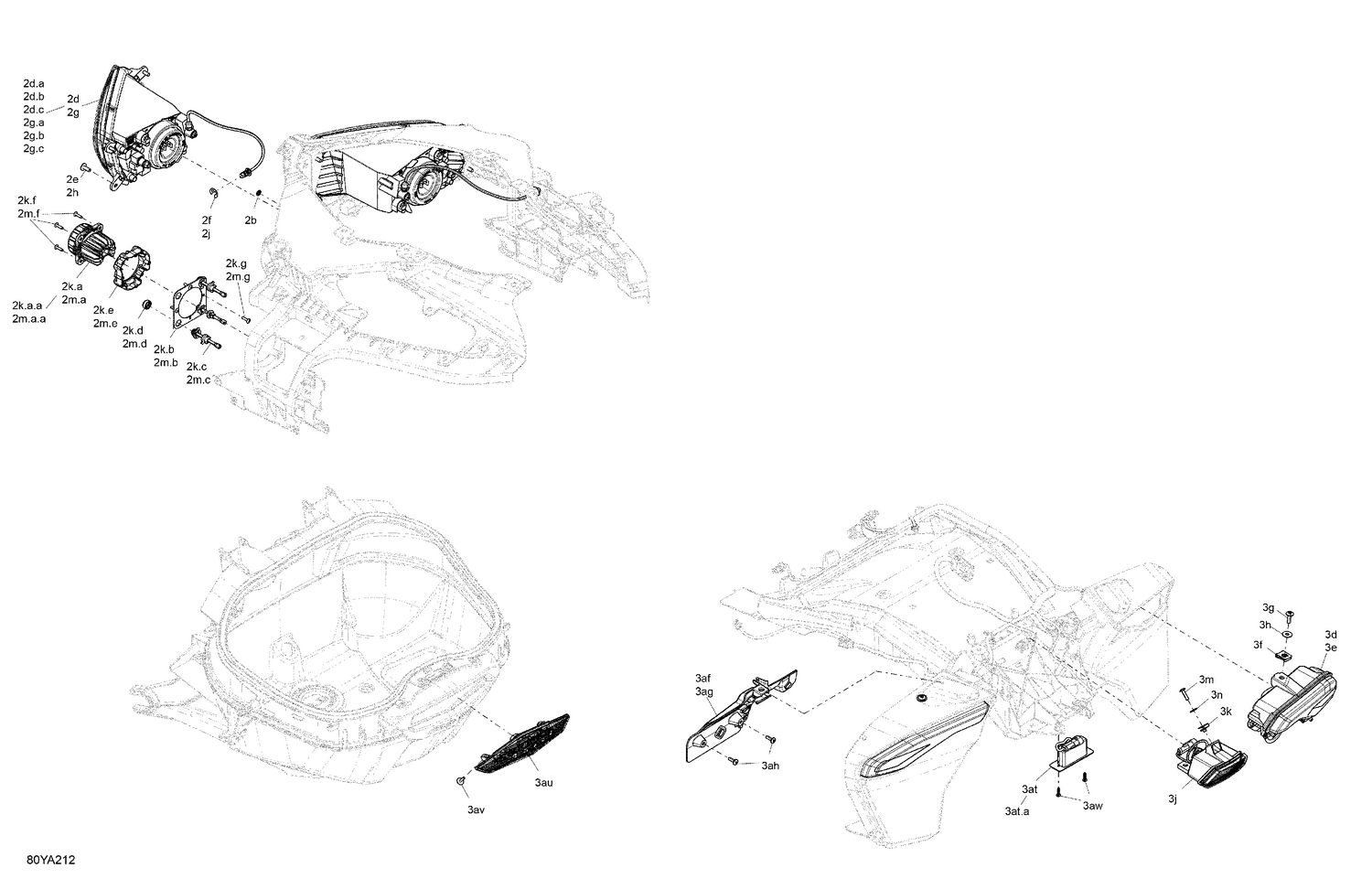

08- Electric - Vehicle Lighting - Australia-Europe-Japan
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2b | 250100034 | Push Nut |
| 2e | 250000721 | Torx Truss Screw M6 X 16 |
| 2f | 293370013 | E-Circlip |
| 2h | 250000721 | Torx Truss Screw M6 X 16 |
| 2j | 293370013 | E-Circlip |
| 3af | 710004643 | LH Connector Support |
| 3ag | 710004644 | RH Connector Support |
| 3ah | 250000720 | Torx Screw K50 X 16 |
| 3au | 520001785 | Non-fonctional Rear Tail-light |
| 3av | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 3d | 710007002 | LH Tail Light |
| 3e | 710007004 | RH Tail Light |
| 3f | 250100208 | Panel Nut M6 X 1.0 |
| 3g | 250000722 | Torx Screw M6 X 20 |
| 3h | 250200164 | Flat washer M6 |
| 3j | 710007005 | Back-Up Light |
| 3k | 250000958 | Panel Nut M5 X 0.8 |
| 3m | 250000715 | Torx Truss Screw M5 X 20 |
| 3n | 234052670 | Stainless Steel Flat Washer M5 |
