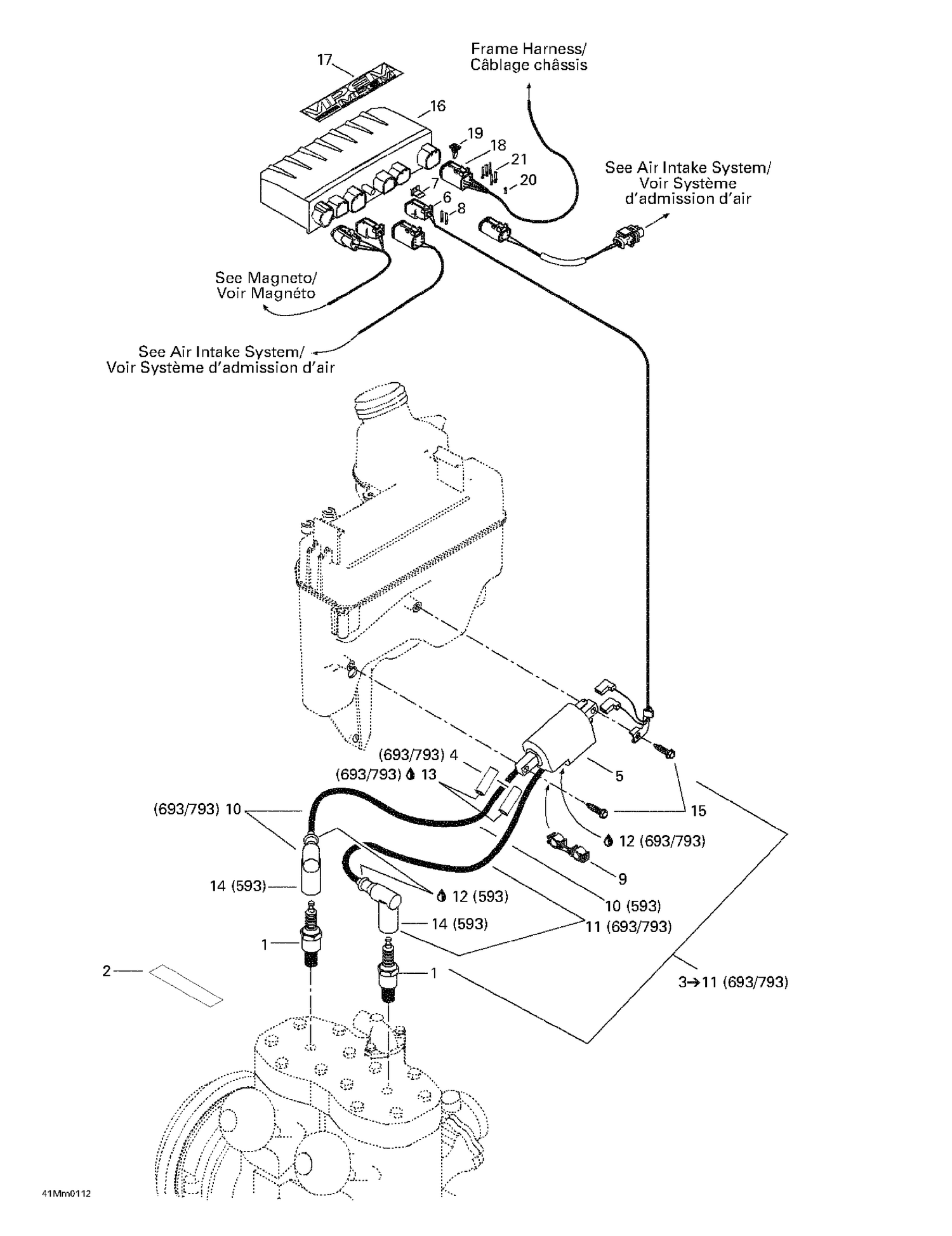

| Ref | Part Number | Description |
|---|
| 1 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 2 |
516000986 |
Spark Plug Decal |
| 6 |
409207300 |
Female Connector, 2 Circuits |
| 7 |
409207100 |
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 8 |
278000632 |
Female Terminal |
| 9 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 12 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 17 |
516000245 |
Electrical Box Decal |
| 18 |
710001540 |
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736. |
| 19 |
278000737 |
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 20 |
293000052 |
Sealing Cap |
