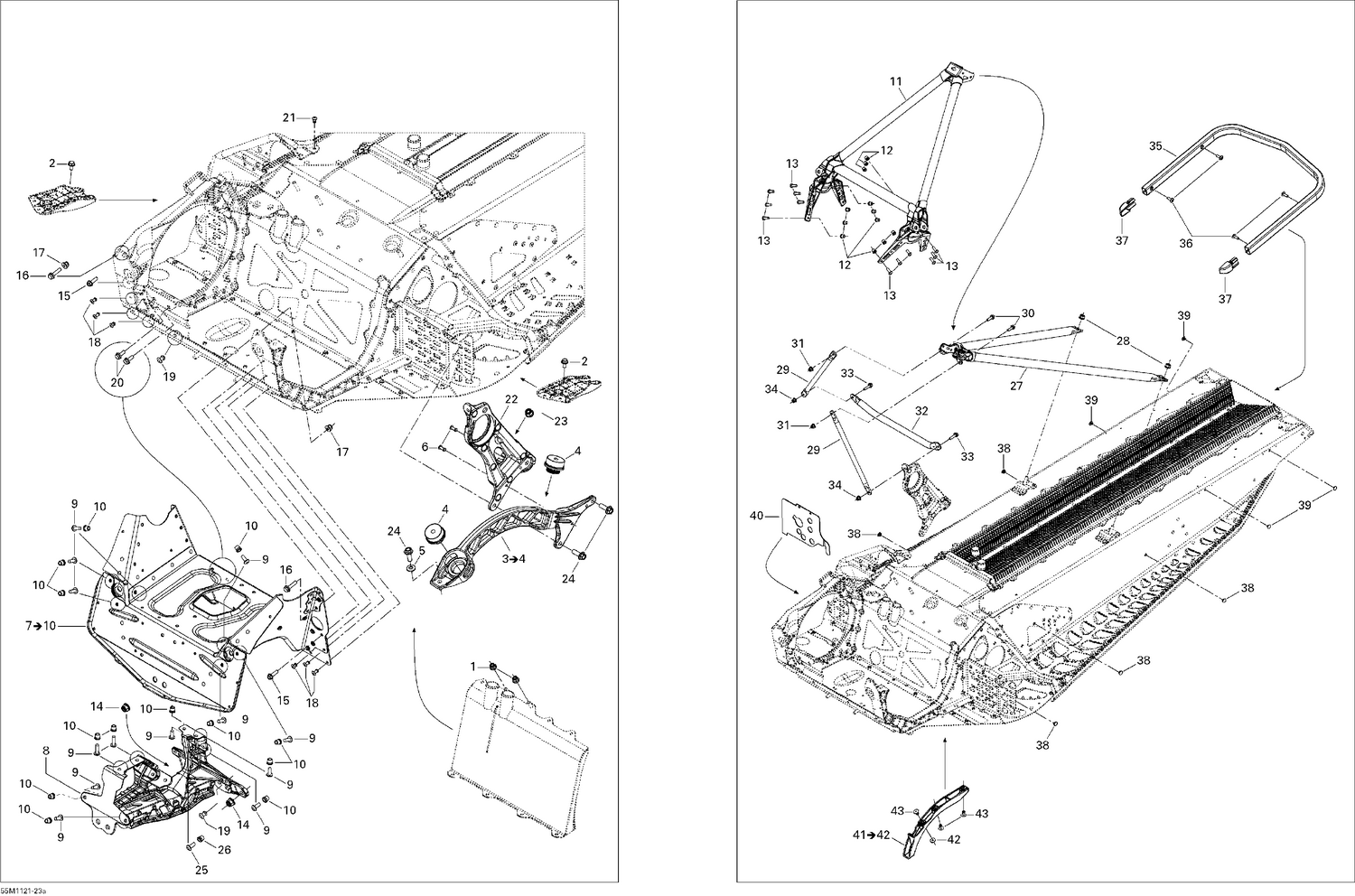

09- Frame and Components LE

09- Frame and Components LE

Parts (39)

RefPart NumberDescription
1 233261414 Hex. Flange Elastic Nut M6 x 1.0
2 207561244 Hex. Flange Screw M6 X 12, Scotch Grip
4 512061516 Vibration Damper This part replaces 512060295.
5 234281474 Conical Spring Washer M8
6 390407200 Pop Rivet 3/16”
8 518327487 Front Suspension Support This part replaces 518325925.
9 207662044 Hex. Flange Screw M6 X 20
10 233261414 Hex. Flange Elastic Nut M6 x 1.0
11 518326970 Front Member This part replaces 518326555.
12 233261414 Hex. Flange Elastic Nut M6 x 1.0
13 207662044 Hex. Flange Screw M6 X 20
14 233281414 Hex. Flange Elastic Nut M8
15 210261650 Hex. Flange Screw M6 X 16 This part replaces 210261680.
16 207662544 Hex. Flange Screw M6 X 25
17 233261414 Hex. Flange Elastic Nut M6 x 1.0
18 293150191 Monobolt Rivet, 4.8 mm
19 293150182 Monobolt Rivet 6.4
20 207661644 Hex. Flange Screw M6 X 16
21 390909100 Avex Rivet
22 518327460 Driven Pulley Support This part replaces 518326192.
23 233281414 Hex. Flange Elastic Nut M8
24 250000351 Hex. Flange Screw M8 X 25, Nylon
25 207662044 Hex. Flange Screw M6 X 20
26 233261414 Hex. Flange Elastic Nut M6 x 1.0
27 518326559 Rear Member
28 233281414 Hex. Flange Elastic Nut M8
29 518325114 Upper Lateral Column Support
30 207662044 Hex. Flange Screw M6 X 20
31 233261416 Elastic Flange Nut M6 X 1.0
32 518326657 Center Column Support
33 207662544 Hex. Flange Screw M6 X 25
34 233261414 Hex. Flange Elastic Nut M6 x 1.0
35 518324980 Clear Rear Bumper
36 250000779 Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402.
37 520000567 Full Moon Cap
38 293730041 Full Moon Dart 8 mm
39 XXX Not Available As Spare Parts
40 518325418 HEAT SHIELD - Call your local BRP dealership
42 517124300 Washer
