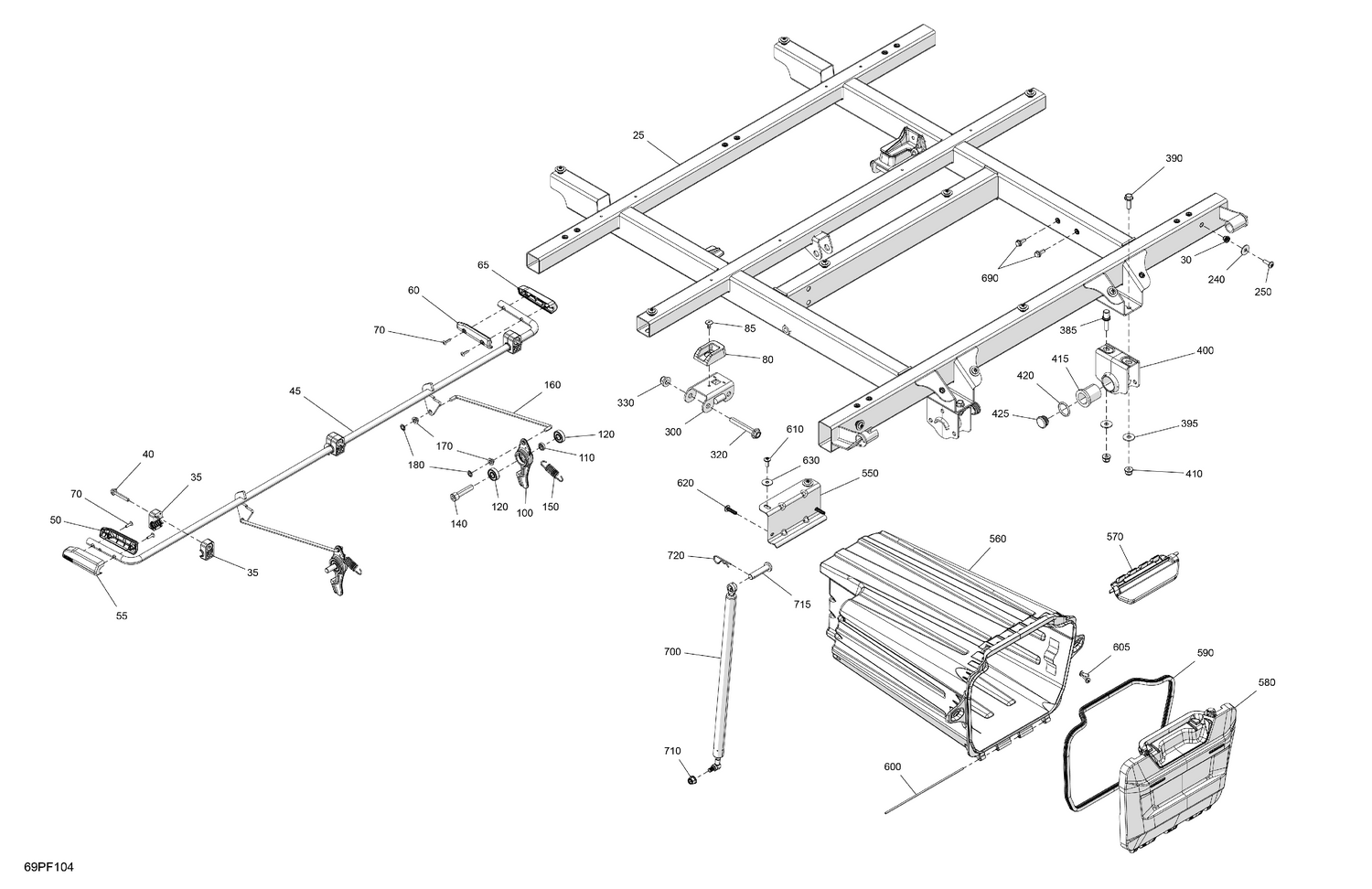

07- Body - Cargo Frame
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 25 | 708304771 | Open Carrier Frame |
| 30 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 35 | 708305237 | Ring Half |
| 40 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip |
| 45 | 708304679 | Latch Handle |
| 50 | 708304700 | LH Interior Molded Latch Handle |
| 55 | 708305012 | LH Exterior Molded Latch Handle |
| 60 | 708304701 | RH Interior Molded Latch Handle |
| 65 | 708305013 | RH Exterior Molded Latch Handle |
| 70 | 250000759 | Torx Truss Pt K40 X 16 |
| 80 | 708304685 | Rubber Stopper |
| 85 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 100 | 708305234 | Retaining Hook |
| 110 | 705601622 | Bushing |
| 120 | 705601974 | Ball Bearing |
| 140 | 250001120 | Socket Screw Nylon Patch M10 X 45 |
| 150 | 705600792 | Brake Pedal Spring |
| 160 | 708305011 | Latch Rod |
| 170 | 293710216 | Bushing Shouldered |
| 180 | 293370190 | Retaining Ring |
| 240 | 250200162 | Flat Washer M6.6 X 22 |
| 250 | 250001257 | Screw Torx M6 X 20 |
| 300 | 708305212 | Retaining Plate |
| 320 | 207607046 | Hex. Flange Screw M10 X 70 |
| 330 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 385 | 250300645 | Protruding Stud M8 X 28 |
| 390 | 207682544 | Hex. Flange Screw M8 X 25 |
| 395 | 234082670 | Stainless Steel Flat Washer |
| 400 | 708304664 | Pivot Support |
| 410 | 233281464 | Elastic Flange Nut M8 |
| 415 | 708303361 | Hinge Bushing |
| 420 | 293300131 | O-Ring |
| 425 | 293000158 | Cap |
| 550 | 708304702 | Box Support |
| 560 | 715011231 | Rear Storage Box Kit |
| 570 | 708304628 | Box Handle |
| 580 | 708304629 | Upper Rear Box Cover |
| 590 | 293200177 | Gasket |
| 600 | 708304880 | Hinge Pin |
| 605 | 250000720 | Torx Screw K50 X 16 |
| 610 | 250001257 | Screw Torx M6 X 20 |
| 620 | 250001231 | Plastite Torx Screw M6.81X25 |
| 630 | 250200162 | Flat Washer M6.6 X 22 |
| 690 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 700 | 708305227 | Shock Absorber |
| 710 | 233281416 | Hex. Elastic Flange Nut M8 |
| 715 | 250400098 | Pin Clevis |
