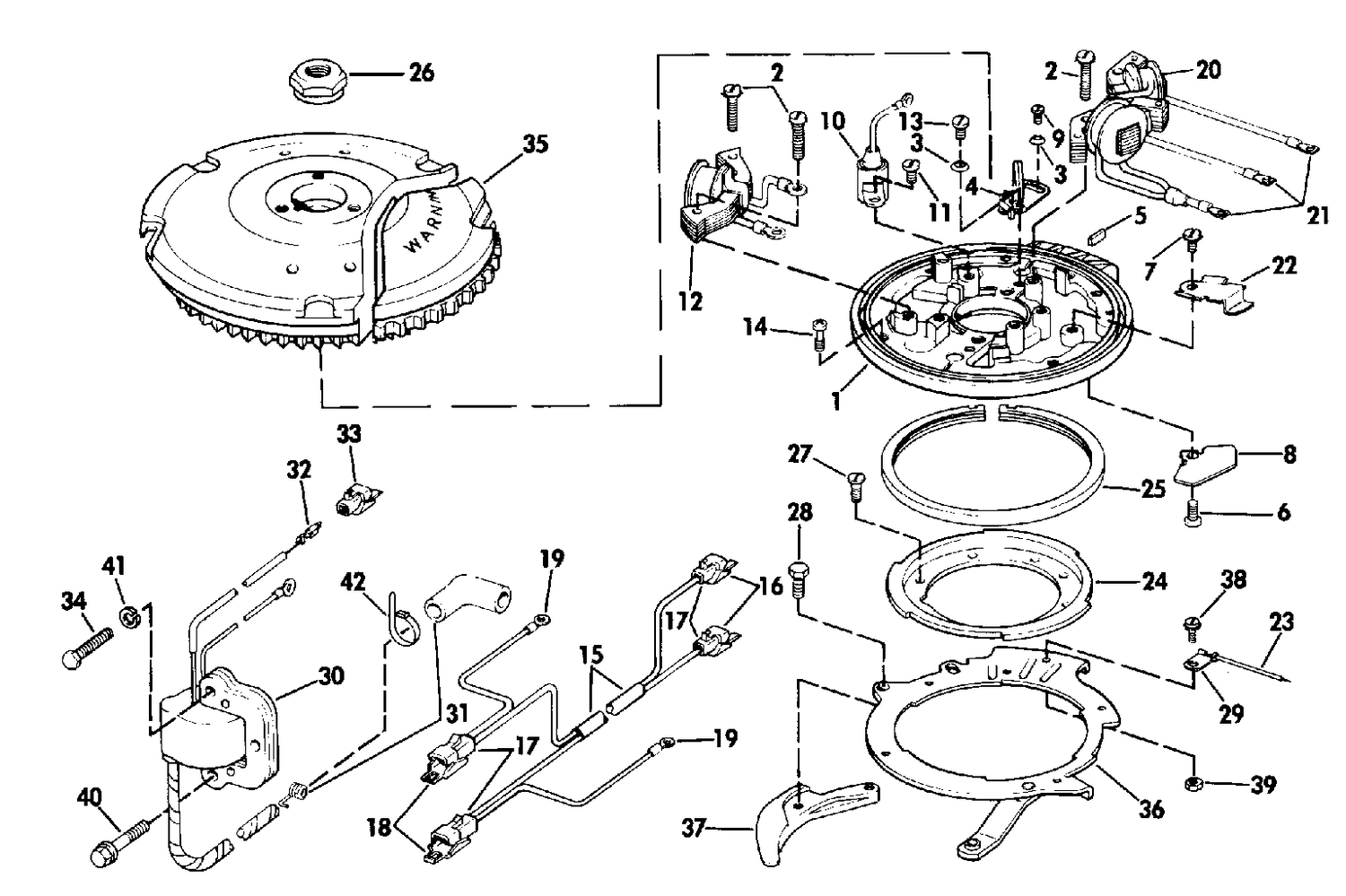

| Ref | Part Number | Description |
|---|
| 1 |
0581217 |
ARMATURE PLATE |
| 2 |
0510397 |
SCREW |
| 3 |
0510208 |
BOW WASHER |
| 4 |
0581207 |
BREAKER ASSY |
| 8 |
0318909 |
COVER |
| 9 |
0510194 |
SCREW |
| 10 |
0581419 |
CONDENSER |
| 12 |
0581202 |
COIL & LAMINATION |
| 14 |
0511195 |
SCREW |
| 15 |
0581360 |
CABLE ASEMBLY, Ignition coil to armature pla |
| 19 |
0510426 |
RING TERMINAL |
| 20 |
0581387 |
STATOR ASSEMBLY |
| 22 |
0318954 |
CLAMP, Ignition coil |
| 23 |
0581391 |
LEAD ASSEBMLY,Ground |
| 23 |
0581392 |
LEAD ASEMBLY, Ground |
| 24 |
0318910 |
SUPPORT, Armature plate |
| 25 |
0322435 |
ROULEMENT, plaque d'allumage vers support This part replaces 0319069. |
| 26 |
0302944 |
NIT,Flywheel |
| 27 |
3086286 |
SCREW, Support to sylinder and crankcase |
| 28 |
0331036 |
VIS, attache de palier This part replaces 0320468. |
| 29 |
0511286 |
TERMINAL, Ground lead |
| 30 |
0581407 |
IGNINTION COIL ASSEMBLY |
| 34 |
0306049 |
SCREW |
| 35 |
0571175 |
FLYWHEEL AND RING GEAR ASSEMBLY |
| 35 |
0581216 |
FLYWHEEL ASSEMBLY |
| 36 |
0386108 |
RETAINER & LINK ASSY |
| 37 |
0318952 |
CAM, Throttle control |
| 37 |
0320434 |
CAM, Throttle control |
| 38 |
0510278 |
SCREW |
| 40 |
0314951 |
SCREEN, Mfld. to c'case |
| 0581385 |
0581385 |
ARMATURE PLATE ASSY |
| 0581386 |
0581386 |
ARMATURE PLATE ASSY |
