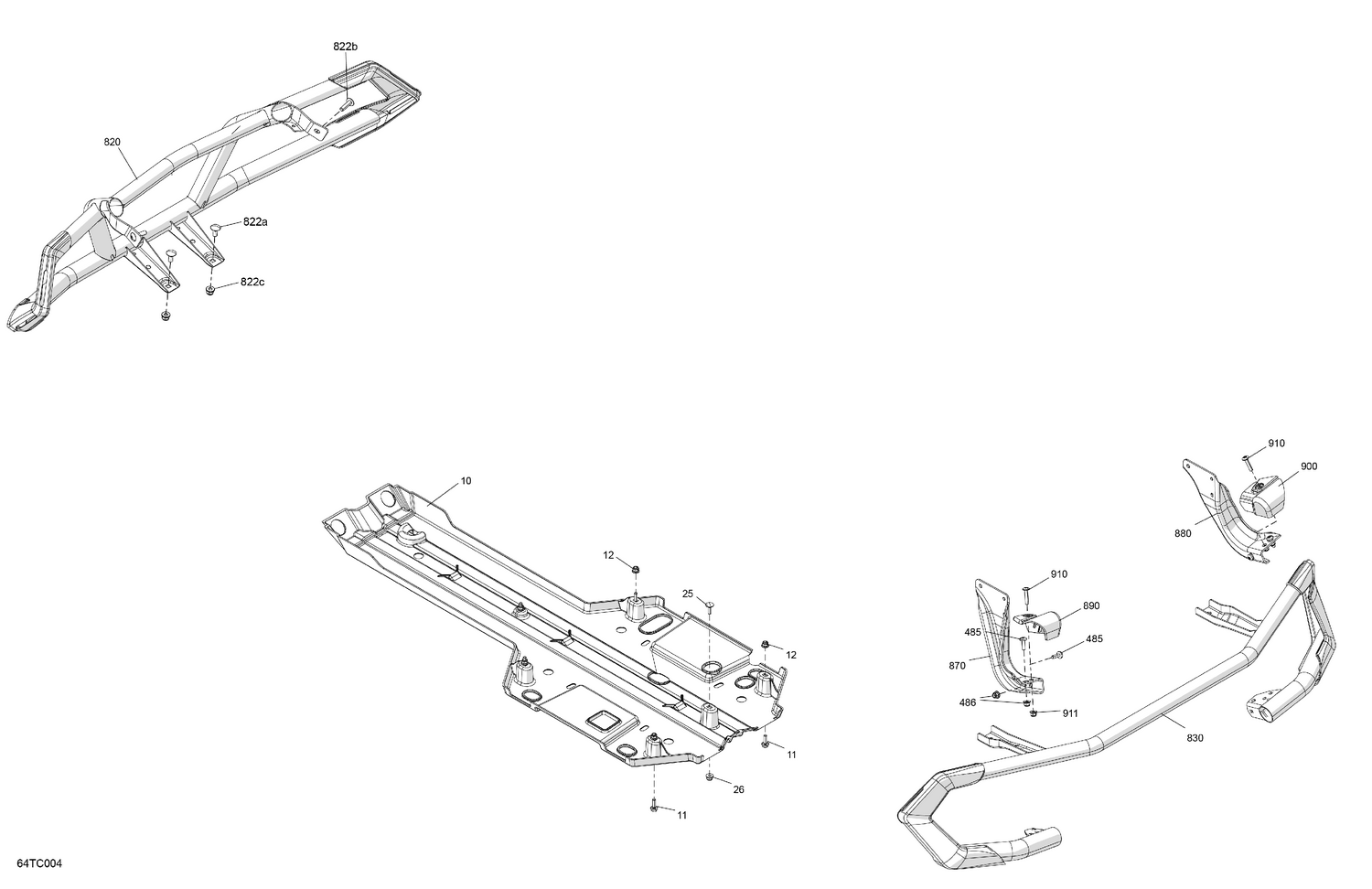

07- Body - Skid Plate and Bumper
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715002374 | Protective Plate Kit |
| 11 | 207662054 | Hex. Flange Screw M6 X 20 |
| 12 | 233261434 | Flange Elastic Nut M6 |
| 25 | 207762044 | Carriage Bolt M6 X 20 |
| 26 | 233261434 | Flange Elastic Nut M6 |
| 485 | 207762044 | Carriage Bolt M6 X 20 |
| 486 | 233261434 | Flange Elastic Nut M6 |
| 822a | 207782044 | Carriage Bolt, M8 X 20 |
| 822b | 250000886 | Torx Screw M8 X 30 |
| 822c | 233281414 | Hex. Flange Elastic Nut M8 |
| 870 | 705008164 | LH Rear Bracket |
| 880 | 705008165 | RH Rear Bracket |
| 890 | 705017676 | LH Rear Bumper Trim |
| 900 | 705017677 | RH Rear Bumper Trim |
| 910 | 250000842 | Stainless, Torx Screw M6 X 30 |
