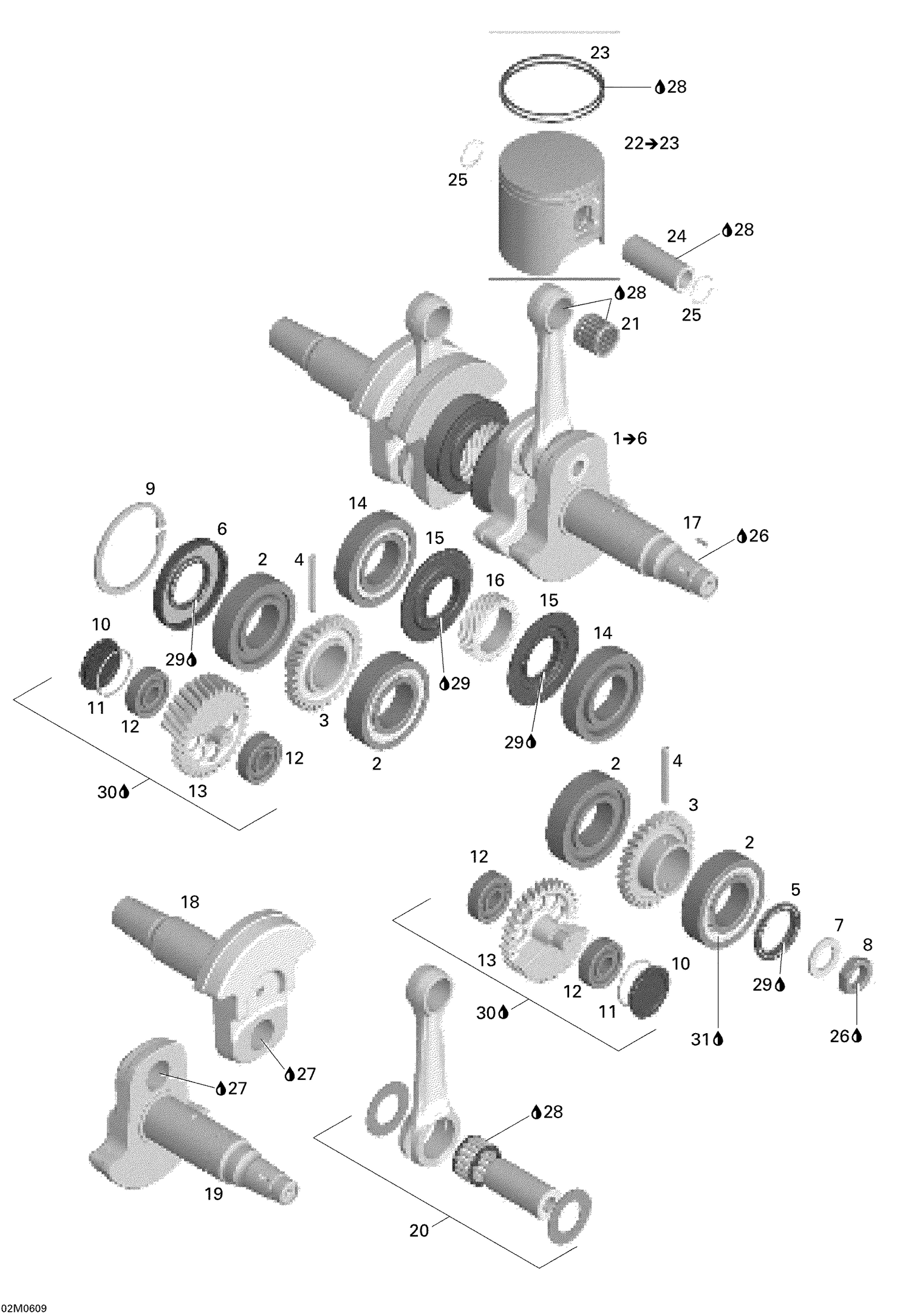

| Ref | Part Number | Description |
|---|
| 2 |
420832672 |
Ball Bearing Sealed, 6208 This part replaces 420832607. |
| 3 |
420834571 |
GEAR BALANCE, 31 TEETH - Call your local BRP dealership |
| 4 |
420929430 |
NEEDLE PIN - Call your local BRP dealership |
| 5 |
420430540 |
OIL SEAL - Call your local BRP dealership |
| 6 |
420931287 |
OIL SEAL - Call your local BRP dealership |
| 7 |
420945759 |
Lock Washer, 22 mm |
| 8 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842234. |
| 9 |
420845700 |
CIRCLIP - Call your local BRP dealership |
| 10 |
420812176 |
COVER BEARING - Call your local BRP dealership |
| 11 |
420950410 |
O-RING - Call your local BRP dealership |
| 12 |
420232292 |
BALL BEARING - Call your local BRP dealership |
| 13 |
420834583 |
BALANCE GEAR, 31 TEETH - Call your local BRP dealership |
| 14 |
420832582 |
BALL BEARING - Call your local BRP dealership |
| 15 |
420931910 |
Oil Seal |
| 16 |
420834560 |
Central Gear, 17 Teeth |
| 17 |
420246015 |
Woodruff Key |
| 18 |
420819147 |
Crankshaft, PTO Side |
| 19 |
420819177 |
Crankshaft, Mag Side |
| 20 |
420889213 |
Rod Repair Kit, Mag Side |
| 20 |
420889214 |
Rod Repair Kit, PTO Side |
| 21 |
420832680 |
NEEDLE BEARING - Call your local BRP dealership |
| 23 |
420815370 |
SEMI-TRAPEZ RING - Call your local BRP dealership |
| 24 |
420916440 |
GUDGEON PIN - Call your local BRP dealership |
| 25 |
420845611 |
CIRCLIP - Call your local BRP dealership |
| 26 |
293800060 |
Loctite 243, 10 ml |
| 27 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 28 |
Not |
Available As Spare Part - Engine Oil, Mineral, API SJ SAE 10W40 |
| 29 |
420899271 |
Petamo Grease, GHY133N, 400 g |
| 30 |
420898351 |
Isoflex Grease |
