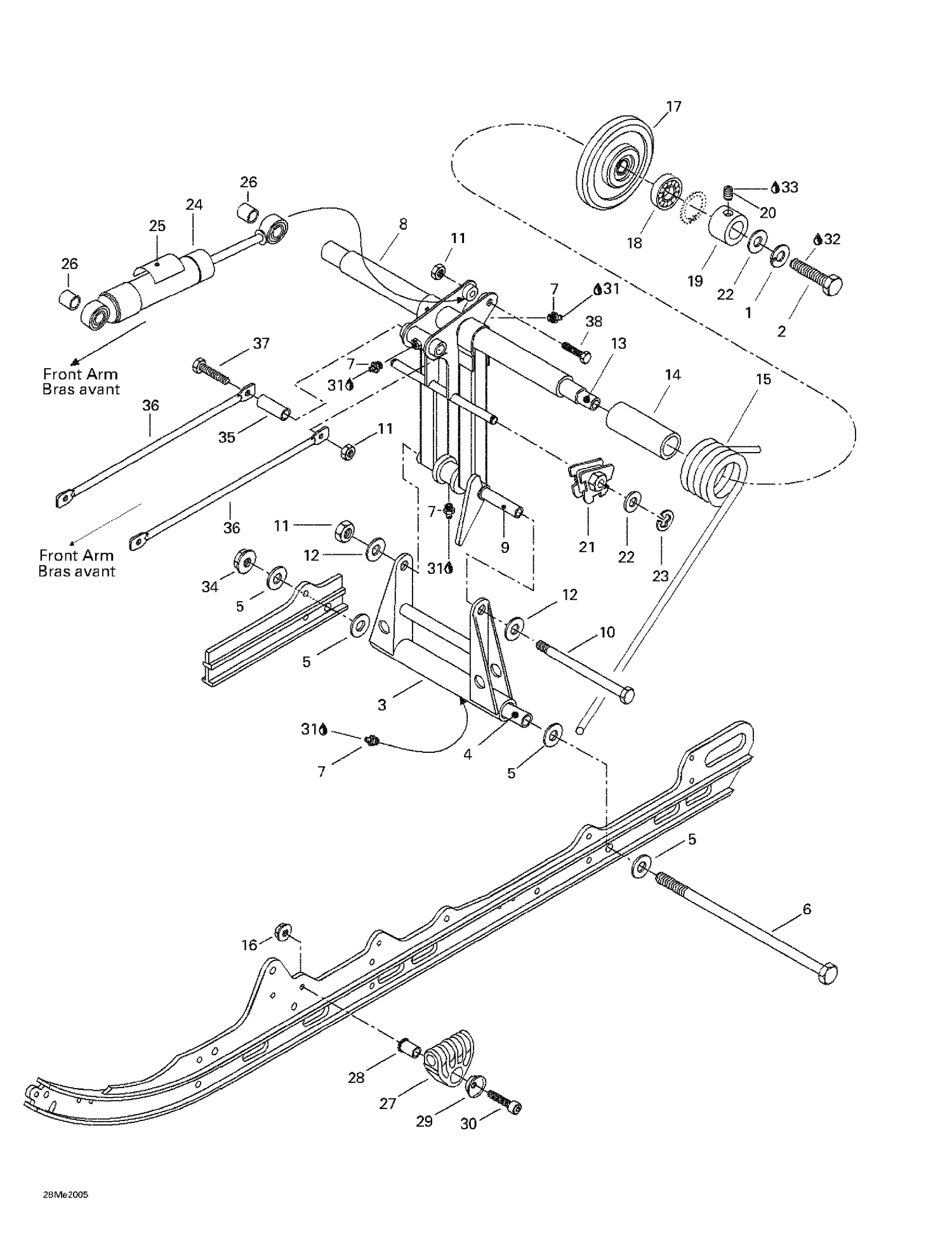

08- Rear Arm
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 234101601 | Helicoidal Lock Washer M10 |
| 2 | 207103544 | Hex. Screw M10 X 35 |
| 3 | 503169200 | Pivot Welded Arm |
| 4 | 503154703 | Lower Axle Pivot |
| 5 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 6 | 503192440 | Bolt M8 X 248mm This part replaces 732601198. |
| 7 | 408200700 | Grease Fitting |
| 8 | 503189230 | Welded Rear Arm |
| 9 | 503144300 | Upper Axle, Pivot Arm |
| 10 | 732601197 | Bolt M8, Short |
| 11 | 232581414 | Hex. Elastic Stop Nut M8 |
| 12 | 234081410 | Flat Washer 8 mm |
| 13 | 503168700 | Rear Cross Shaft |
| 14 | 572080700 | Bushing |
| 15 | 503189342 | RH Spring |
| 16 | 233281414 | Hex. Flange Elastic Nut M8 |
| 18 | 293350115 | Ball Bearing This part replaces 405404500. |
| 19 | 503168800 | Retaining Ring |
| 20 | 206260844 | Socket Set Screw M6 X 8 |
| 21 | 572030800 | LH ADJUST CAM - Call your local BRP dealership |
| 22 | 234001410 | Flat Washer 10 mm |
| 24 | 503189172 | Rear Shock |
| 25 | 516000182 | HPG Decal (Europe) |
| 26 | 414802600 | CUSHION - Call your local BRP dealership |
| 27 | 503189657 | Spring Support This part replaces 503188933. |
| 28 | 503188934 | Spring Guide Axle |
| 29 | 503188929 | CUSHION RETAINER - Call your local BRP dealership |
| 30 | 205084544 | Socket Head Screw M8 X 45 |
| 31 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 32 | 293800060 | Loctite 243, 10 ml |
| 33 | 293800005 | Loctite 271, 10 ml |
| 34 | 233281414 | Hex. Flange Elastic Nut M8 |
| 35 | 503158600 | Tie Rod Shaft |
| 36 | 503187100 | Tie Rod |
| 37 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 503189343 | LH | Spring 503189343 |
| 503189343 | Ressort | Carré GA 503189343 |
| 572030900 | Came | De Réglage Droit - Appelez votre concessionnaire BRP local 572030900 |
| 572030900 | RH | ADJUST CAM - Call your local BRP dealership 572030900 |
