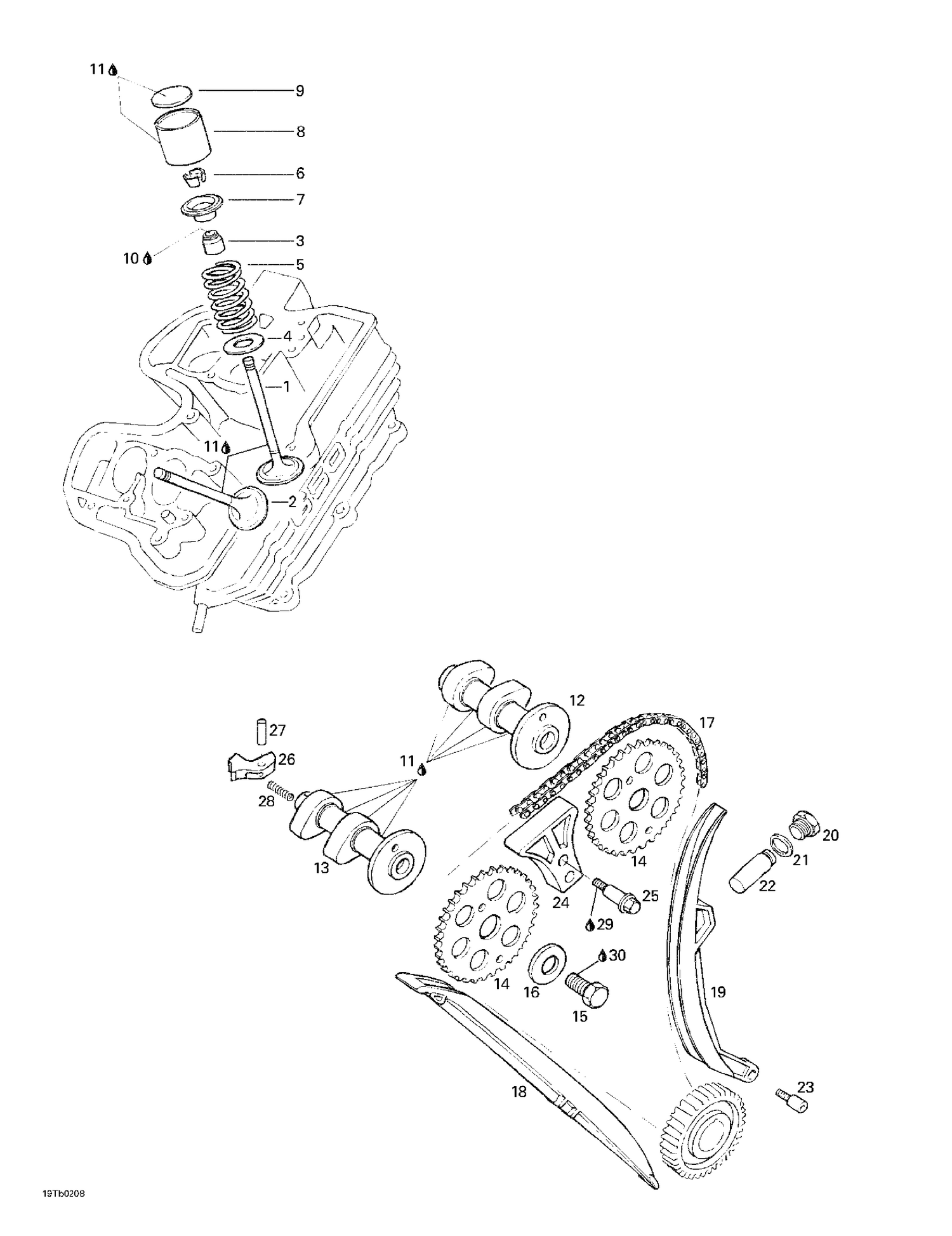

01- Valve
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420253770 | Inlet Valve This part replaces 711253770. |
| 2 | 711253780 | Exhaust Valve |
| 3 | 420230510 | Seal This part replaces 711230510. |
| 4 | 711227982 | Thrust Washer 11,2/28,0/1,0 |
| 5 | 711239290 | Valve Spring |
| 6 | 420253645 | Valve Cotter This part replaces 711253645. |
| 7 | 711253760 | Valve Spring Retainer |
| 8 | 711253545 | Valve Tappet |
| 9 | 711253741 | Shim 2,1 |
| 10 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 11 | Not | Available As Spare Part - Engine Oil, Mineral, API SJ SAE 10W40 |
| 12 | 711220190 | Camshaft-Inlet |
| 13 | 711220200 | Camshaft-Exhaust |
| 14 | 711634280 | Timing Gear (34 Teeth) |
| 15 | 207102044 | HEX. SCREW M10 X 20 - Call your local BRP dealership |
| 16 | 711627040 | Washer |
| 17 | 420297891 | CHAIN-TIMING - Call your local BRP dealership This part replaces 711297890. |
| 18 | 711236230 | Chain Guide |
| 19 | 711236221 | Chain Tension Guide |
| 20 | 711552277 | Hex. Screw M18 x 10 |
| 21 | 420552280 | Crush Washer This part replaces 711552280. |
| 22 | 415129408 | Chain Tensioner This part replaces 711236250. |
| 23 | 711240940 | Bearing Screw M6 |
| 24 | 711236240 | Chain Guide Bow |
| 25 | 420240960 | DISTANCE SCREW M6 X 16 - Call your local BRP dealership This part replaces 711240960. |
| 26 | 711231044 | Centrifugal Weight |
| 27 | 711232910 | Peg |
| 28 | 711239920 | Spring |
| 29 | 293800060 | Loctite 243, 10 ml |
