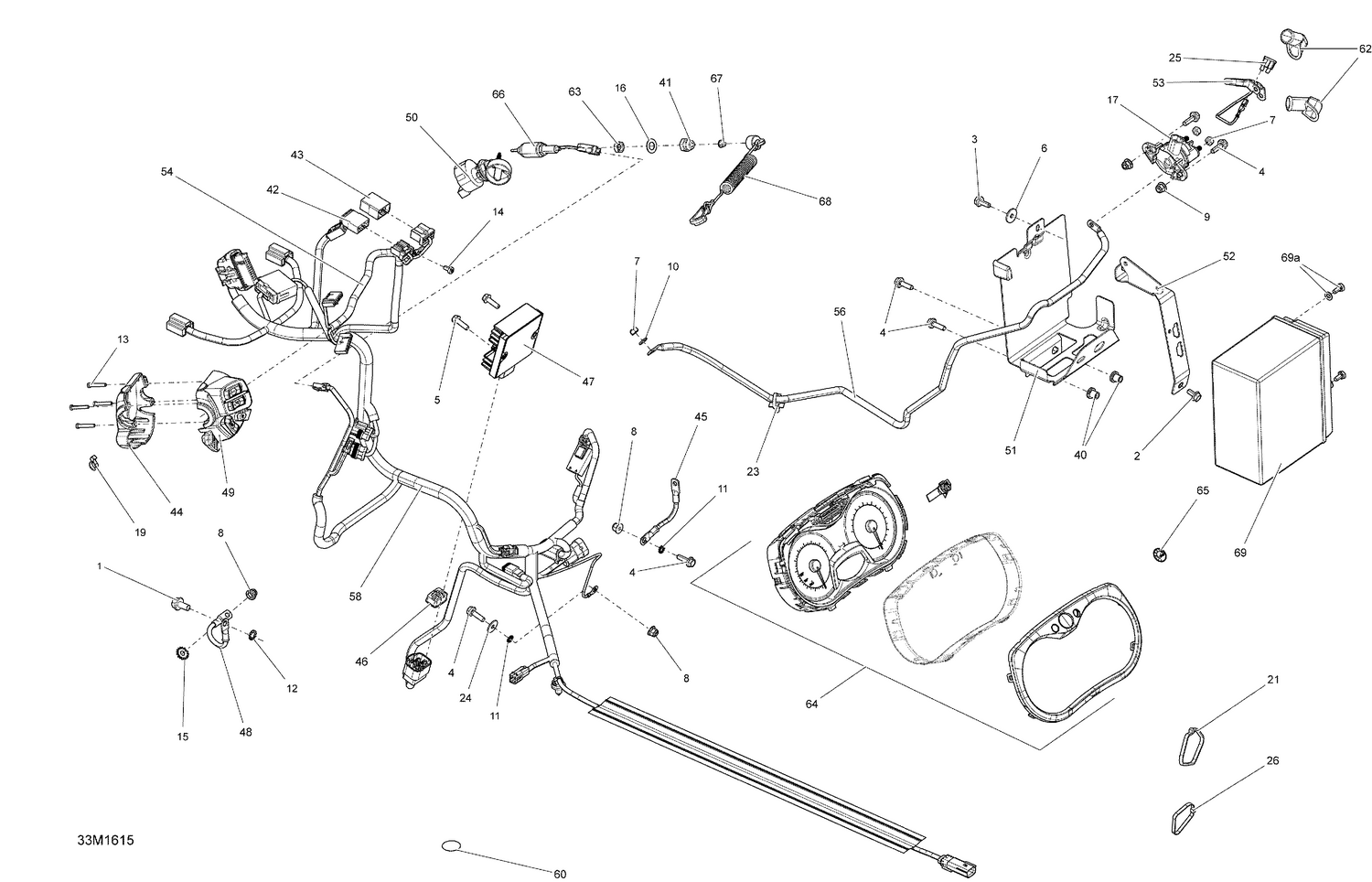

10- Electrical System
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 2 | 207661244 | Hex. Flange Screw M6 X 12 |
| 3 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 |
| 5 | 210262040 | Hex. Flange Screw M6 X 20 |
| 6 | 224061201 | Flat Washer |
| 7 | 232561434 | Elastic Stop Nut M6 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 9 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 10 | 234061410 | Flat Washer 6 mm |
| 11 | 234461608 | External Serrated Lock Washer 6 mm |
| 12 | 234481608 | Serrated Lock Washer 8 mm |
| 13 | 250000263 | Torx Screw #8-18 |
| 14 | 250000690 | Pan Screw Forming, 7500C |
| 15 | 250200041 | Lock Washer Serrated M6 |
| 16 | 250200084 | Flat Washer |
| 17 | 278003012 | Starter Relay |
| 18 | 293750001 | Tie Wrap 94 mm |
| 19 | 293750002 | Tie Wrap 142 mm |
| 21 | 293750008 | Tie Wrap 368 mm |
| 23 | 293750009 | Tie-Rap 173 mm |
| 24 | 250200082 | Flat Washer |
| 25 | 410917200 | Fuse, 30 Amperes |
| 26 | 414115200 | Tie-Rap 180 mm |
| 40 | 293450275 | Insert |
| 42 | 515175662 | Male Terminal Housing, 6 Circuits |
| 43 | 515175817 | Male Terminal Housing, 8 Circuits |
| 44 | 515175926 | Switch Housing Plate |
| 45 | 515176358 | Ground Wire |
| 46 | 515176681 | Lock |
| 47 | 515176699 | Voltage Regulator |
| 48 | 515176745 | Ground Wire |
| 49 | 515177021 | LH Housing |
| 50 | 515177063 | Ignition Swirch |
| 51 | 515177264 | Battery Support |
| 52 | 515177266 | Battery Strip |
| 53 | 515177576 | Fuse Battery Wire |
| 54 | 515177609 | Steering Wiring Harness |
| 56 | 515177730 | Battery/Starter Wire |
| 58 | 515177979 | Main Harness |
| 60 | 518325560 | Adhesive Patch |
| 62 | 710000495 | Protector Cap |
| 63 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 64 | 415129348 | Gauge Ring |
| 64 | 415129349 | Lens |
| 64 | 415129355 | Speedometer Button |
| 64 | 515177279 | Indicator |
| 65 | 516006224 | BRP Logo 20MM x 2MM |
| 66 | 515175653 | Brake Switch |
| 67 | 570151100 | Plunger Cap |
| 68 | 515178283 | Cap Ass'y This part replaces 515178145. |
| 69 | 410301203 | Battery YUASA YTX20L |
