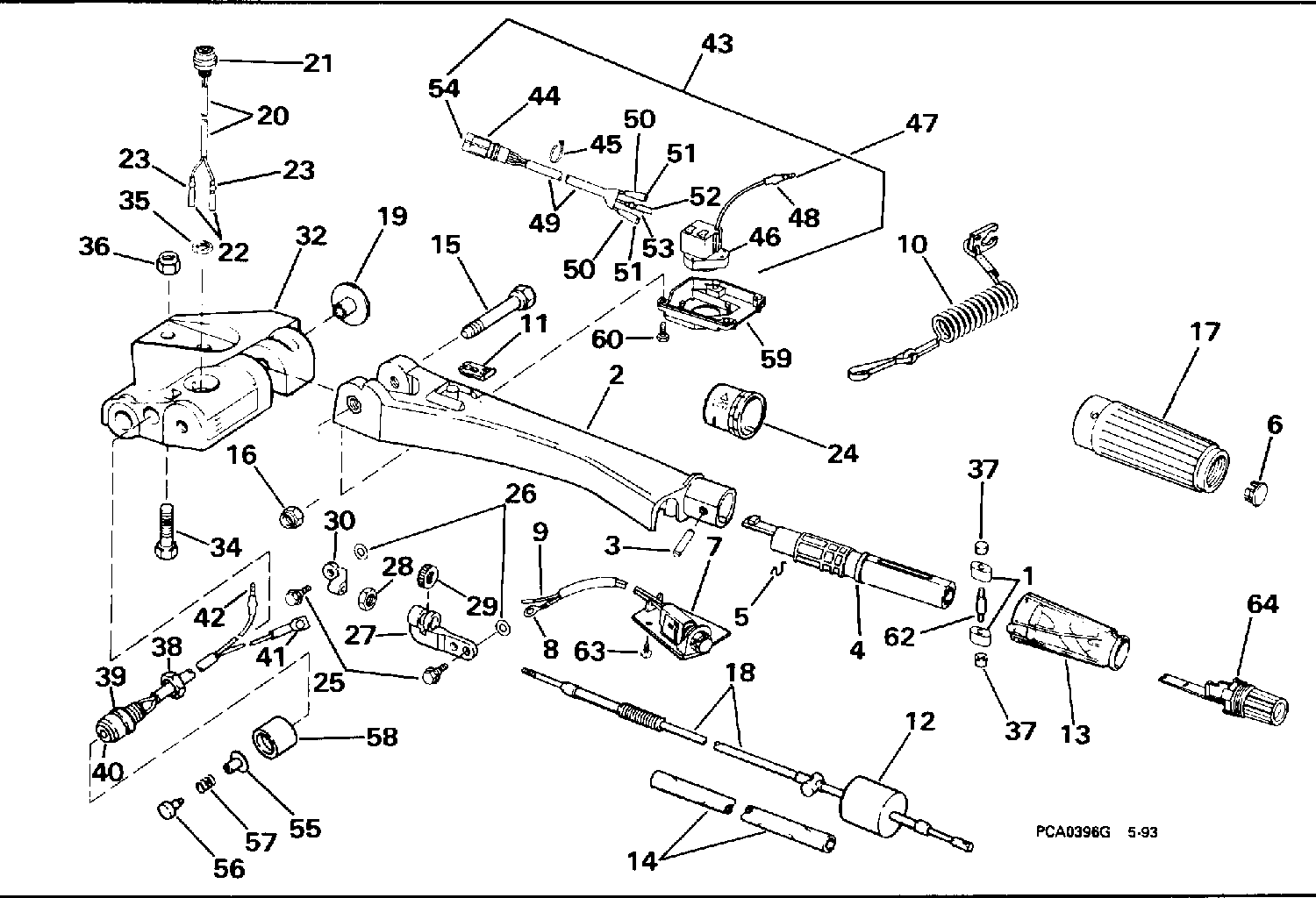

| Ref | Part Number | Description |
|---|
| 7 |
0585133 |
INTERRUPTEUR D'ARRÊT This part replaces 0584470. |
| 14 |
0512258 |
GAINE, tressée - 3/16 x 32" |
| 18 |
0397002 |
THROTTLE CABLE ASSY. |
| 20 |
0584400 |
SWITCH & LEAD ASSY., Primer |
| 27 |
0397129 |
CONNECTOR KIT |
| 30 |
0325715 |
CONNECTOR, Throttle cable |
| 32 |
0355221 |
STEERING ARM BRACKET, Tiller This part replaces 0340779. |
| 39 |
0584538 |
SWITCH ASSY., Start |
| 43 |
0583934 |
CABLE & HORN, VRO |
| 46 |
0585992 |
HORN This part replaces 0583931. |
| 49 |
0583935 |
CABLE ASSEMBLY |
| 57 |
0313584 |
SPRING |
| 59 |
0334942 |
COVER, Cable & horn |
