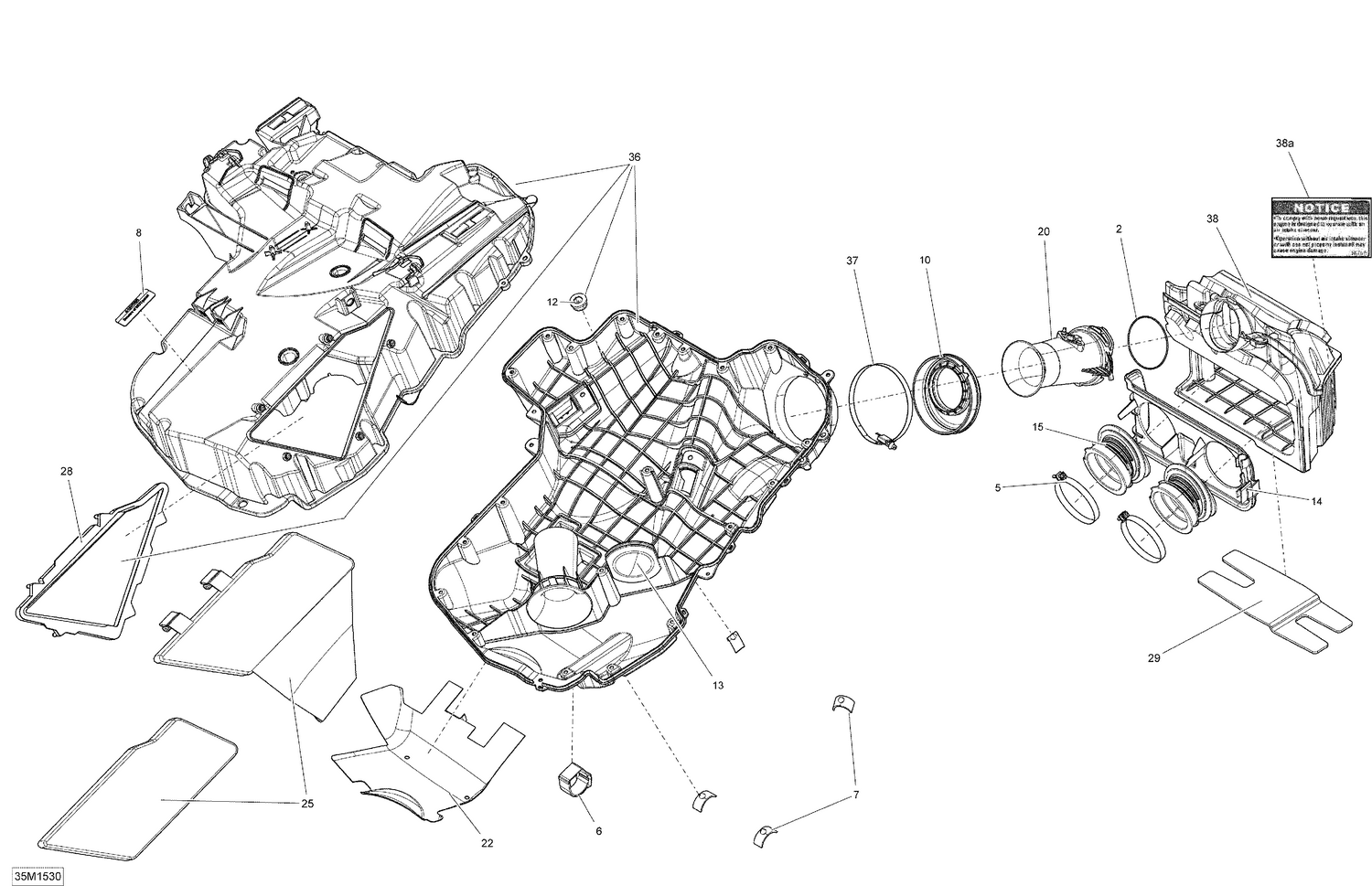

02- Air Intake System _35M1530
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 293300115 | O-Ring |
| 5 | 508000346 | Gemi Clamp |
| 6 | 508000820 | Velcro Strip This part replaces 508000532. |
| 7 | 508000537 | Stopper |
| 8 | 516005280 | Caution Decal Hot Parts |
| 9 | 508000546 | Air Filter |
| 10 | 508000548 | Boot |
| 12 | 508000574 | Grommet |
| 13 | 508000590 | Cap |
| 14 | 508000613 | Plate Adapter |
| 15 | 508000614 | Air Intake Adapter |
| 20 | 508000662 | Flute |
| 22 | 508000793 | HEAT SHIELD - Call your local BRP dealership |
| 25 | 508000698 | FILTER - Call your local BRP dealership |
| 28 | 508000700 | Air Filter |
| 29 | 508000739 | Insulated Foam |
| 36 | 508000780 | Secondary Chamber Ass'y |
| 37 | 514052983 | Norma Gear Clamp |
| 38 | 508000660 | Primary Chamber Ass'y |
