Parts Catalog

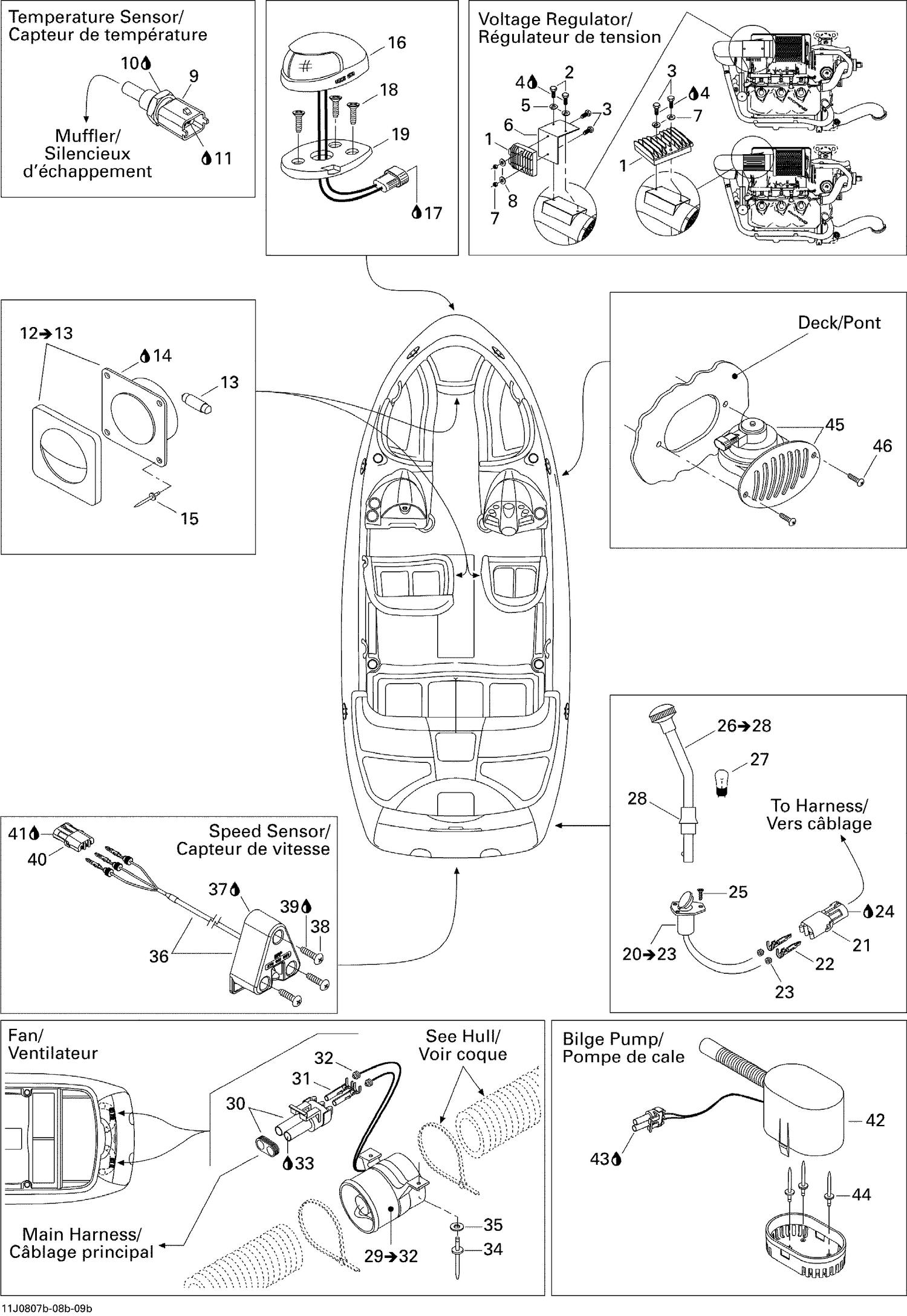

10- Electrical Accessories 2

Parts (40)

Ref	Part Number	Description
1	710001103	Voltage Regulator
2	204100137	TAPPING SCREW 1/4-20 X 1/2 - Call your local BRP dealership
3	204100226	HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership
4	293800060	Loctite 243, 10 ml
5	211200025	Lock Washer 1/4”
6	204471277	Rectifier Bracket
7	212000005	NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
8	211200019	FLAT WASHER - Call your local BRP dealership
9	278002895	Temperature Sensor This part replaces 278001016.
11	219704453	Was 293550004 Dielectric Grease, 150 g
13	204470081	BULB - Call your local BRP dealership
14	219704453	Was 293550004 Dielectric Grease, 150 g
15	293150032	RIVET_POP 1/8 X ,487 - Call your local BRP dealership
16	204470372	Front Lamp
17	219704453	Was 293550004 Dielectric Grease, 150 g
18	209642560	PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
19	204470072	FRONT LAMP SUPPORT - Call your local BRP dealership
21	278000217	Female Housing, 2 Circuits
22	278000222	Male Terminal
23	278000218	Wire Seal
24	219704453	Was 293550004 Dielectric Grease, 150 g
25	209943260	Phillips Tapping Screw M4.2 X 32
27	204470053	Bulb
28	204470350	COLLAR - Call your local BRP dealership
30	278000220	Male Connector, 2 Circuits
31	278000223	Female Terminal
32	278000218	Wire Seal
33	219704453	Was 293550004 Dielectric Grease, 150 g
34	293150008	Pop Rivet 3/16" This part replaces 293150011.
35	234052600	Flat Washer 5 mm, Stainless
36	278001993	Speed Sensor
37	296000309	Silicone Sealant 51388, 300 ml
38	211000021	PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
39	296000309	Silicone Sealant 51388, 300 ml
40	278000281	Female Terminal Housing, 3 Circuits
41	219704453	Was 293550004 Dielectric Grease, 150 g
42	204471431	Bilge Pump
43	219704453	Was 293550004 Dielectric Grease, 150 g
44	293150029	RIVET_POP 5/32 - Call your local BRP dealership
45	204471160	Horn, Stainless
