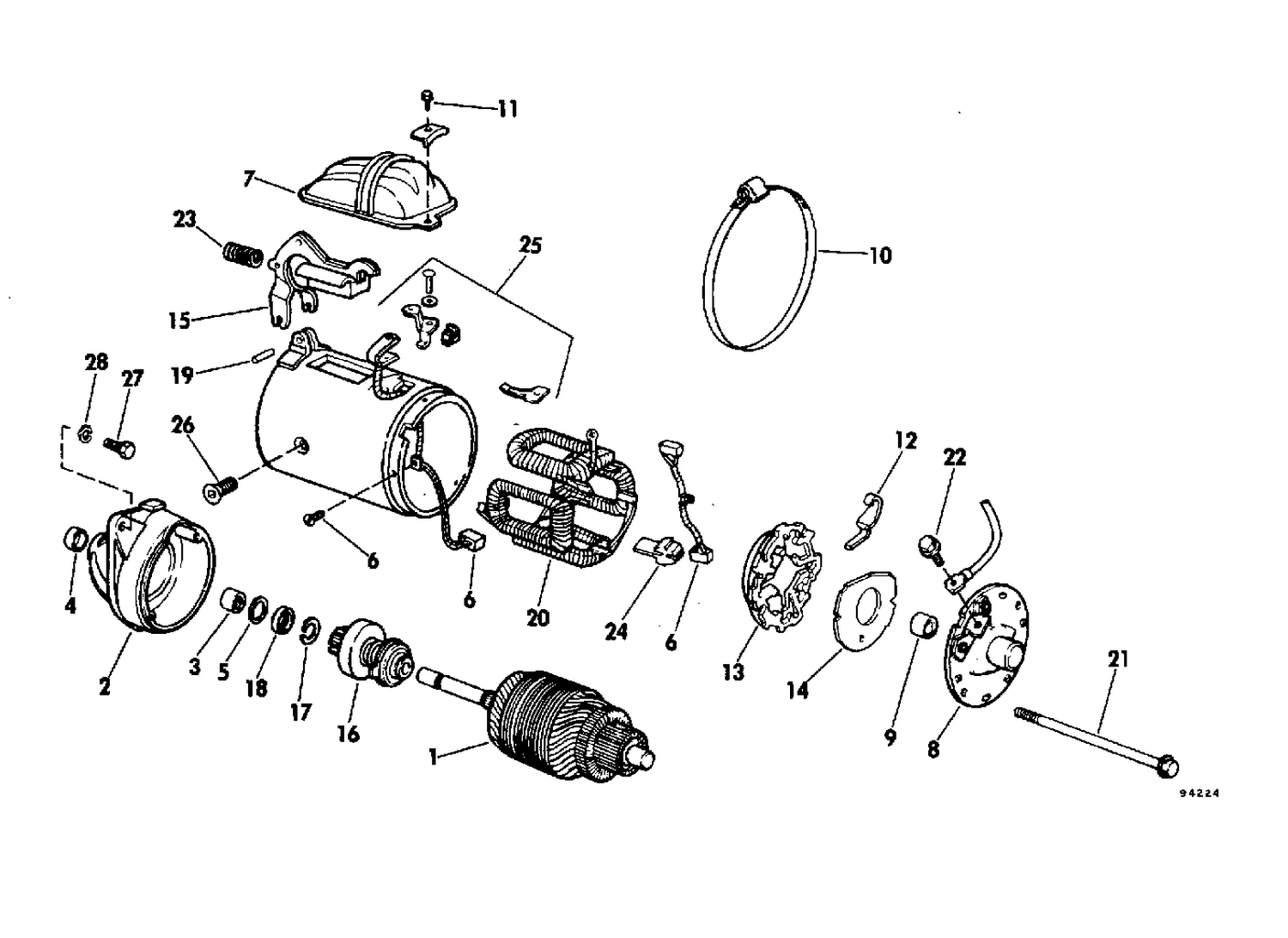

| Ref | Part Number | Description |
|---|
| 1 |
D7AZ-11005-A |
ARMATURE |
| 2 |
D5FF-11130-A |
B .HOUSING ASSEMBLY,Drive end |
| 3 |
D0AZ-11135-B |
BEARING,Drive housing |
| 4 |
D0AZ-11K013- |
A ..SEAL,Drive end |
| 5 |
C6VY-11036-A |
WASHER, Arm thrust, steel |
| 6 |
D7AZ-11057-A |
BRUSH SET |
| 7 |
D8FF-11058-A |
A .COVER & GASKET ASSY,Plunger |
| 8 |
D7AZ-11049-A |
PLATE ASSEMBLY,Brush end |
| 9 |
D3AZ-11052-A |
BUSHING |
| 10 |
383988-S |
BAND, Plunger cover |
| 11 |
388015-S100 |
SCREW,Cover |
| 12 |
D7AZ-11059-A |
SPRING, Brush |
| 13 |
D7AZ-11061-A |
HOLDER,Brush |
| 14 |
D7AZ-11062-A |
INSULATOR,Brush holder |
| 15 |
D7AZ-11067-A |
LEVER,Drive |
| 16 |
D6PZ-11350-B |
DRIVE ASSEMBLY |
| 17 |
C2DZ-11222-A |
RING, Drive stop |
| 18 |
D6AZ-11223-A |
RETAINER, Drive stop ring |
| 19 |
378982-S |
PIN,Lever to hsg |
| 20 |
D7AZ-11082-A |
FIELD COIL |
| 21 |
C3AZ-10120-A |
THRU BOLT |
| 22 |
385022-S |
SCREW & WASHER,Cable to plate |
| 23 |
C1VF-11103-A |
SPRING, Plunger return |
| 24 |
D7AZ-11A120- |
A .GROMMET |
| 25 |
D7AZ-11134-A |
POINT KIT |
| 26 |
68-10044 |
SCREW, Pole piece |
| 27 |
0310896 |
SCREW |
| 0981821 |
0981821 |
STARTER MOTOR ASSEMBLY |
